B1 Fire Rating Closed Cell PIR Pipe Insulation Polyisocyanurate Foam Pipe Lagging
| Place of Origin | Changzhou, Jiangsu,China |
|---|---|
| Brand Name | Kaff Rees |
| Certification | SGS |
| Minimum Order Quantity | 20 Cubic Meters |
| Price | Negotiable |
| Packaging Details | Carton packaging/Wooden case packaging/according to the requirements |
| Delivery Time | Negotiable |
| Payment Terms | EXW/FOB/CIF |
| Supply Ability | According to products |
Product Details
| Name | Polyisocyanurate Rigid Foam Pipe Insulation | Cold Insulation Material | Polyisocyanurate PIR |
|---|---|---|---|
| Material | Polyisocyanurate Foam | PH Value | 5.5-7 |
| Service Temp. | -196～+120℃ | Application | Low Temperature Industries |
| Chemical Resistance | Resistant To Most Chemicals And Solvents | Insulation Type | Pipe Insulation |
| Fire Performance | B1 Fire Rating | Uv Resistance | Excellent |
| Highlight | Closed Cell Polyisocyanurate Foam Pipe Lagging,B1 Fire Rating PIR Pipe Insulation,Closed Cell PIR Pipe Insulation |
||
Product Description

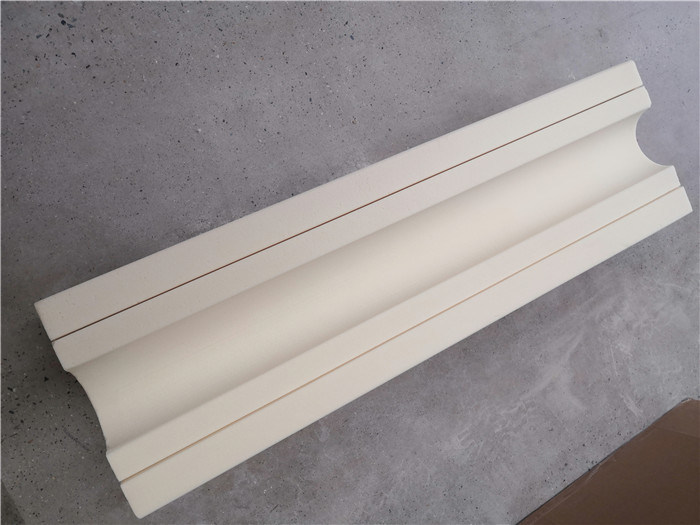

B1 Fire Rating Closed Cell PIR Pipe Insulation Polyisocyanurate Foam Pipe Lagging
Application
PIR pipe insulation is designed for pipelines and equipment operating between -196℃ to +150℃. It provides optimal thermal insulation for cryogenic applications including Liquefied Nitrogen (LN₂, -196℃), Liquefied Natural Gas (LNG, -162℃), and Liquefied Ethylene (LEG, -104℃).
Product Introduction
Polyisocyanurate (PIR) is a high-performance foam material created through the polymerization of isocyanate and polyether. Offering superior physical and fire resistance properties compared to polyurethane, PIR features low thermal conductivity and excellent dimensional stability as an organic rigid thermal insulation material.
Key Features
- Fire resistance rated B1
- Operating temperature range: -196℃ to +120℃
- Exceptional dimensional stability
- Customizable cutting in panels and pipes to meet specific requirements
Technical Properties
| Item | Unit | Technical Data | Test Mode |
|---|---|---|---|
| Density | kg/m³ | ≥40 | ASTM D1622 / ISO 845 |
| Thermal Conductivity | W/(m*K) |
≤0.035 (+100℃) ≤0.029 (+50℃) ≤0.025 (+10℃) ≤0.024 (0℃) ≤0.023 (-50℃) ≤0.022 (-100℃) ≤0.017 (-150℃) ≤0.016 (-170℃) |
ASTM C177 |
| Compressive Strength | kPa |
+23℃: ≥200 -165℃: ≥280 |
ASTM D 1621 |
| Tensile Strength | kPa |
+23℃: ≥320 -165℃: ≥265 |
ASTM D 1623 |
| Flame Spread Index | ﹤25 | ASTM E84 | |
| Oxygen index | ≥30 | GB/T 2406.2 | |
| Water Absorption by Vol. | % | ≤2 | ASTM D2842 |
| Water Vapor Permeability | ng/(Pa*s*m) | ≤5.5 | ASTM E96 |
| Closed Cell Ratio | % | ≥95 | ASTM D6226 |
| Lineal Thermal Expansion Coefficient | m/(m*K) | ≤70×10⁻⁶ | ASTM D696 |
| PH Value | 5.5-7 | ASTM C871 | |
| Chloride Content | ppm | ≤60 | GB/T 11835 |
| Elastic Modulus | MPa | ≤16 | ASTM D1623 |
| Service Temp. | ℃ | -196～+120 |
Typical PIR Insulation System Structure
- PIR Shell: inner layer + middle layer (if necessary) + outer layer
- Secondary Vapor Barrier: PAP aluminum foil
- Main Vapor Barrier: mastic + fiberglass meshes + mastic
- Metal Protective Layer: aluminum alloy plate, stainless steel plate, aluminized steel plate, GRP
- Sealant: HS-10-02, Foster 95-50, etc
- Strapping Material: stainless steel tape, sub sensitive tape
Packing and Storage
- Store in dry, lightproof, shady, and ventilated conditions away from heat sources and direct sunlight
- Inner packaging: black polyethylene bags; Outer packaging: protective cartons
Cautions
- Handle PIR insulation gently - avoid rolling, collision, and heavy pressure during transport
- Secure PIR insulation to pipes and equipment using glass fiber tape or steel bands
- Use saws for cutting during installation
