Easy Cutting PIR Pipe Insulation , PIR Pipe Section Long Service Life

Brand Name:	Kaff Rees
MOQ:	20 Cubic Meters
Price:	Negotiable
Payment Terms:	EXW/FOB/CIF
Supply Ability:	According to products

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou, Jiangsu,China

Certification:

SGS

Name:

PIR Pipe Section

Feature:

Easy Processing

Cold Insulation Material:

Polyisocyanurate PIR

PH Value:

5.5-7

Service Temp.:

-196～+120℃

Application:

Low Temperature Industries

Packaging Details:

Carton packaging/Wooden case packaging/according to the requirements

Highlight:

polyiso pipe insulation

polyisocyanurate foam pipe insulation

Product Description

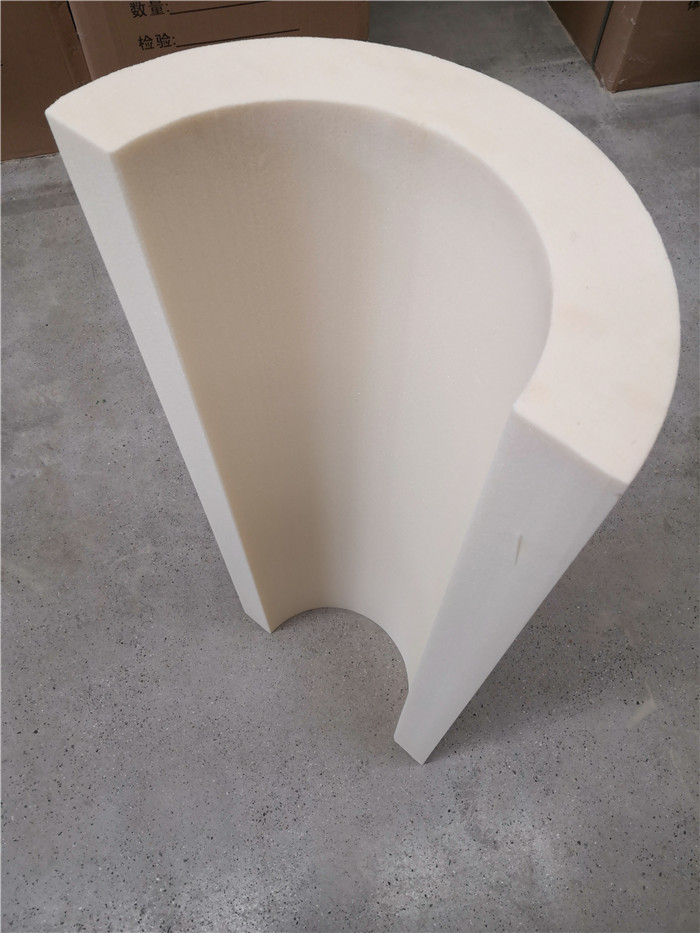

Easy Cutting PIR Pipe Insulation

Long Service Life PIR Pipe Section

Kaff Rees, founded in 2012, is a rapidly growing manufacturer specializing in advanced insulation solutions and systems. As a national leader in insulation technology, we provide industrial insulation, civil building insulation, and anti-corrosion insulation engineering services worldwide.

Our Polyisocyanurate (PIR) is a premium foaming material polymerized from isocyanate and polyether. Superior to polyurethane, it offers exceptional fire resistance, minimal thermal conductivity, and outstanding dimensional stability as an organic hard thermal insulation material.

Key Features

B1 fire resistance rating
Operating temperature range: -196℃ to +120℃
Excellent dimensional stability
Customizable cutting in panels and pipes

Technical Specifications

Property	Unit	Value	Test Method
Density	kg/m³	≥40	ASTM D1622 / ISO 845
Thermal Conductivity	W/(m·K)	≤0.035 (+100℃) ≤0.029 (+50℃) ≤0.025 (+10℃) ≤0.024 (0℃) ≤0.023 (-50℃) ≤0.022 (-100℃) ≤0.017 (-150℃) ≤0.016 (-170℃)	ASTM C177
Compressive Strength	kPa	≥200 (+23℃) ≥280 (-165℃)	ASTM D1621
Tensile Strength	kPa	≥320 (+23℃) ≥265 (-165℃)	ASTM D1623
Flame Spread Index		<25	ASTM E84
Oxygen Index		≥30	GB/T 2406.2
Water Absorption by Volume	%	≤2	ASTM D2842
Water Vapor Permeability	ng/(Pa·s·m)	≤5.5	ASTM E96
Closed Cell Ratio	%	≥95	ASTM D6226
Lineal Thermal Expansion Coefficient	m/(m·K)	≤70×10⁻⁶	ASTM D696
pH Value		5.5-7	ASTM C871
Chloride Content	ppm	≤60	GB/T 11835
Elastic Modulus	MPa	≤16	ASTM D1623
Service Temperature	℃	-196～+120

Applications

PIR is an ideal organic low-temperature insulation material with minimal thermal conductivity and excellent dimensional stability. Suitable for a wide temperature range, it's extensively used in LNG, ethylene, cold storage, and other low-temperature industrial applications.

PIR Insulation System Structure

PIR Shell: inner layer + middle layer (if needed) + outer layer
Secondary Vapor Barrier: PAP aluminum foil
Main Vapor Barrier: mastic + fiberglass meshes + mastic
Metal Protective Layer: aluminum alloy plate, stainless steel plate, aluminized steel plate, GRP
Sealant: HS-10-02, Foster 95-50, etc.
Strapping Material: stainless steel tape, sub sensitive tape

Packing & Storage

Store in dry, lightproof, shady, and ventilated areas away from heat sources and direct sunlight
Inner packaging: black polyethylene bags; Outer packaging: cartons

Handling Instructions

Handle PIR gently - avoid rolling, collision, and heavy pressure during transport
Secure pipe and equipment insulation with glass fiber tape or steel bands
Use saw for cutting during installation

Production Process
