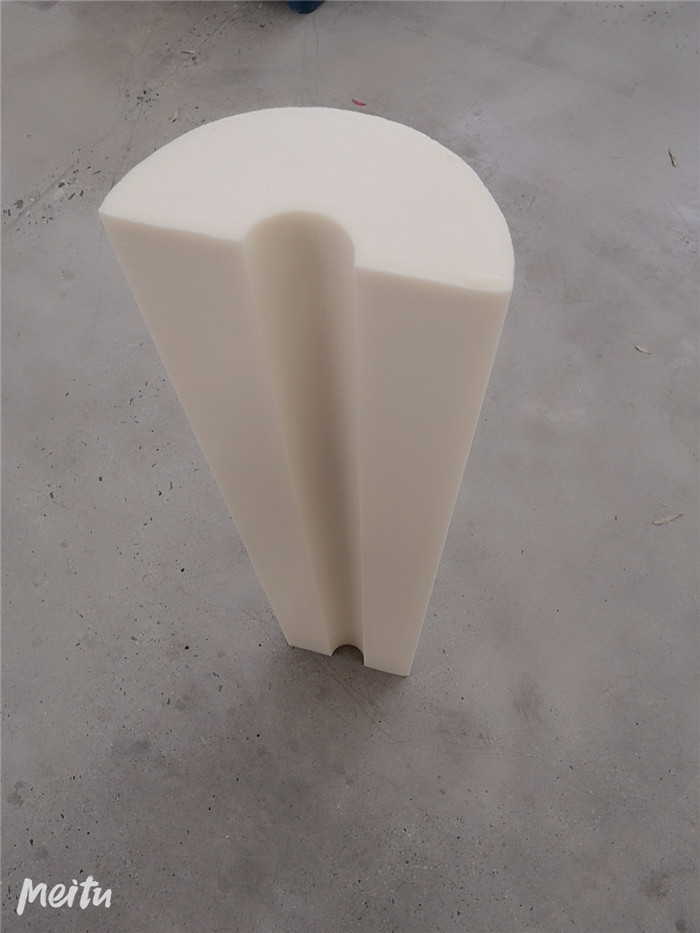

Cold Thermal Insulation Polyisocyanurate Rigid Foam Pipe High Compressive Strength
| Place of Origin | Changzhou, Jiangsu,China |
|---|---|
| Brand Name | Kaff Rees |
| Certification | SGS |
| Minimum Order Quantity | 20 Cubic Meters |
| Price | Negotiable |
| Packaging Details | Carton packaging/Wooden case packaging/according to the requirements |
| Delivery Time | Negotiable |
| Payment Terms | EXW/FOB/CIF |
| Supply Ability | According to products |
Product Details
| Name | Polyisocyanurate Rigid Foam Pipe | Feature | High Compressive Strength |
|---|---|---|---|
| Cold Insulation Material | Polyisocyanurate PIR | PH Value | 5.5-7 |
| Service Temp. | -196～+120℃ | Application | Low Temperature Industries |
| Highlight | polyiso pipe insulation,polyisocyanurate foam pipe insulation |
||
Product Description
Cold Thermal Insulation Polyisocyanurate Rigid Foam Pipe with High Compressive Strength
Product Description
PIR foam pipe insulation provides efficient thermal protection for pipelines and equipment operating between -196℃ to +150℃. It delivers optimal insulation performance for cryogenic applications including Liquefied Nitrogen (LN2, -196℃), Liquefied Natural Gas (LNG, -162℃), and Liquefied Ethylene (LEG, -104℃).
Key Features
- Fire resistance rated B1
- Operating temperature range: -196℃ to +120℃
- Excellent dimensional stability
- Customizable cutting in panels and pipes to meet specific requirements
Technical Specifications
| Item | Unit | Technical Data | Test Mode |
|---|---|---|---|
| Density | kg/m³ | ≥40 | ASTM D1622 / ISO 845 |
| Thermal Conductivity | W/(m·K) |
≤0.035 (+100℃) ≤0.029 (+50℃) ≤0.025 (+10℃) ≤0.024 (0℃) ≤0.023 (-50℃) ≤0.022 (-100℃) ≤0.017 (-150℃) ≤0.016 (-170℃) |
ASTM C177 |
| Compressive Strength | kPa |
+23℃: ≥200 -165℃: ≥280 |
ASTM D1621 |
| Tensile Strength | kPa |
+23℃: ≥320 -165℃: ≥265 |
ASTM D1623 |
| Flame Spread Index | ﹤25 | ASTM E84 | |
| Oxygen Index | ≥30 | GB/T 2406.2 | |
| Water Absorption by Vol. | % | ≤2 | ASTM D2842 |
| Water Vapor Permeability | ng/(Pa·s·m) | ≤5.5 | ASTM E96 |
| Closed Cell Ratio | % | ≥95 | ASTM D6226 |
| Lineal Thermal Expansion Coefficient | m/(m·K) | ≤70×10⁻⁶ | ASTM D696 |
| PH Value | 5.5-7 | ASTM C871 | |
| Chloride Content | ppm | ≤60 | GB/T 11835 |
| Elastic Modulus | MPa | ≤16 | ASTM D1623 |
| Service Temp. | ℃ | -196～+120 |
Applications
This PIR foam is an ideal organic low-temperature insulation material featuring minimal thermal conductivity and superior dimensional stability. Suitable for a broad temperature range, it's extensively used in LNG, ethylene, cold storage, and other cryogenic industrial applications.
Typical PIR Insulation System Structure
- PIR Shell: inner layer + middle layer (if required) + outer layer
- Secondary Vapor Barrier: PAP aluminum foil
- Main Vapor Barrier: mastic + fiberglass meshes + mastic
- Metal Protective Layer: aluminum alloy plate, stainless steel plate, aluminized steel plate, GRP
- Sealant: HS-10-02, Foster 95-50, etc.
- Strapping Material: stainless steel tape, sub sensitive tape
Packing and Storage
- Store in dry, lightproof, shaded, and ventilated areas away from heat sources and direct sunlight
- Inner packaging consists of black polyethylene bags with outer carton packaging
Handling Instructions
- Handle PIR gently, avoiding rolling, collisions, and heavy pressure during transport
- When installing on pipes and equipment, secure with glass fiber tape or steel bands
- Use saws for cutting during application
