Polyisocyanurate Foam Board PIR Pipe Section For LNG And Ethylene Industry

Brand Name:	Kaff Rees
MOQ:	20 Cubic Meters
Price:	Negotiable
Payment Terms:	EXW/FOB/CIF
Supply Ability:	According to products

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou, Jiangsu,China

Certification:

SGS

Name:

PIR Arc Plate

Cold Insulation Material:

Polyisocyanurate PIR

PH Value:

6-7

Service Temp.:

-196～+120℃

DENSITY:

≥40 Kg/m3

CHLORIDE CONTENT:

≤60 Ppm

WATER ABSORPTION BY VOL.:

≤2%

WATER VAPOR PERMEABILITY:

≤5.0 Ng/(Pa·s·m)

LINEAL THERMAL EXPANSION COEFFICIENT:

≤70×10-6 M/(m·K)

THERMAL CONDUCTIVITY:

≤0.017-0.023 W/(m·K) (-160-+40℃)

Packaging Details:

Carton packaging/Wooden case packaging/according to the requirements

Highlight:

Ethylene Industry polyiso pipe insulation

LNG Industry PIR Pipe Section

Product Description

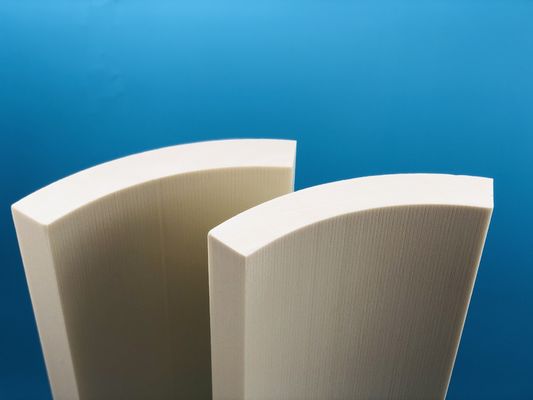

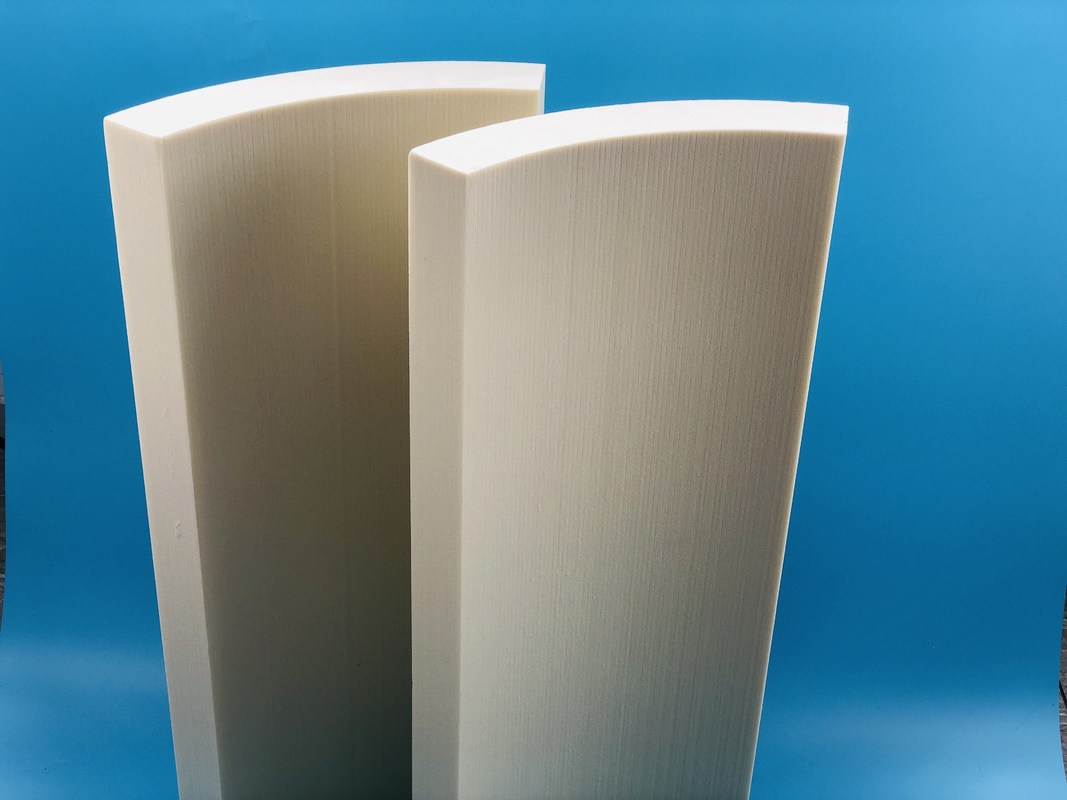

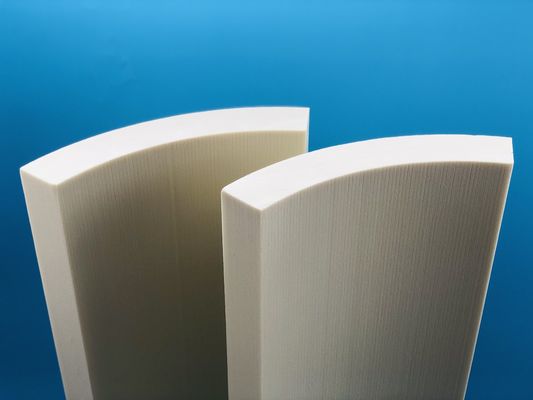

Polyisocyanurate Foam Board PIR Pipe Section For LNG And Ethylene Industry

Founded in 2012, Kaff Rees' factory is a rapidly growing manufacturer specializing in insulation solutions and systems. As a national leader in insulation systems, Kaff Rees provides industrial insulation, civil building insulation, and anti-corrosion insulation engineering products and services worldwide.

Polyisocyanurate (PIR) is a foaming material made by polymerizing isocyanate and polyether. With superior physical and fire resistance properties compared to polyurethane, PIR offers excellent thermal conductivity and dimensional stability as an organic hard thermal insulation material.

Key Features

Fire resistance rated as B1
Operating temperature range: -196℃ to +120℃
Excellent dimensional stability
Customizable cutting in panels and pipes to meet customer requirements

Technical Properties

Item	Unit	Technical Data	Test Mode
Density	kg/m3	≥40	ASTM D1622 / ISO 845
Thermal Conductivity	W/(m*K)	≤0.035 (+100℃) ≤0.029 (+50℃) ≤0.025 (+10℃) ≤0.024 (0℃) ≤0.023 (-50℃) ≤0.022 (-100℃) ≤0.017 (-150℃) ≤0.016 (-170℃)	ASTM C177
Compressive Strength	kPa	+23℃: ≥200 -165℃: ≥280	ASTM D 1621
Tensile Strength	kPa	+23℃: ≥320 -165℃: ≥265	ASTM D 1623
Flame Spread Index		﹤25	ASTM E84
Oxygen index		≥30	GB/T 2406.2
Water Absorption by Vol.	%	≤2	ASTM D2842
Water Vapor Permeability	ng/(Pasm)	≤5.5	ASTM E96
Closed Cell Ratio	%	≥95	ASTM D6226
Lineal Thermal Expansion Coefficient	m/(m*K)	≤70×10-6	ASTM D696
PH Value		5.5-7	ASTM C871
Chloride Content	ppm	≤60	GB/T 11835
Elastic Modulus	MPa	≤16	ASTM D1623
Service Temp.	℃	-196～+120

Applications

As an ideal organic low-temperature heat insulation material with excellent thermal conductivity and dimensional stability, PIR is suitable for a wide temperature range and widely used in LNG, ethylene, cold storage, and other low-temperature industries.

Typical PIR Insulation System Structure

PIR Shell: inner layer + middle layer (if necessary) + outer layer
Secondary Vapor Barrier: PAP aluminum foil
Main Vapor Barrier: mastic + fiberglass meshes + mastic
Metal Protective Layer: aluminum alloy plate, stainless steel plate, aluminized steel plate, GRP
Sealant: HS-10-02, Foster 95-50, etc
Strapping Material: stainless steel tape, sub sensitive tape

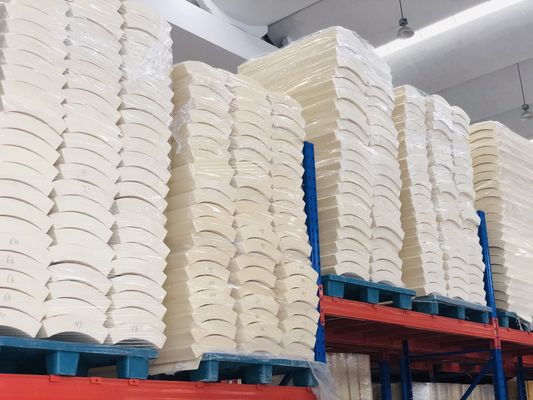

Packing and Storage

Store in a dry, lightproof, shady, and ventilated place, away from heat sources and protected from sun exposure

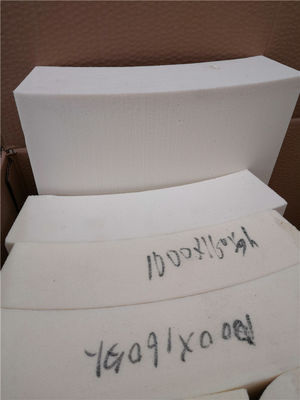

Inner package: black polyethylene bags; Outer package: cartons

Handling Cautions

Handle PIR gently, avoiding rolling, collision, and heavy pressure during movement
When applied to pipe and equipment insulation, fasten PIR with glass fiber tape or steel band
Use a saw for cutting during application

Production Flow
