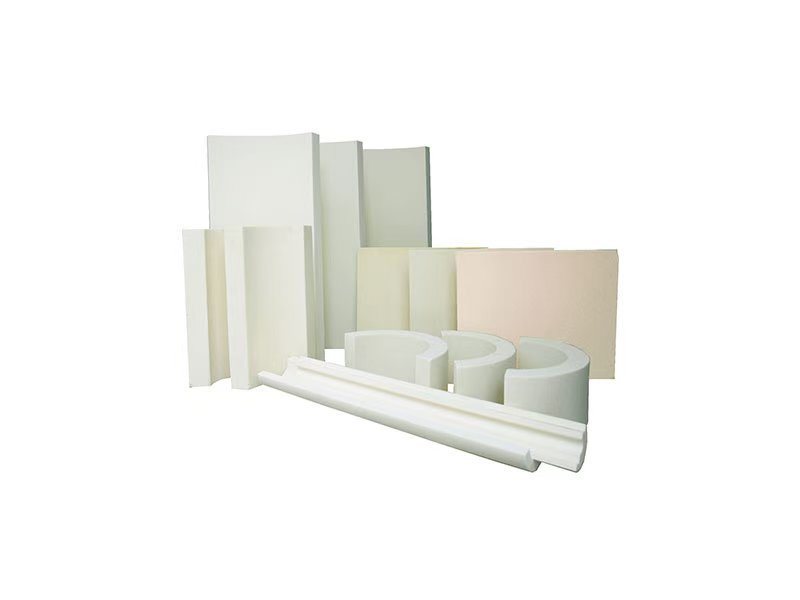

Fire Safety Pipe Insulation Materials PIR Insulation Board Customizable Thick

Brand Name:	JSHESOL
MOQ:	20 Cubic Meters
Price:	Negotiable
Payment Terms:	EXW/FOB/CIF
Supply Ability:	According to products

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou, Jiangsu,China

Certification:

SGS

Operating Temperature Range:

-40°C To 120°C

Thermal Conductivity:

0.02 W/mK

Material:

Polyisocyanurate Foam

Fire Rating:

Class 1

Insulation Type:

Pipe Insulation

Installation Method:

Self-adhesive Or Mechanical Fastening

Density:

30 Kg/m3

Uv Resistance:

Excellent

Compressive Strength:

150 KPa

Moisture Absorption:

0.2% By Volume

Water Vapor Permeability:

0.03 Ng/Pa.s.m2

Length:

6 Feet (1.8 Meters)

Chemical Resistance:

Resistant To Most Chemicals

Sound Absorption:

Excellent

Packaging Details:

Carton packaging/Wooden case packaging/according to the requirements

Highlight:

Fire Safety Pipe Insulation Materials

Customizable Thick PIR Insulation Board

Product Description

Fire Safety Pipe Insulation Materials PIR Insulation Board Customizable Thick

Product Overview

High Fire-Performance PIR Insulation Board is an advanced thermal insulation material specifically engineered to meet the most demanding fire safety requirements in construction and industrial applications. While delivering exceptional thermal efficiency, its optimized formulation and manufacturing process achieve a superior Flame Retardant Grade B1 (Chinese Standard) or higher classification. This makes it the ideal choice for projects requiring reliable fire protection and compliance with stringent safety regulations, providing essential safeguarding for both life and property.

Core Advantages

Enhanced Fire Safety Performance - Incorporates advanced flame-retardant technology that rapidly forms a protective char layer when exposed to fire, effectively resisting flame penetration and spread.
Low Smoke & Toxicity Emission - Generates significantly reduced smoke density and minimal toxic fumes under fire conditions, enhancing evacuation time and safety.
Excellent Thermal Efficiency - Maintains outstanding insulation performance with thermal conductivity as low as 0.025 W/(m*K), ensuring energy conservation without compromising fire safety.
Superior Mechanical Strength - High compressive strength (>220 kPa) and dimensional stability ensure long-term reliability under various operational conditions.

Key Performance Parameters

Parameter	Unit	Value	Test Standard
Fire Classification	-	Flame Retardant B1	GB 8624
Oxygen Index	%	≥ 32	GB/T 2406.2
Smoke Density Rating	-	≤ 75	GB/T 8627
Thermal Conductivity	W/(m*K)	≤ 0.025 (at 10°C)	ASTM C177
Compressive Strength	kPa	≥ 220	ASTM D1621
Dimensional Stability	%	≤ 1.5 (70°C, 48h)	ASTM D2126

Typical Applications

Buildings with Strict Fire Safety Requirements - Hospitals, schools, shopping malls, high-rise office buildings, and hotels
Industrial Fire Protection Systems - Fire compartments in chemical plants, warehouse roofs and walls, insulation for pipelines and storage tanks requiring fire protection
Transportation Applications - Ship cabins, rail vehicle interior insulation

Why Choose Our High Fire-Performance PIR Board?

Proven Fire Safety Compliance - Specifically designed to meet international building codes and fire safety standards, ensuring regulatory compliance.
Optimal Balance of Safety and Performance - Successfully resolves the traditional conflict between insulation efficiency and fire protection requirements.
Customizable Solutions - Available in custom sizes and thicknesses, with comprehensive technical support and system solutions.
Reliable Quality Assurance - Manufactured under strict quality control protocols with complete traceability.
