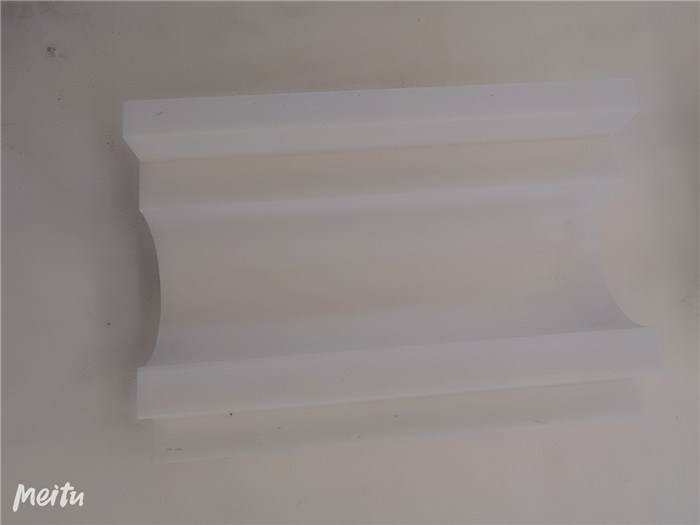

40mm 80mm PIR Polyisocyanurate Insulation Board Thermal Insulation Material
| Place of Origin | Changzhou, Jiangsu,China |
|---|---|
| Brand Name | Kaff Rees |
| Certification | SGS |
| Minimum Order Quantity | 20 Cubic Meters |
| Price | Negotiable |
| Packaging Details | Carton packaging/Wooden case packaging/according to the requirements |
| Delivery Time | Negotiable |
| Payment Terms | EXW/FOB/CIF |
| Supply Ability | According to products |
Product Details
| Name | Polyisocyanurate Insulation Board | Feature | Easy Processing |
|---|---|---|---|
| Cold Insulation Material | Polyisocyanurate PIR | PH Value | 5.5-7 |
| Service Temp. | -196～+120℃ | Application | Low Temperature Industries |
| Highlight | Thermal Insulation Material PIR Board,80mm PIR Insulation Board,40mm Polyisocyanurate Insulation Board |
||
Product Description
40mm 80mm PIR Polyisocyanurate Insulation Board Thermal Insulation Material
Application
This ideal organic low-temperature heat insulation material features small thermal conductivity and high dimensional stability. Suitable for a wide temperature range, it's widely used in LNG, ethylene, cold storage, and other low-temperature industries.
Features
- Fire resistance rated as B1
- Operating temperature range: -196℃ to +120℃
- Excellent dimension stability
- Customizable cutting in panels and pipes according to requirements
Product Introduction
Polyisocyanurate (PIR) is a foaming material made by polymerizing isocyanate and polyether. With superior physical and fire resistance properties compared to polyurethane, this organic hard thermal insulation material offers excellent thermal conductivity and dimensional stability.
Technical Properties
| Item | Unit | Technical Data | Test Mode |
|---|---|---|---|
| Density | kg/m3 | ≥40 | ASTM D1622 / ISO 845 |
| Thermal Conductivity | W/(m*K) |
≤0.035 (+100℃) ≤0.029 (+50℃) ≤0.025 (+10℃) ≤0.024 (0℃) ≤0.023 (-50℃) ≤0.022 (-100℃) ≤0.017 (-150℃) ≤0.016 (-170℃) |
ASTM C177 |
| Compressive Strength | kPa |
+23℃: ≥200 -165℃: ≥280 |
ASTM D 1621 |
| Tensile Strength | kPa |
+23℃: ≥320 -165℃: ≥265 |
ASTM D 1623 |
| Flame Spread Index | ﹤25 | ASTM E84 | |
| Oxygen index | ≥30 | GB/T 2406.2 | |
| Water Absorption by Vol. | % | ≤2 | ASTM D2842 |
| Water Vapor Permeability | ng/(Pa*s*m) | ≤5.5 | ASTM E96 |
| Closed Cell Ratio | % | ≥95 | ASTM D6226 |
| Lineal Thermal Expansion Coefficient | m/(m*K) | ≤70×10-6 | ASTM D696 |
| PH Value | 5.5-7 | ASTM C871 | |
| Chloride Content | ppm | ≤60 | GB/T 11835 |
| Elastic Modulus | MPa | ≤16 | ASTM D1623 |
| Service Temp. | ℃ | -196～+120 |
Typical PIR Insulation System Structure
- PIR Shell: inner layer + middle layer (if necessary) + outer layer
- Secondary Vapor Barrier: PAP aluminum foil
- Main Vapor Barrier: mastic + fiberglass meshes + mastic
- Metal Protective Layer: aluminum alloy plate, stainless steel plate, aluminized steel plate, GRP
- Sealant: HS-10-02, Foster 95-50, etc
- Strapping Material: stainless steel tape, sub sensitive tape
Packing and Storage
- Store in a dry, lightproof, shady, and ventilated place, away from heat sources and protected from sun exposure
- Inner package: black polyethylene bags; Outer package: cartons
Cautions
- Handle PIR gently, avoiding rolling, collision, and heavy pressure during movement
- When applied to pipe and equipment insulation, fasten PIR with glass fiber tape or steel band
- Use a saw for cutting during application
