Multipurpose Building Insulation Materials PIR Insulation Board For Low Temperature Industry
| Place of Origin | Changzhou, Jiangsu,China |
|---|---|
| Brand Name | Kaff Rees |
| Certification | SGS |
| Minimum Order Quantity | 20 Cubic Meters |
| Price | Negotiable |
| Packaging Details | Carton packaging/Wooden case packaging/according to the requirements |
| Delivery Time | Negotiable |
| Payment Terms | EXW/FOB/CIF |
| Supply Ability | According to products |
Product Details
| Name | PIR Insulation Board | PH Value | 5.5-7 |
|---|---|---|---|
| Cold Insulation Material | Polyisocyanurate PIR | Feature | High Performance |
| Service Temp. | -196～+120℃ | Application | Low Temperature Industries |
| Highlight | Building Insulation Materials pir board,Multipurpose pir foam insulation boards,Multipurpose Building Insulation Materials |
||
Product Description
Multipurpose PIR Insulation Board for Low Temperature Applications
Polyisocyanurate (PIR) is a high-performance foaming material created through the polymerization of isocyanate and polyether. Offering superior physical properties and fire resistance compared to polyurethane, PIR insulation features minimal thermal conductivity and excellent dimensional stability, making it an ideal organic hard thermal insulation material.
Key Features
- B1 fire resistance rating
- Wide operating temperature range: -196°C to +120°C
- Exceptional dimensional stability

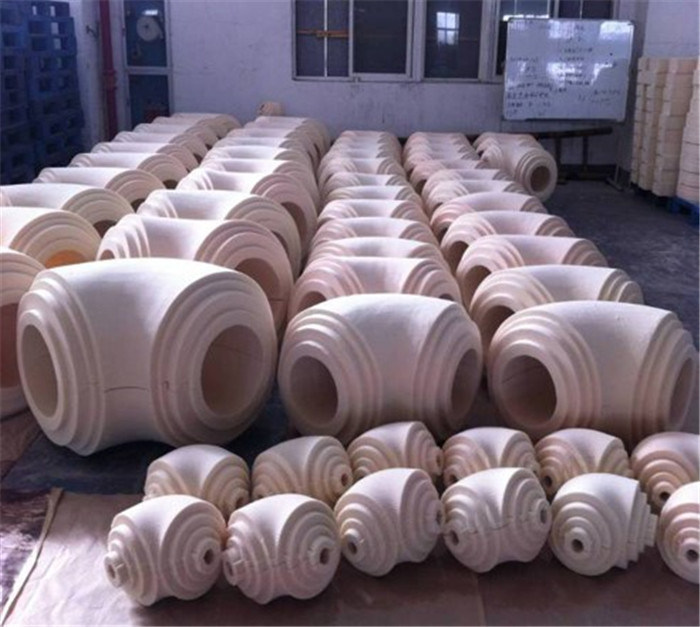

- Customizable panel and pipe cutting options available
Technical Specifications
| Property | Unit | Value | Test Method |
|---|---|---|---|
| Density | kg/m³ | ≥40 | ASTM D1622 / ISO 845 |
| Thermal Conductivity | W/(m·K) |
≤0.035 (+100°C) ≤0.029 (+50°C) ≤0.025 (+10°C) ≤0.024 (0°C) ≤0.023 (-50°C) ≤0.022 (-100°C) ≤0.017 (-150°C) ≤0.016 (-170°C) |
ASTM C177 |
| Compressive Strength | kPa | ≥200 (+23°C) ≥280 (-165°C) |
ASTM D1621 |
| Tensile Strength | kPa | ≥320 (+23°C) ≥265 (-165°C) |
ASTM D1623 |
| Flame Spread Index | ﹤25 | ASTM E84 | |
| Oxygen Index | ≥30 | GB/T 2406.2 | |
| Water Absorption by Volume | % | ≤2 | ASTM D2842 |
| Water Vapor Permeability | ng/(Pa·s·m) | ≤5.5 | ASTM E96 |
| Closed Cell Ratio | % | ≥95 | ASTM D6226 |
| Linear Thermal Expansion Coefficient | m/(m·K) | ≤70×10⁻⁶ | ASTM D696 |
| pH Value | 5.5-7 | ASTM C871 | |
| Chloride Content | ppm | ≤60 | GB/T 11835 |
| Elastic Modulus | MPa | ≤16 | ASTM D1623 |
| Service Temperature | °C | -196 to +120 |
Applications
PIR insulation is the ideal organic low-temperature thermal insulation material, featuring minimal thermal conductivity and outstanding dimensional stability. Suitable for a broad temperature range, it is widely used in LNG plants, ethylene production facilities, cold storage units, and other low-temperature industrial applications.
Typical PIR Insulation System Structure
- PIR Shell: Inner layer + middle layer (if required) + outer layer
- Secondary Vapor Barrier: PAP aluminum foil
- Main Vapor Barrier: Mastic + fiberglass meshes + mastic
- Metal Protective Layer: Aluminum alloy plate, stainless steel plate, aluminized steel plate, or GRP
- Sealant: HS-10-02, Foster 95-50, etc.
- Strapping Material: Stainless steel tape, sub-sensitive tape
Packaging & Storage
- Store in dry, lightproof, shaded, and ventilated areas
- Keep away from heat sources and protect from direct sunlight
- Inner packaging: black polyethylene bags
- Outer packaging: protective cartons
Handling Instructions
- Handle PIR materials gently to avoid rolling, collision, or heavy pressure during transport
- For pipe and equipment insulation, secure PIR with glass fiber tape or steel bands
- Use saws for cutting during installation
