PH 5.5-7 Polyisocyanurate Building Insulation Materials Foam Board Fire Resistance

Brand Name:	Kaff Rees
MOQ:	20 Cubic Meters
Price:	Negotiable
Payment Terms:	EXW/FOB/CIF
Supply Ability:	According to products

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou, Jiangsu,China

Certification:

SGS

Name:

Polyisocyanurate Foam Board Insulation

Feature:

Excellent Fire Resistance

Cold Insulation Material:

Polyisocyanurate PIR

PH Value:

5.5-7

Service Temp.:

-196～+120℃

Application:

Low Temperature Industries

Packaging Details:

Carton packaging/Wooden case packaging/according to the requirements

Highlight:

Fire Resistance Building Insulation Materials

PH 7 Polyiso Insulation Board

PH 5.5 Building Insulation Materials

Product Description

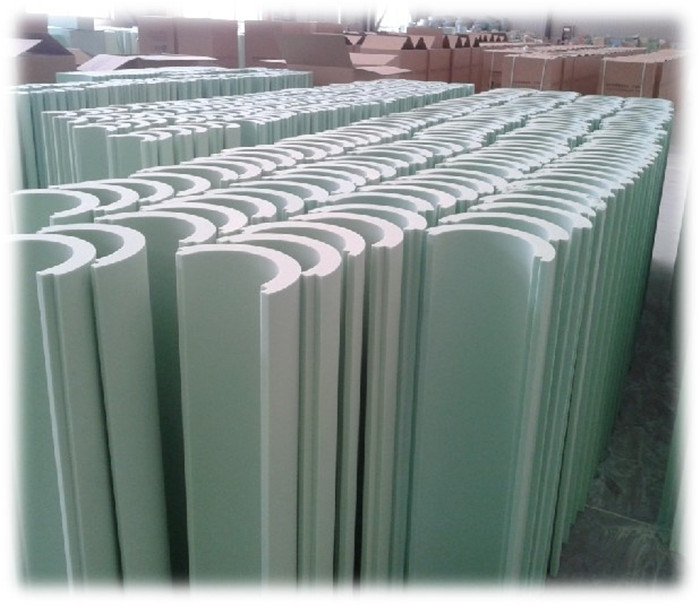

PH 5.5-7 Polyisocyanurate Building Insulation Materials Foam Board Fire Resistance

Product Description

Polyisocyanurate (PIR) is a high-performance foaming material created through the polymerization of isocyanate and polyether. Offering superior physical and fire resistance properties compared to polyurethane, PIR features minimal thermal conductivity and excellent dimensional stability as an organic hard thermal insulation material.

Typical PIR Insulation System Structure

PIR Shell: inner layer + middle layer (if necessary) + outer layer
Secondary Vapor Barrier: PAP aluminum foil
Main Vapor Barrier: mastic + fiberglass meshes + mastic
Metal Protective Layer: aluminum alloy plate, stainless steel plate, aluminized steel plate, GRP
Sealant: HS-10-02, Foster 95-50, etc
Strapping Material: stainless steel tape, sub sensitive tape

Key Features

Fire resistance rated as B1
Operating temperature range: -196℃ to +120℃
Excellent dimensional stability
Customizable cutting in panels and pipes according to requirements

Technical Properties

Item	Unit	Technical Data	Test Mode
Density	kg/m3	≥40	ASTM D1622 / ISO 845
Thermal Conductivity	W/(m*K)	≤0.035 (+100℃) ≤0.029 (+50℃) ≤0.025 (+10℃) ≤0.024 (0℃) ≤0.023 (-50℃) ≤0.022 (-100℃) ≤0.017 (-150℃) ≤0.016 (-170℃)	ASTM C177
Compressive Strength	kPa	+23℃: ≥200 -165℃: ≥280	ASTM D 1621
Tensile Strength	kPa	+23℃: ≥320 -165℃: ≥265	ASTM D 1623
Flame Spread Index		﹤25	ASTM E84
Oxygen index		≥30	GB/T 2406.2
Water Absorption by Vol.	%	≤2	ASTM D2842
Water Vapor Permeability	ng/(Pasm)	≤5.5	ASTM E96
Closed Cell Ratio	%	≥95	ASTM D6226
Lineal Thermal Expansion Coefficient	m/(m*K)	≤70×10-6	ASTM D696
PH Value		5.5-7	ASTM C871
Chloride Content	ppm	≤60	GB/T 11835
Elastic Modulus	MPa	≤16	ASTM D1623
Service Temp.	℃	-196～+120

Applications

PIR is an ideal organic low-temperature thermal insulation material featuring minimal thermal conductivity and excellent dimensional stability. Suitable for a wide temperature range, it is extensively used in LNG, ethylene, cold storage, and other low-temperature industrial applications.

Packing and Storage

Store in a dry, lightproof, shady, and ventilated area, away from heat sources and protected from sun exposure
Inner packaging consists of black polyethylene bags with outer carton packaging

Handling Cautions

Handle PIR gently, avoiding rolling, collision, and heavy pressure during transportation
When applied to pipe and equipment insulation, secure PIR with glass fiber tape or steel bands
Use saws for cutting during application

Production Flow
