PH Value 5.5-7 PIR Pipe Insulation , PIR Pipe Cold Insulation Material

Brand Name:	Kaff Rees
MOQ:	20 Cubic Meters
Price:	Negotiable
Payment Terms:	EXW/FOB/CIF
Supply Ability:	According to products

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou, Jiangsu,China

Certification:

SGS

Name:

PIR Pipe Cold Insulation

Feature:

High Dimensional Stability

Cold Insulation Material:

Polyisocyanurate PIR

PH Value:

5.5-7

Service Temp.:

-196～+120℃

Application:

Low Temperature Industries

Packaging Details:

Carton packaging/Wooden case packaging/according to the requirements

Highlight:

polyisocyanurate pipe insulation

polyiso pipe insulation

Product Description

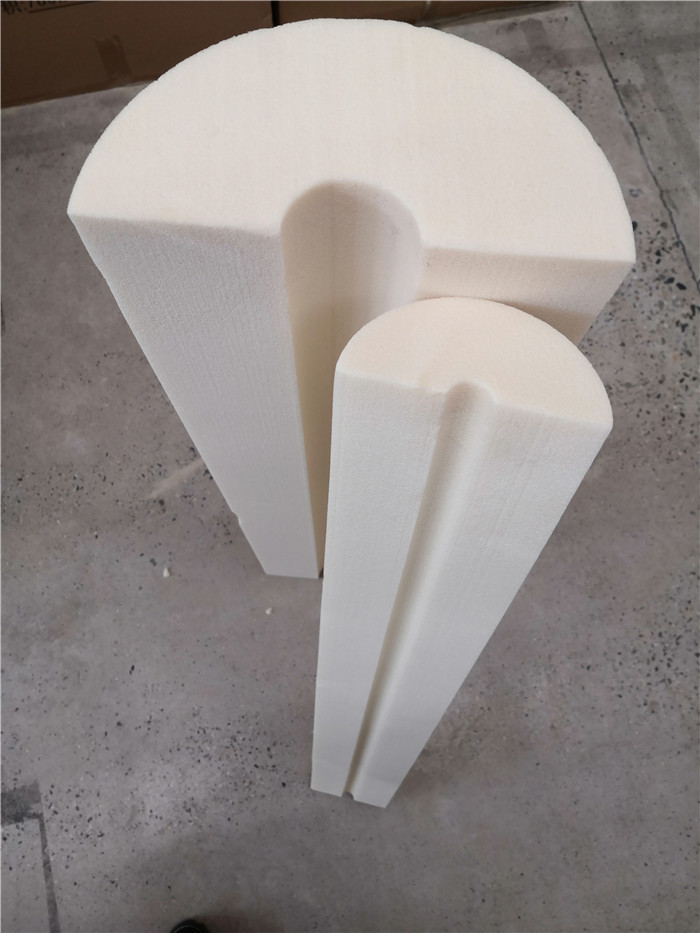

PH Value 5.5-7 PIR Pipe Insulation Material

Kaff Rees provides professional insulation solutions from -196℃ to +400℃, specializing in R&D, production, and distribution of insulation materials and pipe support systems. Our comprehensive product portfolio covers all support situations, operational loads, and temperature ranges for industrial insulation systems in petrochemical, coal chemical, LNG, low temperature, cold air, subway, and underground moisture applications.

Polyisocyanurate (PIR) is a foaming material polymerized from isocyanate and polyether, offering superior physical and fire resistance properties compared to polyurethane. This organic hard thermal insulation material features excellent thermal conductivity and dimensional stability.

Key Features

Fire resistance rated B1
Operating temperature range: -196℃ to 120℃
Excellent dimensional stability
Customizable cutting in panels and pipes

Technical Properties

Item	Unit	Technical Data	Test Mode
Density	kg/m3	≥40	ASTM D1622 / ISO 845
Thermal Conductivity	W/(m*K)	≤0.035 (+100℃) ≤0.029 (+50℃) ≤0.025 (+10℃) ≤0.024 (0℃) ≤0.023 (-50℃) ≤0.022 (-100℃) ≤0.017 (-150℃) ≤0.016 (-170℃)	ASTM C177
Compressive Strength	kPa	+23℃: ≥200 -165℃: ≥280	ASTM D 1621
Tensile Strength	kPa	+23℃: ≥320 -165℃: ≥265	ASTM D 1623
Flame Spread Index		﹤25	ASTM E84
Oxygen index		≥30	GB/T 2406.2
Water Absorption by Vol.	%	≤2	ASTM D2842
Water Vapor Permeability	ng/(Pasm)	≤5.5	ASTM E96
Closed Cell Ratio	%	≥95	ASTM D6226
Lineal Thermal Expansion Coefficient	m/(m*K)	≤70×10-6	ASTM D696
PH Value		5.5-7	ASTM C871
Chloride Content	ppm	≤60	GB/T 11835
Elastic Modulus	MPa	≤16	ASTM D1623
Service Temp.	℃	-196～+120

Applications

PIR is an ideal organic low-temperature insulation material with excellent thermal conductivity and dimensional stability. Suitable for a wide temperature range, it's widely used in LNG, ethylene, cold storage, and other low-temperature industries.

Typical PIR Insulation System Structure

PIR Shell: inner layer + middle layer (if necessary) + outer layer
Secondary Vapor Barrier: PAP aluminum foil
Main Vapor Barrier: mastic + fiberglass meshes + mastic
Metal Protective Layer: aluminum alloy plate, stainless steel plate, aluminized steel plate, GRP
Sealant: HS-10-02, Foster 95-50, etc
Strapping Material: stainless steel tape, sub sensitive tape

Packing and Storage

Store in a dry, lightproof, shady, and ventilated area away from heat sources and sun exposure
Inner package: black polyethylene bags; Outer package: cartons

Handling Cautions

Handle PIR gently - avoid rolling, collision, and heavy pressure during transport
When applying to pipe/equipment insulation, fasten with glass fiber tape or steel band
Use a saw for cutting during application

Production Flow
