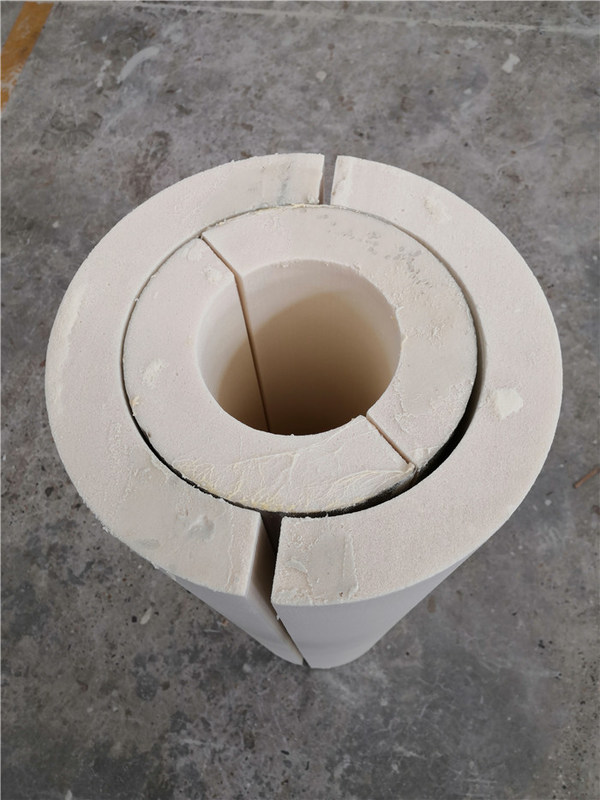

Polyisocyanurate PIR Pipe Insulation Durable Good Flammability Resistance

Brand Name:	Kaff Rees
MOQ:	20 Cubic Meters
Price:	Negotiable
Payment Terms:	EXW/FOB/CIF
Supply Ability:	According to products

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou, Jiangsu,China

Certification:

SGS

Name:

Polyisocyanurate PIR Pipe Insulation

Feature:

Durable

Cold Insulation Material:

Polyisocyanurate PIR

PH Value:

5.5-7

Service Temp.:

-196～+120℃

Application:

Low Temperature Industries

Packaging Details:

Carton packaging/Wooden case packaging/according to the requirements

Highlight:

polyiso pipe insulation

polyisocyanurate foam pipe insulation

Product Description

Polyisocyanurate PIR Pipe Insulation - Durable Good Flammability Resistance

Application

Polyisocyanurate (PIR) is an ideal organic low-temperature thermal insulation material with excellent thermal conductivity and dimensional stability. Suitable for a wide temperature range, it is widely used in LNG, ethylene, cold storage, and other low-temperature industries.

PIR is a foaming material made by polymerizing isocyanate and polyether, offering superior physical and fire resistance compared to polyurethane. This organic rigid thermal insulation material combines low thermal conductivity with outstanding dimensional stability.

Key Features

Fire resistance rated B1
Operating temperature range: -196°C to +120°C
Excellent dimensional stability
Customizable cutting in panels and pipes to meet specific requirements

Technical Properties

Item	Unit	Technical Data	Test Mode
Density	kg/m³	≥40	ASTM D1622 / ISO 845
Thermal Conductivity	W/(m·K)	≤0.035 (+100°C) ≤0.029 (+50°C) ≤0.025 (+10°C) ≤0.024 (0°C) ≤0.023 (-50°C) ≤0.022 (-100°C) ≤0.017 (-150°C) ≤0.016 (-170°C)	ASTM C177
Compressive Strength	kPa	+23°C: ≥200 -165°C: ≥280	ASTM D1621
Tensile Strength	kPa	+23°C: ≥320 -165°C: ≥265	ASTM D1623
Flame Spread Index		<25	ASTM E84
Oxygen Index		≥30	GB/T 2406.2
Water Absorption by Vol.	%	≤2	ASTM D2842
Water Vapor Permeability	ng/(Pa·s·m)	≤5.5	ASTM E96
Closed Cell Ratio	%	≥95	ASTM D6226
Lineal Thermal Expansion Coefficient	m/(m·K)	≤70×10⁻⁶	ASTM D696
pH Value		5.5-7	ASTM C871
Chloride Content	ppm	≤60	GB/T 11835
Elastic Modulus	MPa	≤16	ASTM D1623
Service Temperature	°C	-196 to +120

Typical PIR Insulation System Structure

PIR Shell: inner layer + middle layer (if necessary) + outer layer
Secondary Vapor Barrier: PAP aluminum foil
Main Vapor Barrier: mastic + fiberglass meshes + mastic
Metal Protective Layer: aluminum alloy plate, stainless steel plate, aluminized steel plate, GRP
Sealant: HS-10-02, Foster 95-50, etc
Strapping Material: stainless steel tape, sub sensitive tape

Packing and Storage

Store in a dry, lightproof, shady, and ventilated place, away from heat sources and protected from sun exposure
Inner package: black polyethylene bags; Outer package: cartons

Cautions

Handle PIR gently - avoid rolling, collision, and heavy pressure during movement
When applied to pipe and equipment insulation, fasten PIR with glass fiber tape or steel band
Use a saw for cutting during application
