Low Temperature PIR Pipe Insulation Heat Insulation Polyisocyanurate Rigid Foam
| Place of Origin | Changzhou, Jiangsu,China |
|---|---|
| Brand Name | Kaff Rees |
| Certification | SGS |
| Minimum Order Quantity | 20 Cubic Meters |
| Price | Negotiable |
| Packaging Details | Carton packaging/Wooden case packaging/according to the requirements |
| Delivery Time | Negotiable |
| Payment Terms | EXW/FOB/CIF |
| Supply Ability | According to products |
Product Details
| Name | PIR Pipe Insulation | Feature | Fire Protection |
|---|---|---|---|
| Cold Insulation Material | Polyisocyanurate PIR | PH Value | 5.5-7 |
| Service Temp. | -196～+120℃ | Application | Low Temperature Industries |
| Highlight | Heat Insulation Polyisocyanurate Rigid Foam,Low Temperature PIR Pipe Insulation |
||
Product Description
Low Temperature PIR Pipe Insulation Heat Insulation Polyisocyanurate Rigid Foam

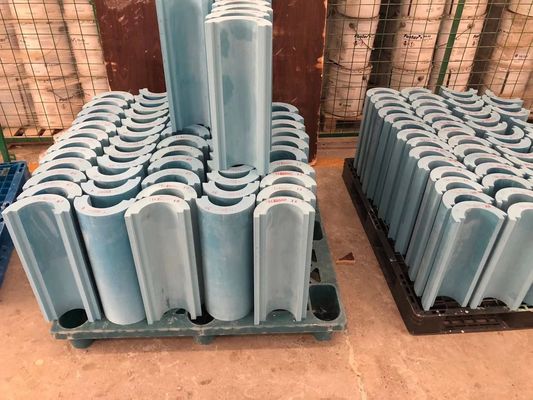

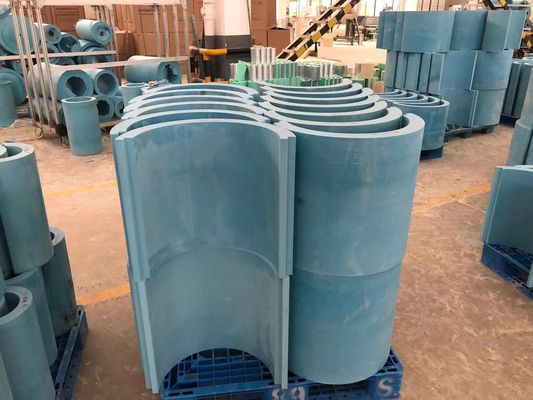

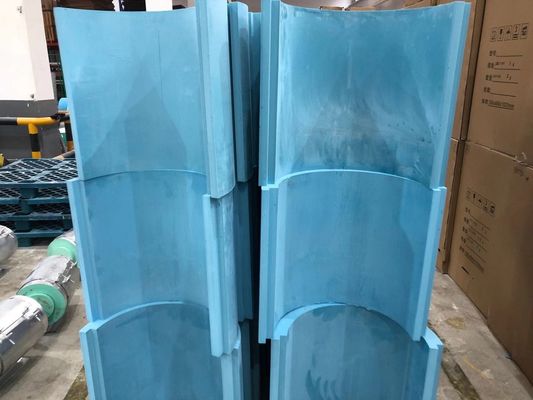

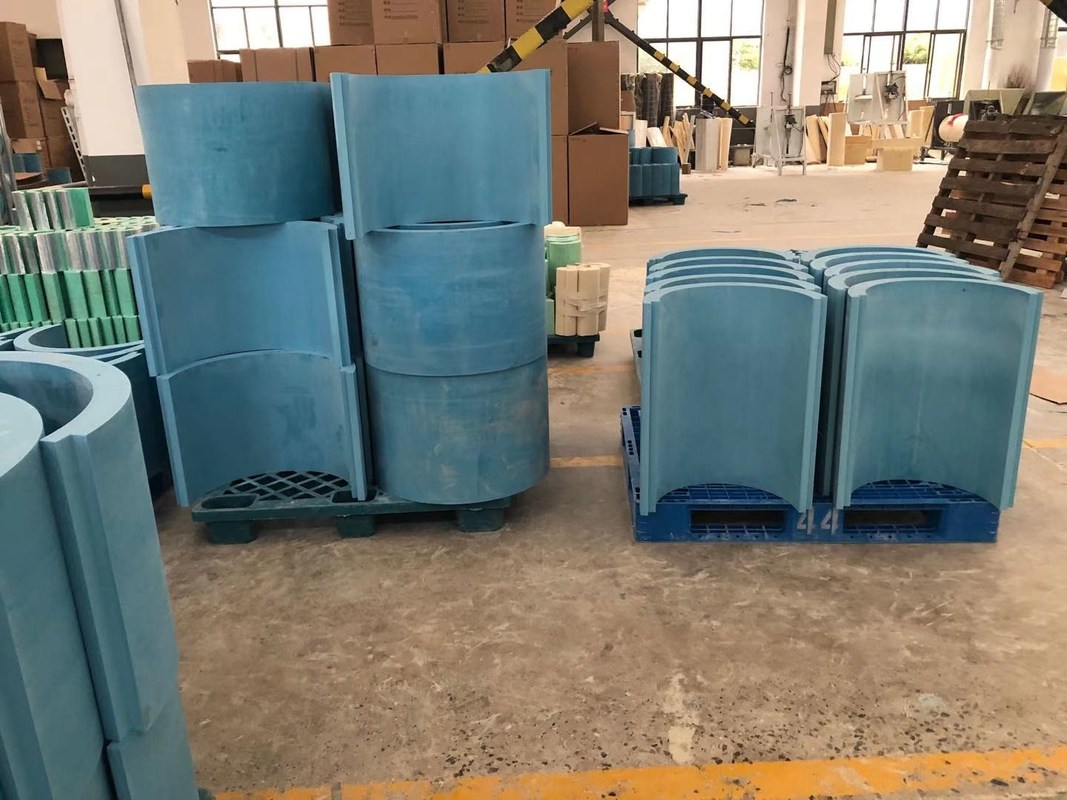

The support blocks of this product feature a wedge-shaped interface, providing superior cooling effect compared to straight-slit interfaces. In engineering applications, the supporting blocks demonstrate a density of 250Kg/m³, offering excellent strength grade and significant cooling performance.
Key Features
- Fire resistance rated as B1
- Operating temperature range: -196℃ to +120℃
- Excellent dimensional stability
- Customizable cutting in panels and pipes to meet customer requirements
Technical Specifications
| Pipe Diameter | Insulation Thickness | Length | Density |
|---|---|---|---|
| 457mm | 100mm | 450mm | 250Kg/m³ |
Applications

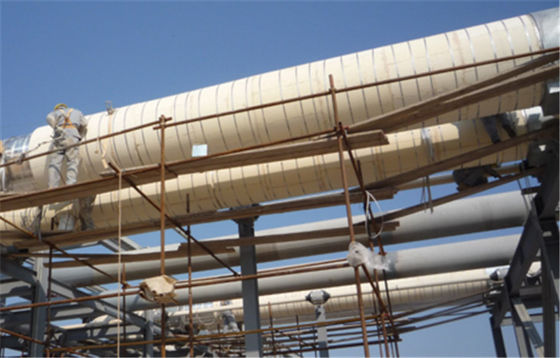

This product is an ideal organic low-temperature insulation material, featuring minimal thermal conductivity and high dimensional stability. Suitable for a broad temperature range, it is widely used in LNG, ethylene production, cold storage, and other low-temperature industrial applications.
Packing & Storage
- Store in dry, light-protected, shaded, and ventilated areas
- Keep away from heat sources and avoid direct sunlight
- Inner packaging: black polyethylene bags
- Outer packaging: protective cartons
Handling Instructions
- Handle PIR materials gently - avoid rolling, collisions, or heavy pressure during transport
- For pipe and equipment insulation, secure PIR with glass fiber tape or steel bands
- Use saw cutting during installation
