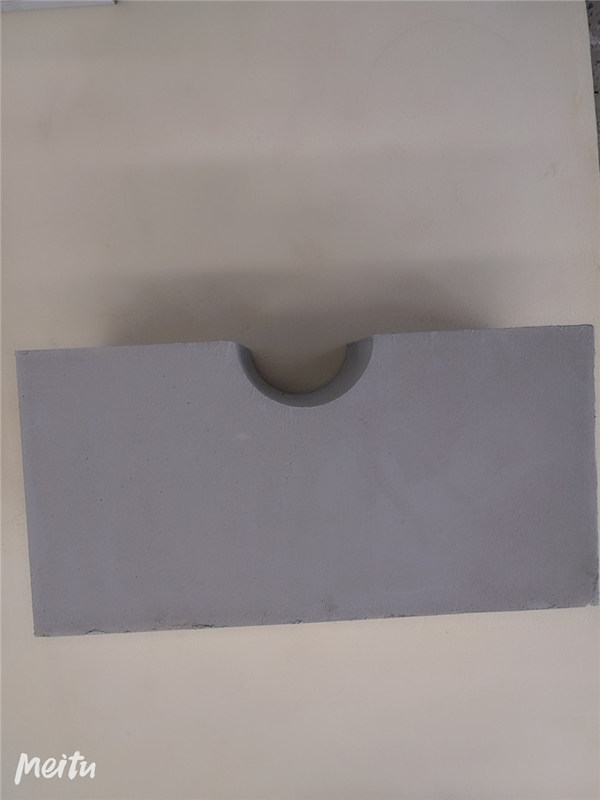

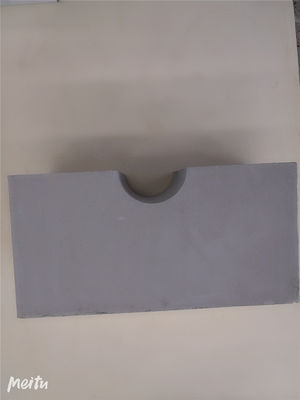

High Strength Hard Polyurethane PU Foam Thermal Insulation For Chemical Industry

Brand Name:	Kaff Rees
MOQ:	20 Cubic Meters
Price:	Negotiable
Payment Terms:	EXW/FOB/CIF
Supply Ability:	According to products

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou, Jiangsu,China

Certification:

SGS

Name:

High Density PU Foam Thermal Insulation

Feature:

High Strength

Tensile Strength:

≥200 KPa

Density:

50±5 Kg/m3

Thermal Conductivity:

≤0.023 W/(m•K)

Application:

Chemical Industry

Packaging Details:

Carton packaging/Wooden case packaging/according to the requirements

Highlight:

Thermal Insulation Hard Polyurethane Foam

Hard PU Foam Thermal Insulation

High Strength Hard Polyurethane Foam

Product Description

High Strength Hard Polyurethane PU Foam Thermal Insulation For Chemical Industry

Technical Property

Item	Unit	Technical Property
Density	kg/m3	50±5
Thermal Conductivity (+20℃)	W/(m•K)	≤0.023
Compressive Strength	kPa	≥200
Tensile Strength	kPa	≥200
Combustibility		Self-extinguishing within 2 seconds after flame taken away
Water Absorption by Vol.	%	≤5
Continuous Service Temp.	℃	-110~+110

Polyurethane (PUR) is a new type of low-temperature thermal insulation material. It is formed by mixing and stirring the main raw materials of polyether or polyester and polyisocyanate and the auxiliary materials of flame retardants, stabilizers and foaming agents. Due to the foaming agent gas with low thermal conductivity in its pores, it has certain self extinguishing property, and is often used for heat preservation in cold and low temperature range.

Application

Due to the advantages of small thermal conductivity, high strength, light weight, sound insulation, shockproof, insulation, strong floatability, stable chemical performance, and convenient construction, it is widely used in petroleum, chemical industry, ethylene, cold storage, food storage, household appliance refrigerator, partition wall and wall board in the construction industry. When used, it can be prefabricated into plate or shel in our plant, and can also be sprayed or poured with foam on site.

Packing and Storage

Be bounded by packing belts. If there are special requirements, it can be customized.
Shall be placed in a waterproof, moisture-proof, light proof, dry, cool and ventilated place, and be away from heat source and strictly prevent exposure to the sun.

Cautions

During transportation shall be handled with care, and shall not roll, impact or bear heavy objects.
Shall be bounded with steel belts when used for the heat preservation of pipes and equipment.
Can be processed by saw blade for the parts to be cut during construction.

Production Flow
