40 Kg/M3 Piping Insulation Polyisocyanurate PIR Foam For Low Temperature Industry
| Place of Origin | Changzhou, Jiangsu,China |
|---|---|
| Brand Name | JSHESOL |
| Certification | SGS |
| Minimum Order Quantity | 20 Cubic Meters |
| Price | Negotiable |
| Packaging Details | Carton packaging/Wooden case packaging/according to the requirements |
| Delivery Time | Negotiable |
| Payment Terms | EXW/FOB/CIF |
| Supply Ability | According to products |
Product Details
| Operating Temperature Range | -196°C To 120°C | Thermal Conductivity | 0.02 W/mK |
|---|---|---|---|
| Material | Polyisocyanurate Foam | Fire Rating | Class 1 |
| Insulation Type | Pipe Insulation | Installation Method | Self-adhesive Or Mechanical Fastening |
| Density | 40 Kg/m3 | Uv Resistance | Excellent |
| Compressive Strength | 250kPa | Moisture Absorption | 0.2% By Volume |
| Water Vapor Permeability | 0.03 Ng/Pa.s.m2 | Oxygen Index | ≥30 |
| Chemical Resistance | Resistant To Most Chemicals | Sound Absorption | Excellent |
| PH Value | ≤12.7 | ||
| Highlight | Piping Insulation Polyisocyanurate Foam,40 Kg/M3 Piping Insulation Foam |
||
Product Description

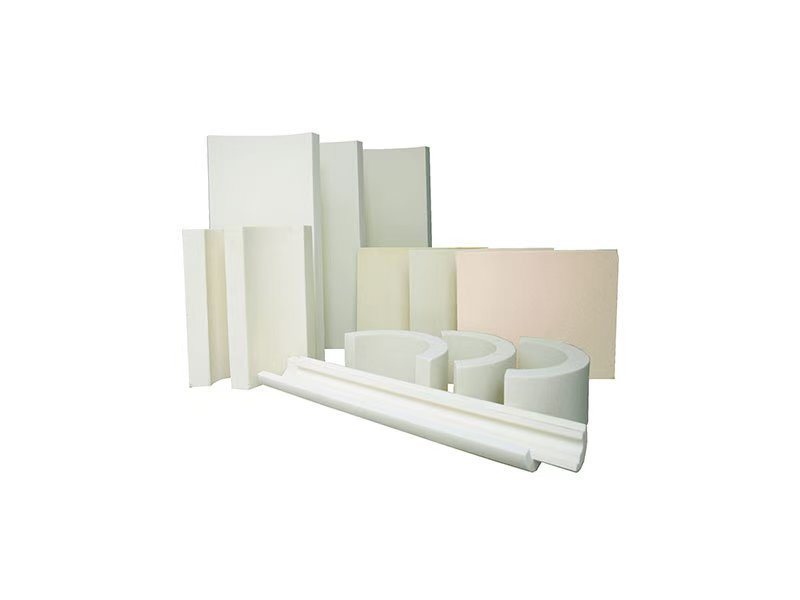

40 Kg/M3 Piping Insulation Polyisocyanurate PIR Foam For Low Temperature Industry
Product Introduction
PIR is a foamed material formed by the reaction of isocyanate and polyether catalyzed by a catalyst. It serves as a new professional-grade cryogenic insulation material, offering superior properties compared to standard polyurethane (PU), such as enhanced physical performance and fire resistance.
Product Characteristics
- Superior physical properties and fire resistance compared to standard polyurethane
- Low thermal conductivity for efficient insulation
- Wide operating temperature range for versatile applications
- Excellent dimensional stability for long-term performance
- High manufacturability allows prefabrication or custom processing into various shapes
Scope of Application
Industrial Applications:
- Energy & Chemicals: Insulation for LNG, air separation, and ethylene pipelines; cold insulation in petrochemical plants
- Marine: Thermal insulation for shipboard systems and hulls
Building & Construction:
- Insulation and energy-saving solutions for architectural envelopes and HVAC systems
Product Parameter
Product Form
