Rigid Polyurethane (PUR) Insulation Material

Brand Name:	JSHESOL
MOQ:	20 Cubic Meters
Price:	Negotiable
Payment Terms:	EXW/FOB/CIF
Supply Ability:	According to products

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou, Jiangsu,China

Certification:

SGS

Operating Temperature Range:

-40°C To 120°C

Thermal Conductivity:

0.02 W/mK

Material:

Polyisocyanurate Foam

Fire Rating:

Class 1

Insulation Type:

Pipe Insulation

Installation Method:

Self-adhesive Or Mechanical Fastening

Density:

30 Kg/m3

Uv Resistance:

Excellent

Compressive Strength:

150 KPa

Moisture Absorption:

0.2% By Volume

Water Vapor Permeability:

0.03 Ng/Pa.s.m2

Length:

6 Feet (1.8 Meters)

Chemical Resistance:

Resistant To Most Chemicals

Sound Absorption:

Excellent

Packaging Details:

Carton packaging/Wooden case packaging/according to the requirements

Highlight:

rigid polyurethane pipe insulation

PUR insulation material

pipe insulation with warranty

Product Description

Rigid Polyurethane (PUR) Insulation Material

Product Overview

Rigid Polyurethane (PUR) is a closed-cell foam insulation material formed through precise formulation and chemical reaction of polyether/polyester and polyisocyanate. Its unique honeycomb structure delivers high closed-cell content (≥95%) and low water absorption, with cells containing low-conductivity blowing gas that effectively blocks heat transfer. As an efficient low-temperature insulation material, PUR maintains stable performance across a wide temperature range from -80°C to +100°C, making it an ideal choice for various cold insulation and low-temperature applications.

Key Features

Excellent Thermal Efficiency Thermal conductivity as low as 0.023 W/(m*K) provides superior insulation, significantly reducing energy consumption
Outstanding Mechanical Strength Compressive strength ≥200 kPa and tensile strength ≥200 kPa ensure structural integrity in demanding applications
Superior Moisture Resistance Closed-cell structure effectively prevents moisture penetration, with water absorption ≤5% by volume, maintaining stable performance
Easy Installation Lightweight and easy to cut, can be prefabricated into pipes, slabs, and other shapes to meet various installation requirements

Technical Parameters

Test Item	Unit	Technical Data	Test Standard
Density	kg/m³	50±5	GB/T 6343
Thermal Conductivity	W/(m*K)	≤0.023	GB/T 10294
Compressive Strength	kPa	≥200	GB/T 8813
Tensile Strength	kPa	≥200	GB/T 9641
Water Absorption	%	≤5	GB/T 8810
Oxygen Index	%	≥30	GB/T 2406.2
Service Temperature	°C	-80～+100	-

Applications

Cold insulation for tanks, equipment, and containers
Thermal insulation for ship cabins and cargo holds
Insulation layer for refrigerated trucks and containers
Cold insulation for industrial pipelines and valves
Building energy efficiency insulation systems

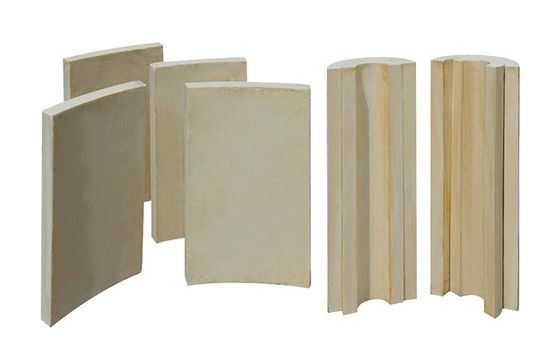

Product Form

Why Choose Our Product

Comprehensive Performance Integrates thermal insulation, waterproofing, and flame retardancy for demanding applications

Long Service Life Stable chemical properties and physical structure ensure lasting durability

Flexible Solutions Custom processing available, supported by professional technical service and after-sales support
