Colorful Polyisocyanurate Rigid Foam Insulation For Liquefied Gas Plant
| Place of Origin | Changzhou, Jiangsu,China |
|---|---|
| Brand Name | Kaff Rees |
| Certification | SGS |
| Minimum Order Quantity | 20 Cubic Meters |
| Price | Negotiable |
| Packaging Details | Carton packaging/Wooden case packaging/according to the requirements |
| Delivery Time | Negotiable |
| Payment Terms | EXW/FOB/CIF |
| Supply Ability | According to products |
Product Details
| Name | Polyisocyanurate Rigid Foam Insulation | Feature | Low Water Absorption |
|---|---|---|---|
| Application | Liquefied Gas Plant | Color | Colorful |
| Service Temp. | -196～+120℃ | Packing | Wooden Case |
| Highlight | Liquefied Gas Plant Rigid Foam Insulation,Colorful Polyisocyanurate Rigid Foam Insulation |
||
Product Description

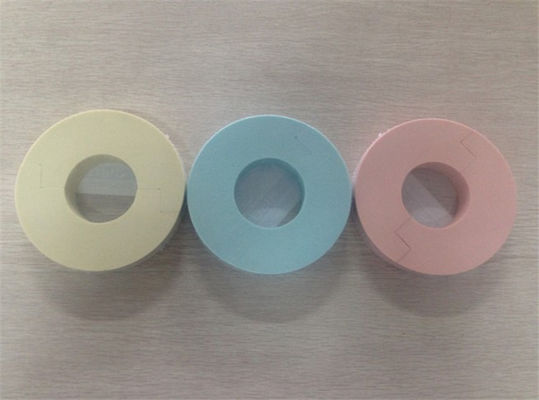

Colorful Polyisocyanurate Rigid Foam Insulation For Liquefied Gas Plant
Kaff Rees provides professional insulation solutions from -196℃ to +400℃, specializing in R&D, production and distribution of insulation materials and pipe support systems. Our complete product portfolio covers all support situations, operational loads, and temperature ranges for industrial insulation systems in petrochemical, coal chemical, LNG, low temperature, cold air, subway, and underground moisture applications.
HDPIR is a foaming polymer combining properties of plastic, rubber and cork. Manufactured from isocyanate, polyether, foaming agent, catalyst and flame retardant, it forms a cellular structure with millions of uniform sealed cells. This delivers superior performance with low density, minimal thermal conductivity, and excellent water resistance compared to traditional materials.
Technical Properties
| Property | Unit | 160K | 224K | 320K | 400K | 500K | 550K |
|---|---|---|---|---|---|---|---|
| Density | kg/m3 | 160 | 224 | 320 | 450 | 500 | 550 |
| Thermal Conductivity (+20℃) | W/(m*K) | ≤0.035 | ≤0.042 | ≤0.050 | ≤0.060 | ≤0.075 | ≤0.085 |
| Water Absorption | % | ≤2.0 | ≤2.0 | ≤2.0 | ≤1.5 | ≤1.5 | ≤1.5 |
| Compressive Strength | MPa | ≥2.0 | ≥3.5 | ≥5 | ≥7 | ≥12 | ≥18 |
| Closed Cell Ratio | % | ≥95 | |||||
| Service Temp. | ℃ | -196~+120 | |||||
Application
Primarily used as cold insulation material in pipe support systems, this product provides both bearing capacity and thermal insulation for pipes and equipment in petrochemical plants, liquefied gas facilities, refrigeration warehouses, and central air conditioning systems.
Packing and Storage
- Store in dry, lightproof, shady, and ventilated areas away from heat sources and direct sunlight
- Pre-assembled with pipe supports in workshop, then wrapped in anti-UV polythene film and packed in wooden cases
