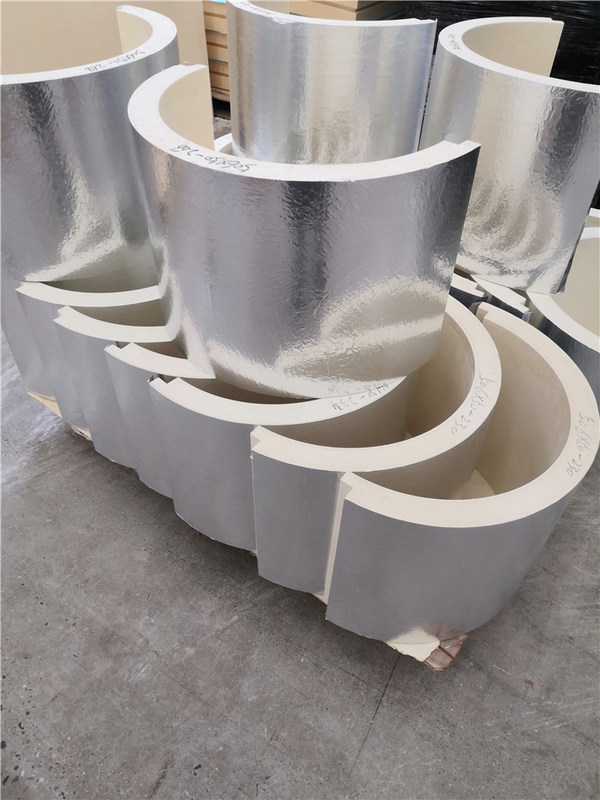

Fire Rated Pipe Insulation Materials Polyisocyanurate Foam Insulation SGS Approved

Brand Name:	Kaff Rees
MOQ:	20 Cubic Meters
Price:	Negotiable
Payment Terms:	EXW/FOB/CIF
Supply Ability:	According to products

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou, Jiangsu,China

Certification:

SGS

Name:

High Density Polyisocyanurate Insulation

Feature:

Low Water Absorption

Application:

Liquefied Gas Plant

Closed Cell Ratio:

≥95%

Service Temp.:

-196～+120℃

Packing:

Wooden Case

Packaging Details:

Carton packaging/Wooden case packaging/according to the requirements

Highlight:

SGS Approved Pipe Insulation Materials

Pipe Insulation Materials Polyisocyanurate Foam

Fire Rated Pipe Insulation Materials

Product Description

Fire Rated Pipe Insulation Materials Polyisocyanurate Foam Insulation SGS Approved

HDPIR is a high-performance foaming polymer combining the properties of plastic, rubber, and cork. Manufactured from premium raw materials including isocyanate, polyether, foaming agent, catalyst, and flame retardant, it undergoes high-speed stirring to create a uniform cellular structure with millions of tiny sealed cells. This advanced material offers superior low density, minimal thermal conductivity, and excellent water resistance, outperforming traditional timber insulation.

Technical Properties

Property	Unit	160K	224K	320K	400K	500K	550K
Density	kg/m3	160	224	320	450	500	550
Thermal Conductivity (+20℃)	W/(m*K)	≤0.035	≤0.042	≤0.050	≤0.060	≤0.075	≤0.085
Water Absorption	%	≤2.0	≤2.0	≤2.0	≤1.5	≤1.5	≤1.5
Compressive Strength	MPa	≥2.0	≥3.5	≥5	≥7	≥12	≥18
Closed Cell Ratio	%	≥95
Service Temp.	℃	-196~+120

Application

This premium insulation material is specifically designed for cold insulation pipe support systems. Its exceptional performance makes it ideal for bearing and heat insulation applications in petrochemical plants, liquefied gas facilities, refrigeration warehouses, and central air conditioning systems.

Packing and Storage

Store in dry, lightproof, shady, and ventilated conditions, away from heat sources and protected from direct sunlight.
Pre-assembled with pipe supports in our workshop. Finished products are wrapped in anti-UV polythene film and securely packed in wooden cases.

Production Flow
