Customized Size High Density Polyisocyanurate Insulation Excellent Fire Resistance

Brand Name:	Kaff Rees
MOQ:	20 Cubic Meters
Price:	Negotiable
Payment Terms:	EXW/FOB/CIF
Supply Ability:	According to products

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou, Jiangsu,China

Certification:

SGS

Name:

High Density Polyisocyanurate Insulation

Feature:

Low Water Absorption

Application:

Liquefied Gas Plant

Closed Cell Ratio:

≥95%

Service Temp.:

-196～+120℃

Packing:

Wooden Case

Packaging Details:

Carton packaging/Wooden case packaging/according to the requirements

Highlight:

polyisocyanurate spray foam insulation

polyisocyanurate foam insulation

Product Description

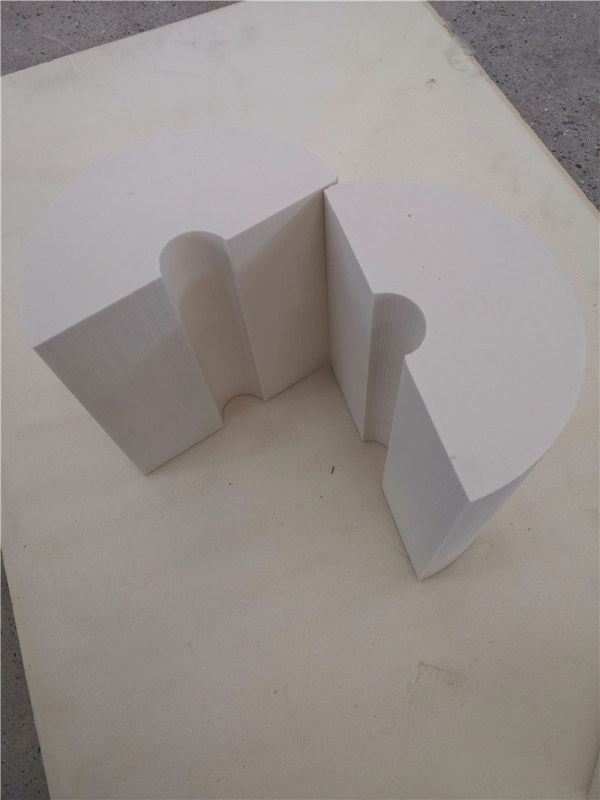

Customized Size High Density Polyisocyanurate Insulation Excellent Fire Resistance

HDPIR is a foaming polymer with properties of plastic, rubber, and cork. Manufactured from isocyanate, polyether, foaming agent, catalyst, and flame retardant, it undergoes high-speed stirring to form a cellular structure with millions of tiny, uniform sealed cells. This results in superior low density, thermal conductivity, and water absorption compared to timber.

Technical Properties

Property	Unit	160K	224K	320K	400K	500K	550K
Density	kg/m3	160	224	320	450	500	550
Thermal Conductivity (+20℃)	W/(m*K)	≤0.035	≤0.042	≤0.050	≤0.060	≤0.075	≤0.085
Water Absorption	%	≤2.0	≤2.0	≤2.0	≤1.5	≤1.5	≤1.5
Compressive Strength	MPa	≥2.0	≥3.5	≥5	≥7	≥12	≥18
Closed Cell Ratio	%	≥95
Service Temp.	℃	-196~+120

Application

Primarily used as cold insulation material for pipe support systems, it provides bearing and heat insulation for pipes and equipment in petrochemical plants, liquefied gas plants, refrigeration warehouses, and central air conditioning systems.

Packing and Storage

Store in a dry, lightproof, shady, and ventilated place, away from heat sources and protected from sun exposure.
Fitted together with pipe supports in the workshop. Finished products are wrapped in anti-ultraviolet polythene film and packed in wooden cases.

Production Flow
