Multipurpose Polyisocyanurate Foam Insulation , Polyisocyanurate Pipe Insulation
| Place of Origin | Changzhou, Jiangsu,China |
|---|---|
| Brand Name | Kaff Rees |
| Certification | SGS |
| Minimum Order Quantity | 20 Cubic Meters |
| Price | Negotiable |
| Packaging Details | Carton packaging/Wooden case packaging/according to the requirements |
| Delivery Time | Negotiable |
| Payment Terms | EXW/FOB/CIF |
| Supply Ability | According to products |
Product Details
| Name | High Density Polyisocyanurate Insulation | Feature | Low Water Absorption |
|---|---|---|---|
| Application | Liquefied Gas Plant | Closed Cell Ratio | ≥95% |
| Service Temp. | -196～+120℃ | Packing | Wooden Case |
| Highlight | polyisocyanurate rigid insulation,polyisocyanurate foam insulation |
||
Product Description

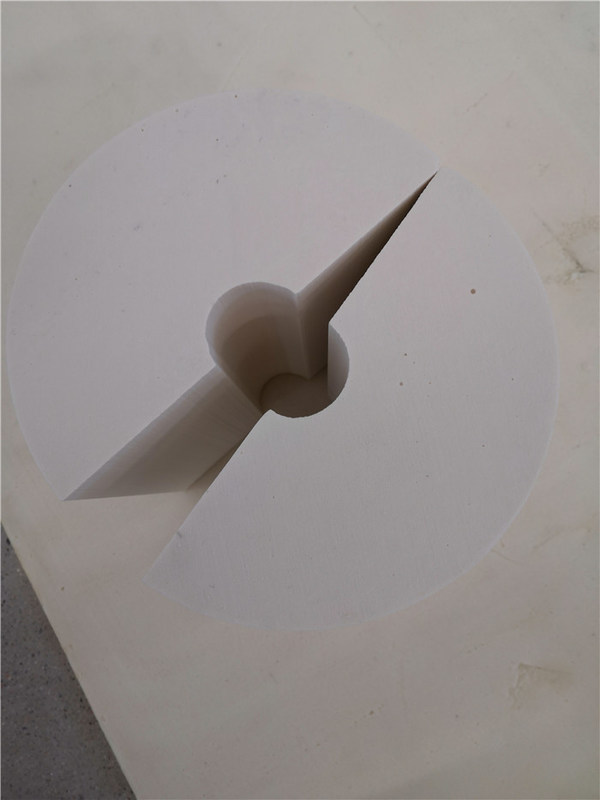

Multipurpose Polyisocyanurate Foam Insulation (Polyisocyanurate Pipe Insulation)
HDPIR is a foaming polymer that combines properties of plastic, rubber, and cork. Manufactured from isocyanate, polyether, foaming agent, catalyst, and flame retardant, it undergoes high-speed stirring to form a cellular structure composed of millions of tiny, uniform sealed cells. This structure delivers superior performance with low density, minimal thermal conductivity, and low water absorption, outperforming traditional timber insulation.
Technical Properties
| Property | Unit | 160K | 224K | 320K | 400K | 500K | 550K |
|---|---|---|---|---|---|---|---|
| Density | kg/m3 | 160 | 224 | 320 | 450 | 500 | 550 |
| Thermal Conductivity (+20℃) | W/(m*K) | ≤0.035 | ≤0.042 | ≤0.050 | ≤0.060 | ≤0.075 | ≤0.085 |
| Water Absorption | % | ≤2.0 | ≤2.0 | ≤2.0 | ≤1.5 | ≤1.5 | ≤1.5 |
| Compressive Strength | MPa | ≥2.0 | ≥3.5 | ≥5 | ≥7 | ≥12 | ≥18 |
| Closed Cell Ratio | % | ≥95 | |||||
| Service Temp. | ℃ | -196~+120 | |||||
Application
Primarily used as cold insulation material for pipe support systems, this product serves as both bearing and heat insulation for pipes and equipment in petrochemical plants, liquefied gas facilities, refrigeration warehouses, and central air conditioning systems.
Packing and Storage
- Store in a dry, lightproof, shady, and ventilated area, away from heat sources and protected from sun exposure.
- Pre-assembled with pipe supports in workshop. Finished products are wrapped in anti-ultraviolet polythene film and packed in wooden cases.
