Fireproof High Density Polyisocyanurate Foam , Polyisocyanurate Rigid Insulation

Brand Name:	Kaff Rees
MOQ:	20 Cubic Meters
Price:	Negotiable
Payment Terms:	EXW/FOB/CIF
Supply Ability:	According to products

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou, Jiangsu,China

Certification:

SGS

Name:

High Density Polyisocyanurate Insulation

Feature:

Low Water Absorption

Application:

Liquefied Gas Plant

Closed Cell Ratio:

≥95%

Service Temp.:

-196～+120℃

Packing:

Wooden Case

Packaging Details:

Carton packaging/Wooden case packaging/according to the requirements

Highlight:

polyisocyanurate spray foam insulation

polyisocyanurate foam insulation

Product Description

Fireproof High Density Polyisocyanurate Foam, Polyisocyanurate Rigid Insulation

HDPIR is a foaming polymer combining properties of plastic, rubber, and cork. Manufactured from isocyanate, polyether, foaming agent, catalyst, and flame retardant, it forms through high-speed stirring into a cellular structure composed of millions of tiny, uniform sealed cells. This material offers superior performance to timber with benefits including low density, minimal thermal conductivity, and low water absorption.

Technical Properties

Property	Unit	160K	224K	320K	400K	500K	550K
Density	kg/m3	160	224	320	450	500	550
Thermal Conductivity (+20℃)	W/(m*K)	≤0.035	≤0.042	≤0.050	≤0.060	≤0.075	≤0.085
Water Absorption	%	≤2.0	≤2.0	≤2.0	≤1.5	≤1.5	≤1.5
Compressive Strength	MPa	≥2.0	≥3.5	≥5	≥7	≥12	≥18
Closed Cell Ratio	%	≥95
Service Temp.	℃	-196~+120

Application

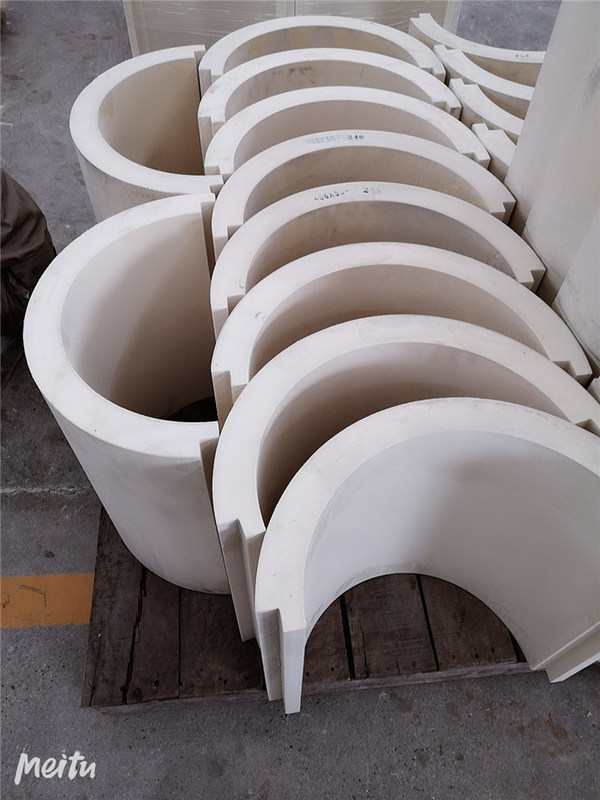

Primarily used as cold insulation material for pipe support systems, this product serves for both bearing and heat insulation in petrochemical plants, liquefied gas facilities, refrigeration warehouses, and central air conditioning systems.

Packing and Storage

Store in dry, lightproof, shady, and ventilated conditions away from heat sources and protected from sun exposure
Fitted with pipe supports in workshop, with finished products wrapped in anti-UV polythene film and packed in wooden cases

Production Flow
