Durable High Density Polyisocyanurate Insulation Excellent Dimension Stability

Brand Name:	Kaff Rees
MOQ:	20 Cubic Meters
Price:	Negotiable
Payment Terms:	EXW/FOB/CIF
Supply Ability:	According to products

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou, Jiangsu,China

Certification:

SGS

Name:

High Density Polyisocyanurate Insulation

Feature:

Low Water Absorption

Application:

Liquefied Gas Plant

Closed Cell Ratio:

≥95%

Service Temp.:

-196～+120℃

Packing:

Wooden Case

Packaging Details:

Carton packaging/Wooden case packaging/according to the requirements

Highlight:

polyisocyanurate spray foam insulation

polyisocyanurate foam insulation

Product Description

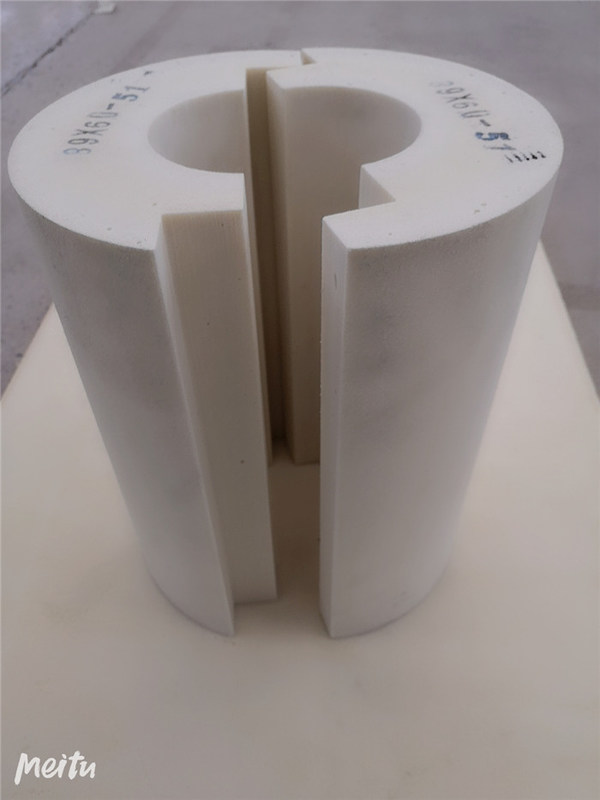

Durable High Density Polyisocyanurate Insulation Excellent Dimension Stability

HDPIR is a foaming polymer combining properties of plastic, rubber and cork. Manufactured from isocyanate, polyether, foaming agent, catalyst and flame retardant, it forms through high-speed stirring into a cellular structure with millions of tiny, uniform sealed cells. This construction delivers superior low density, thermal conductivity and water absorption compared to timber.

Technical Properties

Property	Unit	160K	224K	320K	400K	500K	550K
Density	kg/m3	160	224	320	450	500	550
Thermal Conductivity (+20℃)	W/(m*K)	≤0.035	≤0.042	≤0.050	≤0.060	≤0.075	≤0.085
Water Absorption	%	≤2.0	≤2.0	≤2.0	≤1.5	≤1.5	≤1.5
Compressive Strength	MPa	≥2.0	≥3.5	≥5	≥7	≥12	≥18
Closed Cell Ratio	%	≥95
Service Temp.	℃	-196~+120

Application

Primarily used as cold insulation material for pipe support systems in petrochemical plants, liquefied gas facilities, refrigeration warehouses, and central air conditioning systems, providing both structural support and thermal insulation.

Packing and Storage

Store in dry, shaded, well-ventilated areas away from heat sources and direct sunlight
Pre-assembled with pipe supports in workshop, then wrapped in UV-resistant polythene film and packed in wooden cases

Production Flow
