High Density Polyisocyanurate Pipe Insulation Materials For Pipe Support System

Brand Name:	Kaff Rees
MOQ:	20 Cubic Meters
Price:	Negotiable
Payment Terms:	EXW/FOB/CIF
Supply Ability:	According to products

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou, Jiangsu,China

Certification:

SGS

Name:

High Density Polyisocyanurate Insulation

Feature:

Low Water Absorption

Application:

Liquefied Gas Plant

Closed Cell Ratio:

≥95%

Service Temp.:

-196～+120℃

Packing:

Wooden Case

Packaging Details:

Carton packaging/Wooden case packaging/according to the requirements

Highlight:

Pipe Support System Insulation Materials

Pipe Insulation Materials High Density

Product Description

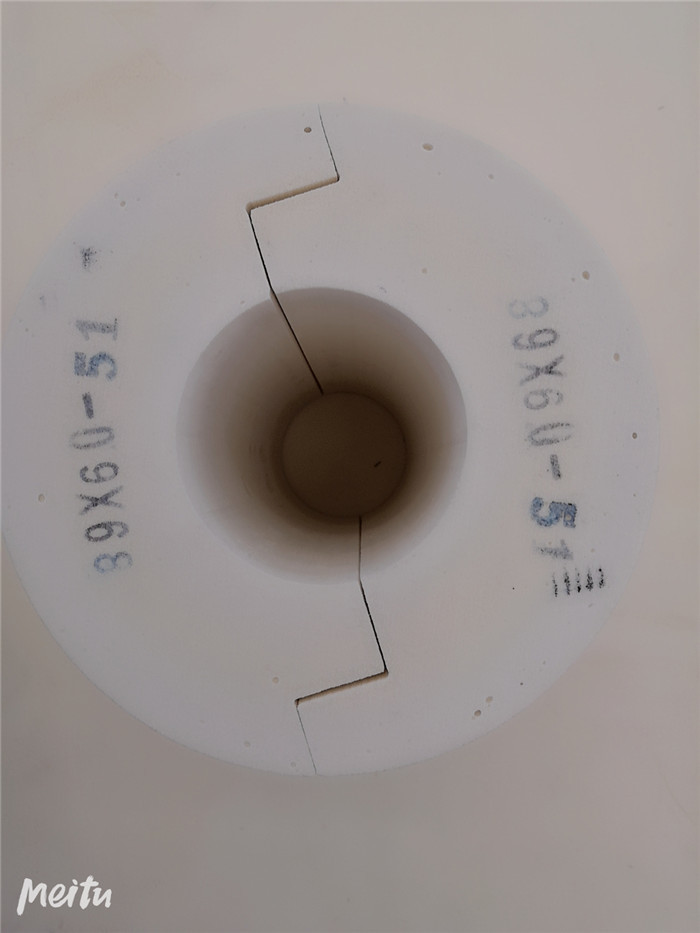

High Density Polyisocyanurate Pipe Insulation Materials For Pipe Support System

HDPIR is a foaming polymer combining properties of plastic, rubber, and cork. Manufactured from isocyanate, polyether, foaming agent, catalyst, and flame retardant, it undergoes high-speed stirring to form a cellular structure with millions of tiny, uniform sealed cells. This material offers superior performance to timber with low density, minimal thermal conductivity, and low water absorption.

Technical Properties

Property	Unit	160K	224K	320K	400K	500K	550K
Density	kg/m3	160	224	320	450	500	550
Thermal Conductivity (+20℃)	W/(m*K)	≤0.035	≤0.042	≤0.050	≤0.060	≤0.075	≤0.085
Water Absorption	%	≤2.0	≤2.0	≤2.0	≤1.5	≤1.5	≤1.5
Compressive Strength	MPa	≥2.0	≥3.5	≥5	≥7	≥12	≥18

Additional Properties:
Closed Cell Ratio: ≥95%
Service Temperature: -196℃ to +120℃

Application

Primarily used as cold insulation material in pipe support systems, this product serves as both bearing and heat insulation for pipes and equipment in petrochemical plants, liquefied gas facilities, refrigeration warehouses, and central air conditioning systems.

Packing and Storage

Store in a dry, lightproof, shady, and ventilated area away from heat sources and protected from sun exposure.
Pre-assembled with pipe supports in workshop. Final products are wrapped in anti-UV polythene film and packed in wooden cases.

Production Flow
