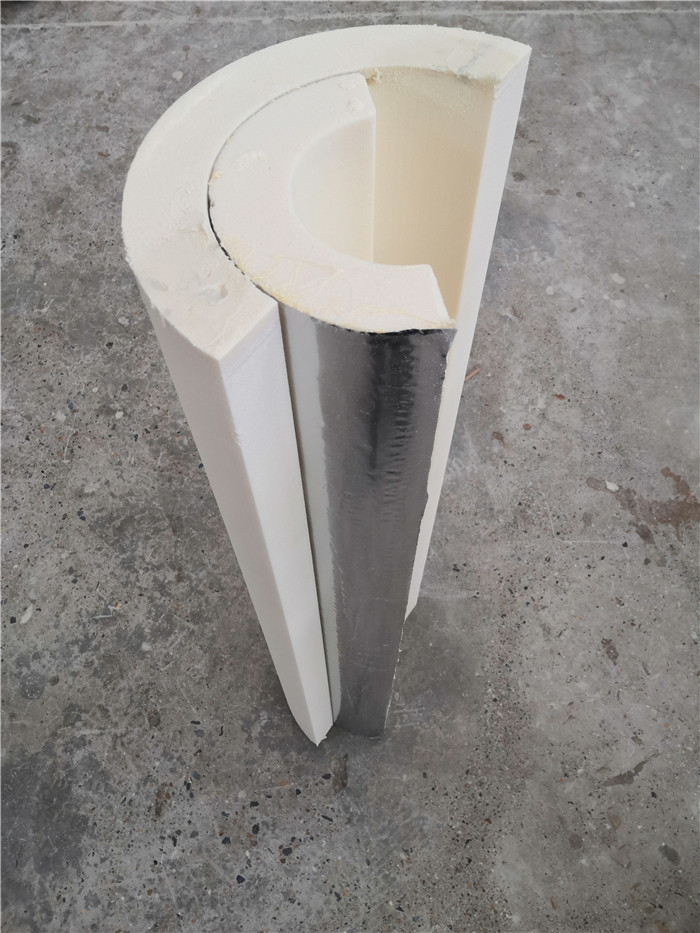

Custom Length Fire Retardant Polyisocyanurate Foam Pipe Insulation Moisture Resistance

Brand Name:	Kaff Rees
MOQ:	20 Cubic Meters
Price:	Negotiable
Payment Terms:	EXW/FOB/CIF
Supply Ability:	According to products

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou, Jiangsu,China

Certification:

SGS

Name:

Polyisocyanurate Foam Pipe Insulation

Feature:

High Dimensional Stability

Application:

Pipe Insulation

Closed Cell Ratio:

≥95%

Service Temp.:

-196～+120℃

Packing:

Wooden Case

Sound Absorption:

High

Chemical Resistance:

Good

Moisture Resistance:

High

Packaging Details:

Carton packaging/Wooden case packaging/according to the requirements

Highlight:

Fire Retardant Polyisocyanurate Foam

Custom Length Polyisocyanurate Foam Insulation

Foam Pipe Insulation Moisture Resistance

Product Description

Custom Length Fire Retardant Polyisocyanurate Foam Pipe Insulation Moisture Resistance

Kaff Rees provides professional insulation solutions from -196℃ to +400℃, specializing in R&D, production, and distribution of insulation materials and pipe support systems. Our comprehensive product portfolio addresses all support scenarios, operational loads, and temperature ranges for industrial insulation systems in petrochemical, coal chemical, LNG, low temperature, cold air, subway, and underground moisture applications.

HDPIR is a foaming polymer combining properties of plastic, rubber, and cork. Manufactured from isocyanate, polyether, foaming agent, catalyst, and flame retardant, it forms a cellular structure with millions of tiny, uniform sealed cells. This structure delivers low density, minimal thermal conductivity, and excellent water absorption resistance, outperforming traditional timber.

Technical Properties

Property	Unit	160K	224K	320K	400K	500K	550K
Density	kg/m3	160	224	320	450	500	550
Thermal Conductivity (+20℃)	W/(m*K)	≤0.035	≤0.042	≤0.050	≤0.060	≤0.075	≤0.085
Water Absorption	%	≤2.0	≤2.0	≤2.0	≤1.5	≤1.5	≤1.5
Compressive Strength	MPa	≥2.0	≥3.5	≥5	≥7	≥12	≥18
Closed Cell Ratio	%	≥95
Service Temp.	℃	-196~+120

Application

Primarily used as cold insulation material for pipe support systems, this product provides bearing and thermal insulation for pipes and equipment in petrochemical plants, liquefied gas facilities, refrigeration warehouses, and central air conditioning systems.

Packing and Storage

Store in a dry, lightproof, shady, and ventilated area away from heat sources and protected from sun exposure.
Pre-assembled with pipe supports in workshop. Finished products are wrapped in anti-ultraviolet polythene film and packed in wooden cases.

Production Flow
