Waterproof Polyisocyanurate Polyiso Rigid Insulation Board Low Thermal Conductivity

Brand Name:	Kaff Rees
MOQ:	20 Cubic Meters
Price:	Negotiable
Payment Terms:	EXW/FOB/CIF
Supply Ability:	According to products

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou, Jiangsu,China

Certification:

SGS

Name:

High Density Polyisocyanurate Insulation

Feature:

Durable

Application:

Liquefied Gas Plant

Closed Cell Ratio:

≥95%

Service Temp.:

-196～+120℃

Packing:

Wooden Case

Packaging Details:

Carton packaging/Wooden case packaging/according to the requirements

Highlight:

Low Thermal Conductivity Polyiso Rigid Insulation

Waterproof Polyiso Rigid Insulation

Product Description

Waterproof Polyisocyanurate Polyiso Rigid Insulation Board Low Thermal Conductivity

Kaff Rees' efficient design and production capabilities enable the manufacturing of high-quality insulation materials, including foam glass and Poly Isocyanurate Foam (PIR), as well as pipe supports. Our China-based factory delivers both standardized and customized products with short lead times.

HDPIR is a foaming polymer combining properties of plastic, rubber, and cork. Composed of isocyanate, polyether, foaming agent, catalyst, and flame retardant, it forms a cellular structure with millions of tiny, uniform sealed cells. This structure provides exceptional benefits including low density, minimal thermal conductivity, and low water absorption, outperforming traditional timber.

Technical Properties

Property	Unit	160K	224K	320K	400K	500K	550K
Density	kg/m3	160	224	320	450	500	550
Thermal Conductivity (+20℃)	W/(m*K)	≤0.035	≤0.042	≤0.050	≤0.060	≤0.075	≤0.085
Water Absorption	%	≤2.0	≤2.0	≤2.0	≤1.5	≤1.5	≤1.5
Compressive Strength	MPa	≥2.0	≥3.5	≥5	≥7	≥12	≥18
Closed Cell Ratio	%	≥95
Service Temp.	℃	-196~+120

Application

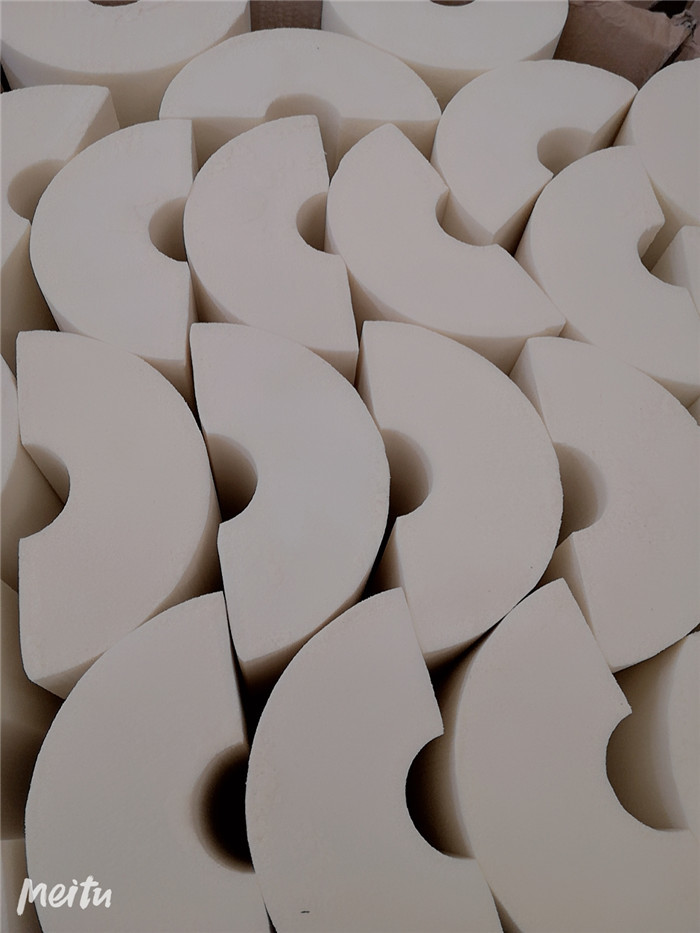

Primarily used as cold insulation material in pipe support systems, this product provides both bearing capacity and thermal insulation for pipes and equipment in petrochemical plants, liquefied gas facilities, refrigeration warehouses, and central air conditioning systems.

Packing and Storage

Store in a dry, lightproof, shady, and ventilated area, away from heat sources and protected from sun exposure.
Products are assembled with pipe supports in our workshop. Finished items are wrapped in anti-UV polythene film and packed in wooden cases.

Production Flow
