OD 0.84 In - 38 In Fixed Pipe Support Insulated Pipe Support Systems Customized

Brand Name:	Kaff Rees
MOQ:	20 Cubic Meters
Price:	Negotiable
Payment Terms:	EXW/FOB/CIF
Supply Ability:	According to products

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou, Jiangsu,China

Certification:

SGS

Name:

Insulated Pipe Support Systems

Feature:

High Performance

Insulation Thicknesses:

0.98 In - 9.84 In

Pipe OD:

0.84 In - 38 In

Cold Insulation Material:

High Density Polyisocyanurate

Application:

Liquefied Gas Plant

Packaging Details:

Carton packaging/Wooden case packaging/according to the requirements

Highlight:

OD 0.84 In Insulated Pipe Support Systems

OD 0.84 In Fixed Pipe Support

Customized Insulated Pipe Support Systems

Product Description

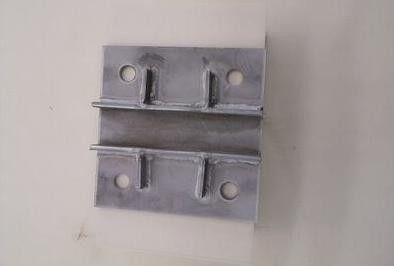

OD 0.84 In - 38 In Fixed Pipe Support Insulated Pipe Support Systems Customized

Fixed pipe support system is designed for supporting insulated pipes and equipment. This system bears various loads from piping systems while serving as part of the pipeline's cold insulation.

System Composition

A complete insulated pipe support system consists of:

Insulated pipe supports
Cold insulation materials (primarily High Density Polyisocyanurate - HDPIR)

Optional auxiliary components include:

Damp proof layer
Metal protective layer
Rubber plate
Metal pipe clamp
Bolt and nut assemblies
Butterfly springs
Cold insulation washers
Polytetrafluoroethylene sliding pairs
Steam insulation resistance

Applications

Primarily used for load-bearing and thermal insulation in:

Petrochemical plants
Liquefied gas plants
Refrigeration warehouses
Central air conditioning systems

Packaging and Storage

All components are pre-assembled in workshop. Finished products are wrapped in anti-UV polyethylene film and packed in wooden cases.

HDPIR Material Properties

High Density Polyisocyanurate (HDPIR) is a foaming polymer combining properties of plastic, rubber, and cork. Formulated from isocyanate, polyether, foaming agents, catalysts, and flame retardants, it features millions of uniform sealed cells offering superior performance to timber with:

Low density
Low thermal conductivity
Low water absorption

Physical Property	Unit	Technical Indicator
Avg. Density	kg/m3	160 \| 224 \| 320 \| 400 \| 500 \| 550
Thermal Conductivity (20°C)	W/m.K	≤0.032 \| ≤0.040 \| ≤0.050 \| ≤0.058 \| ≤0.075 \| ≤0.085
Compressive Strength (normal temperature)	MPa	≥2.0 \| ≥4.0 \| ≥7.0 \| ≥12.0 \| ≥18.0 \| ≥22.0
Water Absorption	%	≤2.0 \| ≤2.0 \| ≤2.0 \| ≤1.5 \| ≤1.5 \| ≤1.5
Closed Cell Content	%	>95
Linear Expansion Coefficient (-165-20°C)	1/K	≤65 x 10^-6
Application Temperature	°C	-306

Production Process
