High Safety Fixed Pipe Support Double Block Pipe Supports For Liquefied Gas Plant

Brand Name:	Kaff Rees
MOQ:	20 Sets
Price:	Negotiable
Payment Terms:	EXW/FOB/CIF
Supply Ability:	According to products

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou, Jiangsu,China

Certification:

SGS

Name:

Double Block Pipe Supports

Service Temp.:

-196~+120℃

HDPIR Density:

160K-500K

Color:

White/Red/Yellow/Green

Compressive Strength:

5-20MPa

Thermal Conductivity:

0.035-0.09 W/(m·K)

Material:

304ss

Vertical Load:

6-120KN

Packaging Details:

Carton packaging/Wooden case packaging/according to the requirements

Highlight:

Double Block Pipe Supports

High Safety Fixed Pipe Support

Liquefied Gas Plant Pipe Support

Product Description

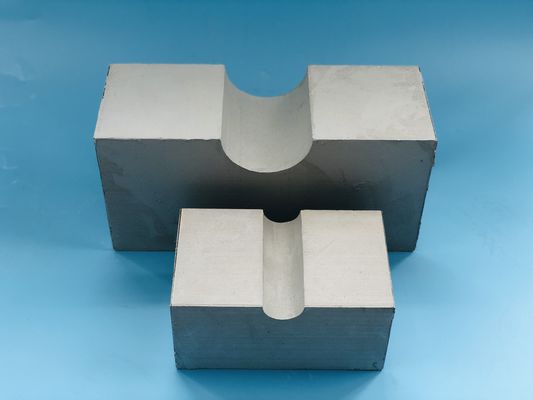

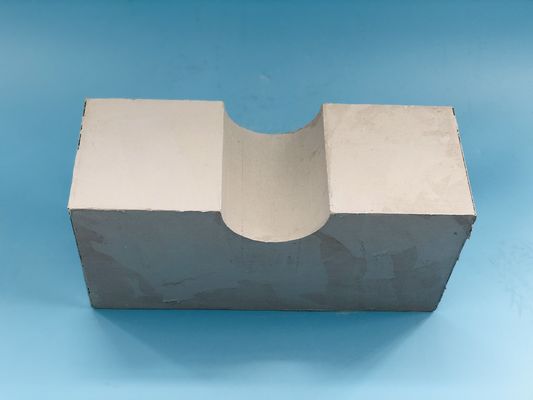

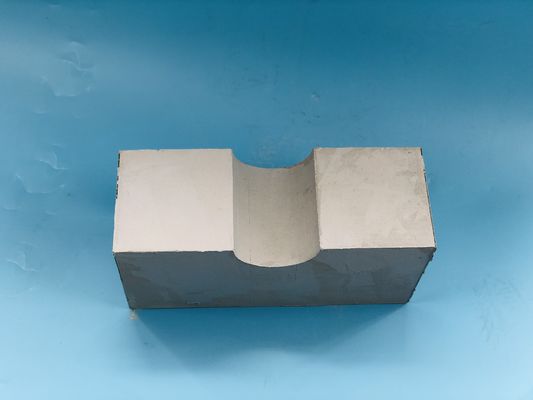

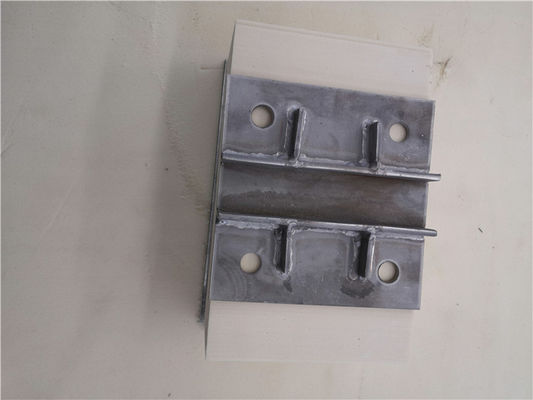

High Safety Fixed Pipe Support Double Block Pipe Supports For Liquefied Gas Plant

Fixed pipe support system is mainly used for the support of insulated pipes and equipment. The insulated pipe support system can bear all kinds of loads brought by the piping system, and it is also a part of the cold insulation of the pipeline.

Compositions

A complete insulated pipe support system is composed of insulated pipe supports and cold insulation materials. The cold insulation material is the most important part of the insulated pipe support system, which is high density polyisocyanurate (HDPIR).

In addition to the main cold insulation materials, the insulated pipe support system can also be equipped with the following auxiliary materials according to the requirements:

Damp proof layer
Metal protective layer
Rubber plate
Metal pipe clamp
Bolt and nut
Butterfly spring
Cold insulation washer
Polytetrafluoroethylene sliding pair
Steam insulation resistance

These components meet design needs and ensure the safe and reliable use of the pipe support system.

Application

It is mainly used for bearing and heat insulation of pipes and equipment in petrochemical plants, liquefied gas plants, refrigeration warehouses and central air conditioning systems.

Packing and Storage

All parts will be fitted together in workshop. Finished product shall be wrapped by anti-ultraviolet polythene film, then packed in wooden case.

HDPIR

HDPIR is a kind of foaming polymer, with the features of plastic, rubber and cork. The raw materials are isocyanate, polyether, foaming agent, catalyst, flame retardant, etc. After high speed stirring, materials react and foam to cellular structure product, composed of millions of tiny and uniform sealed cells. It provide benefits of low density, low thermal conductivity, low water absorption. The performance is better than timber.

Physical Property	Unit	Technical Indicator
Avg. Density	kg/m3	160 \| 224 \| 320 \| 400 \| 500 \| 550
Thermal Conductivity (20C)	W/m.K	≤0.032 \| ≤0.040 \| ≤0.050 \| ≤0.058 \| ≤0.075 \| ≤0.085
Compressive Strength (normal temperature)	MPa	≥2.0 \| ≥4.0 \| ≥7.0 \| ≥12.0 \| ≥18.0 \| ≥22.0
Water Absorption	%	≤2.0 \| ≤2.0 \| ≤2.0 \| ≤1.5 \| ≤1.5 \| ≤1.5
Closed Cell Content	%	>95
Linear Expansion Coefficient (-165-20℃)	1/K	≤65 x 10-6
Application Temperature	℃	-306

Production Flow
