Industrial Pipe Insulation Supports High Thermal Stability Cryogenic Pipe Supports

Brand Name:	Kaff Rees
MOQ:	20 Cubic Meters
Price:	Negotiable
Payment Terms:	EXW/FOB/CIF
Supply Ability:	According to products

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou, Jiangsu,China

Certification:

SGS

Name:

Cryogenic Pipe Supports

Feature:

Good Thermal Stability

Insulation Thicknesses:

0.98 In - 9.84 In

Pipe OD:

0.84 In - 38 In

Cold Insulation Material:

High Density Polyisocyanurate

Application:

Liquefied Gas Plant

Packaging Details:

Carton packaging/Wooden case packaging/according to the requirements

Highlight:

Industrial Cryogenic Pipe Supports

High Thermal Stability Cryogenic Pipe Supports

Industrial Pipe Insulation Supports

Product Description

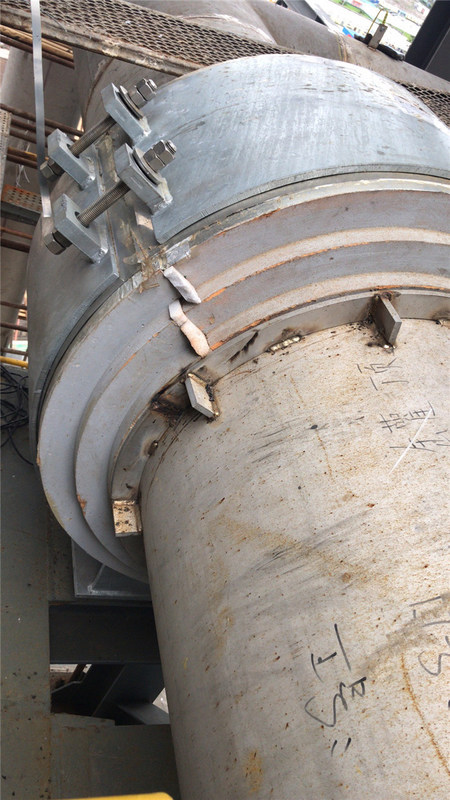

Industrial Pipe Insulation Supports High Thermal Stability Cryogenic Pipe Supports

Limit pipe supports help isolate the pipe from the outside structure for maximum efficiency. They offer an immediate thermal break and eliminate "radiator fin" heat loss or gain, depending on the service temperature of the system. Pre-insulated supports function to keep heat in or out of the pipe as desired depending on the service temperature of the pipe.

Compositions

A complete insulated pipe support system is composed of insulated pipe supports and cold insulation materials. The cold insulation material is the most important part of the insulated pipe support system, which is high density polyisocyanurate (HDPIR).

In addition to the main cold insulation materials, the insulated pipe support system can also be equipped with the following auxiliary materials according to the requirements:

Damp proof layer
Metal protective layer
Rubber plate
Metal pipe clamp
Bolt and nut
Butterfly spring
Cold insulation washer
Polytetrafluoroethylene sliding pair
Steam insulation resistance

These components meet design needs and ensure the safe and reliable use of the pipe support system.

Application

Mainly used for bearing and heat insulation of pipes and equipment in:

Petrochemical plants
Liquefied gas plants
Refrigeration warehouses
Central air conditioning systems

Packing and Storage

All parts will be fitted together in workshop. Finished product shall be wrapped by anti-ultraviolet polythene film, then packed in wooden case.

HDPIR Material Properties

HDPIR is a foaming polymer with features of plastic, rubber and cork. The raw materials are isocyanate, polyether, foaming agent, catalyst, and flame retardant. After high speed stirring, materials react and foam to cellular structure product, composed of millions of tiny and uniform sealed cells. It provides benefits of low density, low thermal conductivity, and low water absorption. The performance is better than timber.

Physical Property	Unit	Technical Indicator
Avg. Density	kg/m3	160 \| 224 \| 320 \| 400 \| 500 \| 550
Thermal Conductivity (20°C)	W/m.K	≤0.032 \| ≤0.040 \| ≤0.050 \| ≤0.058 \| ≤0.075 \| ≤0.085
Compressive Strength (normal temperature)	MPa	≥2.0 \| ≥4.0 \| ≥7.0 \| ≥12.0 \| ≥18.0 \| ≥22.0
Water Absorption	%	≤2.0 \| ≤2.0 \| ≤2.0 \| ≤1.5 \| ≤1.5 \| ≤1.5
Closed Cell Content	%	>95
Linear Expansion Coefficient (-165-20°C)	1/K	≤65 x 10^-6
Application Temperature	°C	-306

Production Flow
