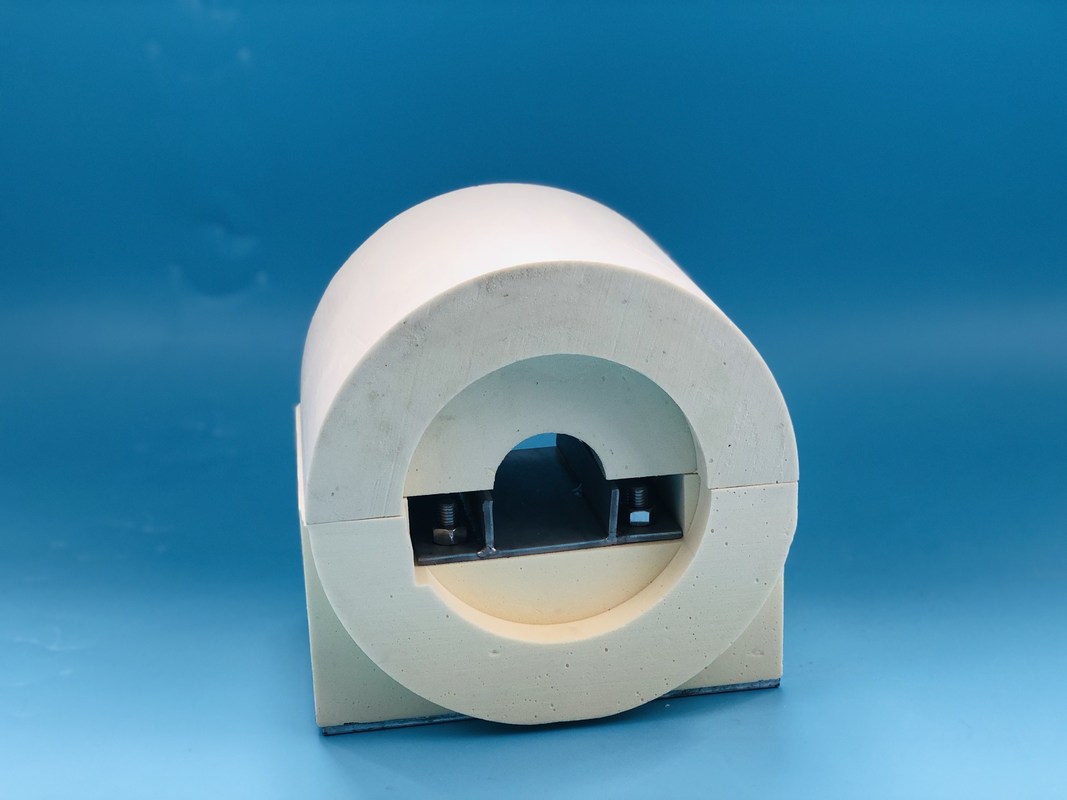

Fixed Pipe Insulation Supports high density polyisocyanurate With Upper Cover

Brand Name:	Kaff Rees
MOQ:	20 Sets
Price:	Negotiable
Payment Terms:	EXW/FOB/CIF
Supply Ability:	According to products

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou, Jiangsu,China

Certification:

SGS

Name:

Pipe Supports With Upper Cover

Service Temp.:

-196~+120℃

HDPIR Density:

160K-500K

Color:

White/Red/Yellow/Green

Compressive Strength:

2-14MPa

Thermal Conductivity (+20℃):

0.035-0.09 W/(m·K)

Thermal Conductivity (-196℃):

0.0232-0.0472 W/(m·K)

Material:

304SS

Vertical Load:

5-100KN

Packaging Details:

Carton packaging/Wooden case packaging/according to the requirements

Highlight:

high density polyisocyanurate Pipe Insulation Supports

Fixed Pipe Insulation Supports

Pipe Insulation Supports With Upper Cover

Product Description

Fixed Pipe Insulation Supports High Density Polyisocyanurate With Upper Cover

Fixed pipe support system is primarily designed for supporting insulated pipes and equipment. This system effectively bears various loads from piping systems while serving as an integral part of pipeline cold insulation.

Compositions

A complete insulated pipe support system consists of insulated pipe supports and cold insulation materials. The core component is high density polyisocyanurate (HDPIR) insulation material.

The system can be enhanced with optional auxiliary materials to meet specific design requirements:

Damp proof layer
Metal protective layer
Rubber plate
Metal pipe clamp
Bolt and nut assemblies
Butterfly spring
Cold insulation washer
Polytetrafluoroethylene sliding pair
Steam insulation resistance

Application

This system is widely used for load-bearing and thermal insulation in various industrial settings including petrochemical plants, liquefied gas facilities, refrigeration warehouses, and central air conditioning systems.

Packing and Storage

All components are pre-assembled in our workshop. Finished products are wrapped in anti-UV polyethylene film and securely packed in wooden cases for protection during transportation and storage.

HDPIR Material Properties

High Density Polyisocyanurate (HDPIR) is a foaming polymer combining characteristics of plastic, rubber, and cork. Composed of isocyanate, polyether, foaming agents, catalysts, and flame retardants, it forms a cellular structure with millions of tiny, uniform sealed cells. This structure provides exceptional thermal performance with low density, minimal thermal conductivity, and low water absorption - outperforming traditional timber materials.

Physical Property	Unit	Technical Indicator
Avg. Density	kg/m3	160 \| 224 \| 320 \| 400 \| 500 \| 550
Thermal Conductivity (20°C)	W/m.K	≤0.032 \| ≤0.040 \| ≤0.050 \| ≤0.058 \| ≤0.075 \| ≤0.085
Compressive Strength (normal temperature)	MPa	≥2.0 \| ≥4.0 \| ≥7.0 \| ≥12.0 \| ≥18.0 \| ≥22.0
Water Absorption	%	≤2.0 \| ≤2.0 \| ≤2.0 \| ≤1.5 \| ≤1.5 \| ≤1.5
Closed Cell Content	%	>95
Linear Expansion Coefficient (-165-20°C)	1/K	≤65 x 10^-6
Application Temperature	°C	-306

Production Flow
