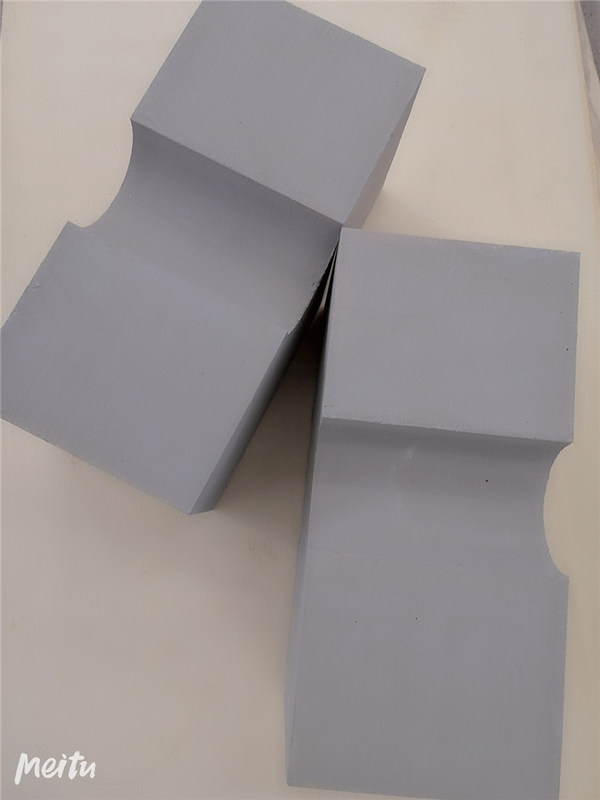

Eco Friendly High Density PU Foam Block Small Thermal Conductivity

Eco Friendly High Density PU Foam Block Small Thermal Conductivity

Brand Name: Kaff Rees
MOQ: 20 Cubic Meters
Price: Negotiable
Payment Terms: EXW/FOB/CIF
Supply Ability: According to products
Detail Information
Place of Origin:
Changzhou, Jiangsu,China
Certification:
SGS
Name:
High Density PU Foam Block
Feature:
Eco Friendly
Tensile Strength:
≥200 KPa
Density:
50±5 Kg/m3
Thermal Conductivity:
≤0.023 W/(m•K)
Application:
Chemical Industry
Packaging Details:
Carton packaging/Wooden case packaging/according to the requirements
Highlight:

high density pu foam

,

rigid polyurethane foam blocks

Product Description
Eco Friendly High Density PU Foam Block Small Thermal Conductivity
Technical Properties
Item Unit Technical Property
Density kg/m3 50±5
Thermal Conductivity (+20℃) W/(m•K) ≤0.023
Compressive Strength kPa ≥200
Tensile Strength kPa ≥200
Combustibility Self-extinguishing within 2 seconds after flame taken away
Water Absorption by Vol. % ≤5
Continuous Service Temp. -110~+110
Applications

This high-density polyurethane foam features small thermal conductivity, high strength, light weight, sound insulation, shockproof properties, insulation, strong floatability, stable chemical performance, and convenient construction. It is widely used in:

  • Petroleum and chemical industries
  • Ethylene production
  • Cold storage and food storage facilities
  • Household appliance refrigerator insulation
  • Construction industry partition walls and wall boards

The material can be prefabricated into plates or shells in our plant, or sprayed/poured with foam on site.

Polyurethane (PUR) is a low-temperature thermal insulation material formed by mixing polyether/polyester, polyisocyanate, and auxiliary materials including flame retardants, stabilizers and foaming agents. The foaming agent gas in its pores provides low thermal conductivity and self-extinguishing properties, making it ideal for cold and low-temperature range heat preservation.

Packing and Storage
  • Standard packing includes binding with packing belts (custom options available)
  • Must be stored in waterproof, moisture-proof, light-proof, dry, cool and ventilated areas
  • Keep away from heat sources and avoid direct sunlight exposure
Cautions
  • Handle with care during transportation - avoid rolling, impact or heavy loads
  • Use steel belts when applying for pipe and equipment heat preservation
  • Can be cut with saw blades during construction as needed
