Polyisocyanurate Foam（PIR）
| Place of Origin | Changzhou, Jiangsu,China |
|---|---|
| Brand Name | JSHESOL |
| Certification | SGS |
| Minimum Order Quantity | 20 Cubic Meters |
| Price | Negotiable |
| Packaging Details | Carton packaging/Wooden case packaging/according to the requirements |
| Delivery Time | Negotiable |
| Payment Terms | EXW/FOB/CIF |
| Supply Ability | According to products |
Product Details
| Operating Temperature Range | -40°C To 120°C | Thermal Conductivity | 0.02 W/mK |
|---|---|---|---|
| Material | Polyisocyanurate Foam | Fire Rating | Class 1 |
| Insulation Type | Pipe Insulation | Installation Method | Self-adhesive Or Mechanical Fastening |
| Density | 30 Kg/m3 | Uv Resistance | Excellent |
| Compressive Strength | 150 KPa | Moisture Absorption | 0.2% By Volume |
| Water Vapor Permeability | 0.03 Ng/Pa.s.m2 | Length | 6 Feet (1.8 Meters) |
| Chemical Resistance | Resistant To Most Chemicals | Sound Absorption | Excellent |
| Highlight | PIR foam pipe insulation,polyisocyanurate pipe insulation,PIR foam insulation material |
||
Product Description

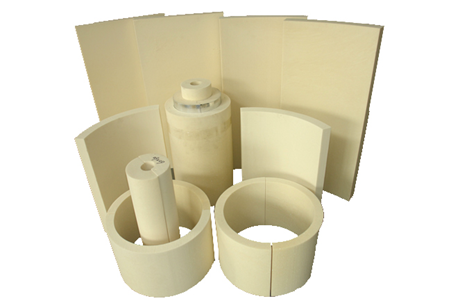

Polyisocyanurate Foam (PIR)
Why Choose Us?
- We're the largest manufacturer and leader of this industry in China.
- Various styles for you to choose.
- High and stable quality with competitive price.
- Short lead time.
- Sample orders or smaller quantities are welcome.
- Best service will be offered to our clients.
Product Introduction
Polyisocyanurate (PIR) is a foaming material made by the polymerization of isocyanate and polyether. Its physical and fire resistance properties are superior to polyurethane. With advantages including small thermal conductivity and high dimensional stability, it belongs to the category of organic hard thermal insulation materials.
Features
- Fire resistance rated as B1
- Operating temperature range: -196℃ to +120℃
- Excellent dimensional stability
- Can be custom-cut in panels and pipes according to customer requirements
Technical Properties
| Item | Unit | Technical Data | Test Mode |
|---|---|---|---|
| Density | kg/m³ | ≥40 | ASTM D1622 / ISO 845 |
| Thermal Conductivity | W/(m*K) |
≤0.035 (+100℃) ≤0.029 (+50℃) ≤0.025 (+10℃) ≤0.024 (0℃) ≤0.023 (-50℃) ≤0.022 (-100℃) ≤0.017 (-150℃) ≤0.016 (-170℃) |
ASTM C177 |
| Compressive Strength | kPa |
+23℃: ≥200 -165℃: ≥280 |
ASTM D 1621 |
| Tensile Strength | kPa |
+23℃: ≥320 -165℃: ≥265 |
ASTM D 1623 |
| Flame Spread Index | ﹤25 | ASTM E84 | |
| Oxygen index | ≥30 | GB/T 2406.2 | |
| Water Absorption by Vol. | % | ≤2 | ASTM D2842 |
| Water Vapor Permeability | ng/(Pa*s*m) | ≤5.5 | ASTM E96 |
| Closed Cell Ratio | % | ≥95 | ASTM D6226 |
| Lineal Thermal Expansion Coefficient | m/(m*K) | ≤70×10⁻⁶ | ASTM D696 |
| PH Value | 5.5-7 | ASTM C871 | |
| Chloride Content | ppm | ≤60 | GB/T 11835 |
| Elastic Modulus | MPa | ≤16 | ASTM D1623 |
| Service Temp. | ℃ | -196～+120 |
Application
PIR is an ideal organic low-temperature heat insulation material with advantages of small thermal conductivity and high dimensional stability. Suitable for a wide temperature range, it is widely used in LNG, ethylene, cold storage, and other low-temperature industries.
Typical PIR Insulation System Structure
- PIR Shell: inner layer + middle layer (if necessary) + outer layer
- Secondary Vapor Barrier: PAP aluminum foil
- Main Vapor Barrier: mastic + fiberglass meshes + mastic
- Metal Protective Layer: aluminum alloy plate, stainless steel plate, aluminized steel plate, GRP
- Sealant: HS-10-02, Foster 95-50, etc
- Strapping Material: stainless steel tape, sub sensitive tape
Packing and Storage
- Store in a dry, lightproof, shady, and ventilated place, away from heat sources and protected from sun exposure.
- Inner package: black polyethylene bags; Outer package: cartons.
Cautions
- Handle PIR gently, avoiding rolling, collision, and heavy pressure during movement.
- When applied to pipe and equipment insulation, fasten PIR with glass fiber tape or steel band.
- Cut with a saw during application.
