Polyisocyanurate Foam（PIR）

Brand Name:	JSHESOL
MOQ:	20 Cubic Meters
Price:	Negotiable
Payment Terms:	EXW/FOB/CIF
Supply Ability:	According to products

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou, Jiangsu,China

Certification:

SGS

Operating Temperature Range:

-40°C To 120°C

Thermal Conductivity:

0.02 W/mK

Material:

Polyisocyanurate Foam

Fire Rating:

Class 1

Insulation Type:

Pipe Insulation

Installation Method:

Self-adhesive Or Mechanical Fastening

Density:

30 Kg/m3

Uv Resistance:

Excellent

Compressive Strength:

150 KPa

Moisture Absorption:

0.2% By Volume

Water Vapor Permeability:

0.03 Ng/Pa.s.m2

Length:

6 Feet (1.8 Meters)

Chemical Resistance:

Resistant To Most Chemicals

Sound Absorption:

Excellent

Packaging Details:

Carton packaging/Wooden case packaging/according to the requirements

Highlight:

PIR foam pipe insulation

polyisocyanurate pipe insulation

PIR foam insulation material

Product Description

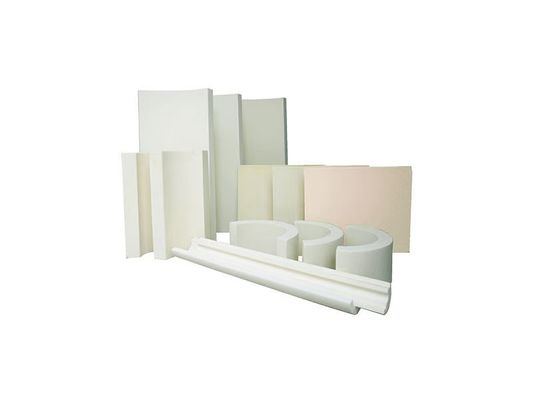

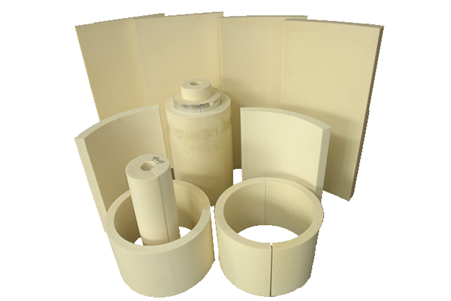

Polyisocyanurate Foam (PIR)

Why Choose Us?

We're the largest manufacturer and leader of this industry in China.
Various styles for you to choose.
High and stable quality with competitive price.
Short lead time.
Sample orders or smaller quantities are welcome.
Best service will be offered to our clients.

Product Introduction

Polyisocyanurate (PIR) is a foaming material made by the polymerization of isocyanate and polyether. Its physical and fire resistance properties are superior to polyurethane. With advantages including small thermal conductivity and high dimensional stability, it belongs to the category of organic hard thermal insulation materials.

Features

Fire resistance rated as B1
Operating temperature range: -196℃ to +120℃
Excellent dimensional stability
Can be custom-cut in panels and pipes according to customer requirements

Technical Properties

Item	Unit	Technical Data	Test Mode
Density	kg/m³	≥40	ASTM D1622 / ISO 845
Thermal Conductivity	W/(m*K)	≤0.035 (+100℃) ≤0.029 (+50℃) ≤0.025 (+10℃) ≤0.024 (0℃) ≤0.023 (-50℃) ≤0.022 (-100℃) ≤0.017 (-150℃) ≤0.016 (-170℃)	ASTM C177
Compressive Strength	kPa	+23℃: ≥200 -165℃: ≥280	ASTM D 1621
Tensile Strength	kPa	+23℃: ≥320 -165℃: ≥265	ASTM D 1623
Flame Spread Index		﹤25	ASTM E84
Oxygen index		≥30	GB/T 2406.2
Water Absorption by Vol.	%	≤2	ASTM D2842
Water Vapor Permeability	ng/(Pasm)	≤5.5	ASTM E96
Closed Cell Ratio	%	≥95	ASTM D6226
Lineal Thermal Expansion Coefficient	m/(m*K)	≤70×10⁻⁶	ASTM D696
PH Value		5.5-7	ASTM C871
Chloride Content	ppm	≤60	GB/T 11835
Elastic Modulus	MPa	≤16	ASTM D1623
Service Temp.	℃	-196～+120

Application

PIR is an ideal organic low-temperature heat insulation material with advantages of small thermal conductivity and high dimensional stability. Suitable for a wide temperature range, it is widely used in LNG, ethylene, cold storage, and other low-temperature industries.

Typical PIR Insulation System Structure

PIR Shell: inner layer + middle layer (if necessary) + outer layer
Secondary Vapor Barrier: PAP aluminum foil
Main Vapor Barrier: mastic + fiberglass meshes + mastic
Metal Protective Layer: aluminum alloy plate, stainless steel plate, aluminized steel plate, GRP
Sealant: HS-10-02, Foster 95-50, etc
Strapping Material: stainless steel tape, sub sensitive tape

Packing and Storage

Store in a dry, lightproof, shady, and ventilated place, away from heat sources and protected from sun exposure.
Inner package: black polyethylene bags; Outer package: cartons.

Cautions

Handle PIR gently, avoiding rolling, collision, and heavy pressure during movement.
When applied to pipe and equipment insulation, fasten PIR with glass fiber tape or steel band.
Cut with a saw during application.

Production Flow

polyisocyanurate insulation board

pir foam insulation boards

pir thermal insulation board
