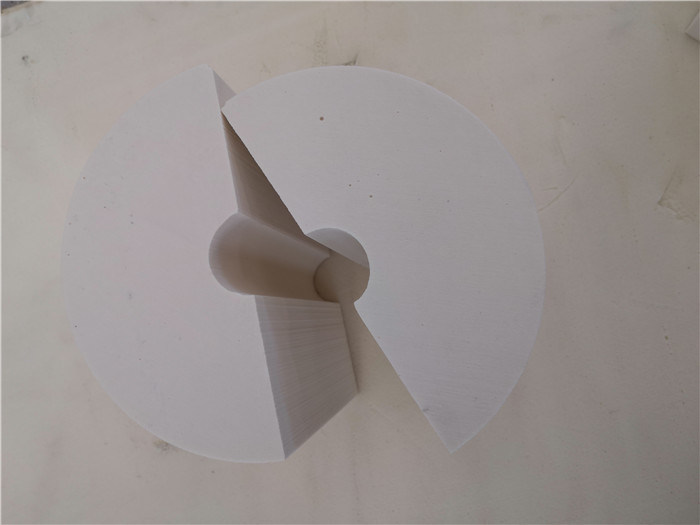

Customized Size Polyiso Insulation Panels Closed Cell Foam Pipe Insulation

Brand Name:	Kaff Rees
MOQ:	20 Cubic Meters
Price:	Negotiable
Payment Terms:	EXW/FOB/CIF
Supply Ability:	According to products

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou, Jiangsu,China

Certification:

SGS

Feature:

Customized Size

Application:

Liquefied Gas Plant

Name:

High Density Polyisocyanurate Insulation

Closed Cell Ratio:

≥95%

Service Temp.:

-196～+120℃

Packing:

Wooden Case

Packaging Details:

Carton packaging/Wooden case packaging/according to the requirements

Highlight:

Customized Closed Cell Foam Pipe Insulation

Customized Size Polyiso Insulation Panels

Product Description

Customized Size Polyiso Insulation Panels Closed Cell Foam Pipe Insulation

With our factory based in China, Kaff Rees specializes in efficient design and production of high-quality insulation materials including foam glass and Poly Isocyanurate Foam (PIR). We offer both standardized products and customized solutions with short lead times directly from our manufacturing facility.

HDPIR is a foaming polymer that combines properties of plastic, rubber, and cork. Manufactured from isocyanate, polyether, foaming agent, catalyst, and flame retardant, it undergoes high-speed stirring to form a cellular structure with millions of uniform sealed cells. This results in superior performance with high density, low thermal conductivity, and minimal water absorption - outperforming traditional timber insulation.

Technical Properties

Property	Unit	160K	224K	320K	400K	500K	550K
Density	kg/m3	160	224	320	450	500	550
Thermal Conductivity (+20℃)	W/(m*K)	≤0.035	≤0.042	≤0.050	≤0.060	≤0.075	≤0.085
Water Absorption	%	≤2.0	≤2.0	≤2.0	≤1.5	≤1.5	≤1.5
Compressive Strength	MPa	≥2.0	≥3.5	≥5	≥7	≥12	≥18
Closed Cell Ratio		≥95%
Service Temp.		-196~+120℃

Application

Primarily used as cold insulation material in pipe support systems, our products are ideal for bearing and heat insulation applications in petrochemical plants, liquefied gas facilities, refrigeration warehouses, and central air conditioning systems.

Packing and Storage

Store in dry, lightproof, shady, and ventilated conditions away from heat sources and protected from sun exposure
Products are assembled with pipe supports in our workshop, then wrapped in anti-UV polythene film and packed in wooden cases

Production Flow
