OEM Polyisocyanurate Pipe Insulation Materials High Density Polyiso Rigid Foam
| Place of Origin | Changzhou, Jiangsu,China |
|---|---|
| Brand Name | Kaff Rees |
| Certification | SGS |
| Minimum Order Quantity | 20 Cubic Meters |
| Price | Negotiable |
| Packaging Details | Carton packaging/Wooden case packaging/according to the requirements |
| Delivery Time | Negotiable |
| Payment Terms | EXW/FOB/CIF |
| Supply Ability | According to products |
Product Details
| Name | Polyisocyanurate Pipe Insulation | Feature | Low Water Absorption |
|---|---|---|---|
| Application | Liquefied Gas Plant | Closed Cell Ratio | ≥95% |
| Service Temp. | -196～+120℃ | Packing | Wooden Case |
| Highlight | Polyisocyanurate Pipe Insulation Materials,High Density Polyiso Rigid Foam |
||
Product Description

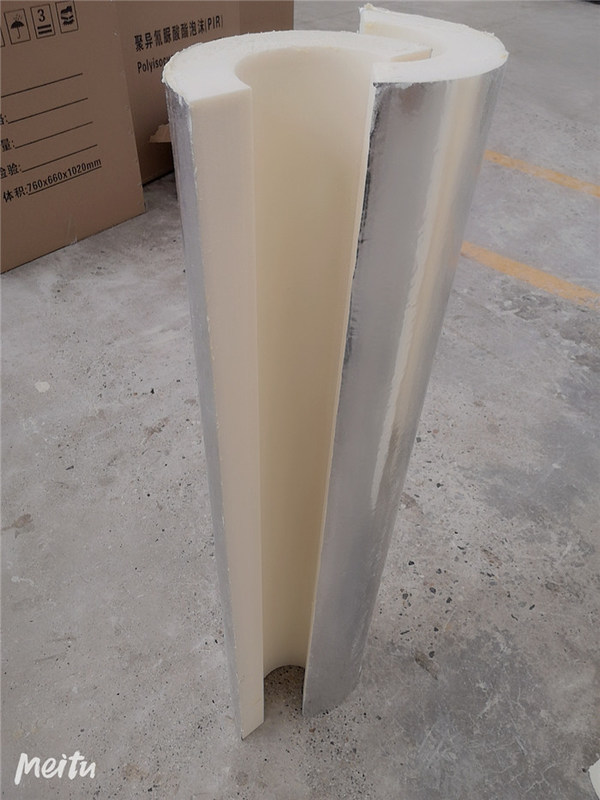

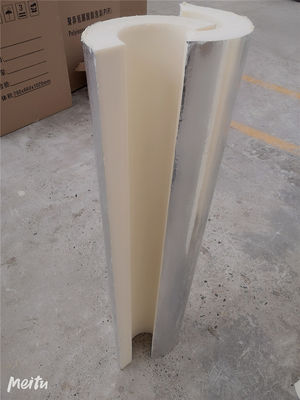

OEM Polyisocyanurate Pipe Insulation Materials High Density Polyiso Rigid Foam
Founded in 2012, Kaff Rees' factory is a rapidly growing manufacturer specializing in insulation solutions and systems. Through persistent innovation, we have become a national leader in insulation systems. Kaff Rees was established to expand our international business, providing industrial insulation, civil building insulation, and anti-corrosion insulation engineering products and services worldwide.
HDPIR is a foaming polymer combining properties of plastic, rubber, and cork. Manufactured from isocyanate, polyether, foaming agent, catalyst, and flame retardant, it undergoes high-speed stirring to create a cellular structure composed of millions of tiny, uniform sealed cells. This structure delivers exceptional benefits including low density, minimal thermal conductivity, and low water absorption, outperforming traditional timber.
Technical Properties
| Property | Unit | 160K | 224K | 320K | 400K | 500K | 550K |
|---|---|---|---|---|---|---|---|
| Density | kg/m3 | 160 | 224 | 320 | 450 | 500 | 550 |
| Thermal Conductivity (+20℃) | W/(m*K) | ≤0.035 | ≤0.042 | ≤0.050 | ≤0.060 | ≤0.075 | ≤0.085 |
| Water Absorption | % | ≤2.0 | ≤2.0 | ≤2.0 | ≤1.5 | ≤1.5 | ≤1.5 |
| Compressive Strength | MPa | ≥2.0 | ≥3.5 | ≥5 | ≥7 | ≥12 | ≥18 |
| Closed Cell Ratio | % | ≥95 | |||||
| Service Temp. | ℃ | -196~+120 | |||||
Application
Primarily used as cold insulation material for pipe support systems, this product serves both bearing and heat insulation functions in petrochemical plants, liquefied gas plants, refrigeration warehouses, and central air conditioning systems.
Packing and Storage
- Store in a dry, lightproof, shady, and ventilated area, away from heat sources and protected from sun exposure.
- Fitted with pipe supports in workshop. Finished products are wrapped in anti-ultraviolet polythene film and packed in wooden cases.
