High Safety Insulated Pipe Supports , Cryogenic Pipe Supports High Durability

Brand Name:	Kaff Rees
MOQ:	20 Cubic Meters
Price:	Negotiable
Payment Terms:	EXW/FOB/CIF
Supply Ability:	According to products

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou, Jiangsu,China

Certification:

SGS

Name:

Cryogenic Pipe Supports

Feature:

High Durability

Application:

Petrochemical Plant

Cold Insulation Material:

HDPIR

Insulation Thicknesses:

25mm - 250mm

Packing:

Wooden Case

Packaging Details:

Carton packaging/Wooden case packaging/according to the requirements

Highlight:

pipe insulation supports

insulated pipe hangers

Product Description

High Safety Insulated Pipe Supports, Cryogenic Pipe Supports High Durability

Insulated pipe supports offer easier installation than non-insulated supports. Weld-on supports require expensive labor rates for time-consuming welds and additional inspection time by quality control. Insulated pipe supports bolt onto the pipe for fast and secure installation, eliminating the laborious process of trimming insulation and jacket around steel ribs.

The Insulated Pipe Support System is designed for supporting insulated pipes and equipment. A complete system consists of insulated pipe supports and cold insulation materials, with high-density polyisocyanurate (HDPIR) as the most critical component.

Kaff Rees Insulated Pipe Support System Variants

Sliding Pipe support system
Guide pipe support system (including guide support for vertical pipe)
Limit/fixing pipe support system
Bearer supporting bracket system

General Structure of Insulated Pipe Support System (Sliding System)

Pipe support base
Rubber plate
Metal protective layer
Vapor barrier
HDPIR inner layer
HDPIR outer layer
Metal pipe clamp
Bolts
Disc spring
Nut

Kaff Rees offers a complete range of insulated cryogenic pipe supports for all low-temperature pipe systems. These supports feature mechanical clamping via disc spring bolting. The pipe support cradle, housing the HD-PIR insulation, is constructed from hot-dip galvanized steel as standard.

Our cryogenic pipe supports meet international technical regulations and standards, covering pipe diameters from OD 21.3 mm (0.84 in) to OD 965.20 mm (38 in) with insulation thicknesses from 25 mm (0.98 in) to 250 mm (9.84 in). Designed for temperatures down to -196°C, they are constructed from materials suitable for specified loads and temperature ranges.

HDPIR Material Properties

HDPIR is a foaming polymer combining characteristics of plastic, rubber, and cork. Composed of isocyanate, polyether, foaming agent, catalyst, and flame retardant, it forms a cellular structure with millions of tiny, uniform sealed cells. This structure provides low density, low thermal conductivity, and low water absorption, outperforming traditional timber.

Physical Property	Unit	Technical Indicator
Avg. Density	kg/m3	160 \| 224 \| 320 \| 400 \| 500 \| 550
Thermal Conductivity (20°C)	W/m.K	≤0.032 \| ≤0.040 \| ≤0.050 \| ≤0.058 \| ≤0.075 \| ≤0.085
Compressive Strength (normal temperature)	MPa	≥2.0 \| ≥4.0 \| ≥7.0 \| ≥12.0 \| ≥18.0 \| ≥22.0
Water Absorption	%	≤2.0 \| ≤2.0 \| ≤2.0 \| ≤1.5 \| ≤1.5 \| ≤1.5
Closed Cell Content	%	>95
Linear Expansion Coefficient (-165-20°C)	1/K	≤65 x 10^-6
Application Temperature	°C	-306

Production Flow

Applications

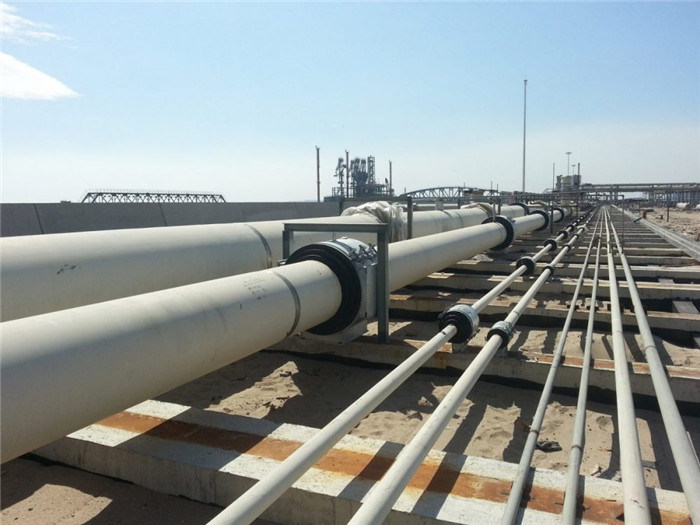

These products are used in industrial processes for production, transport, and distribution of liquefied gases including propane and butane (LPG), methane (LNG), ethylene, nitrogen, and ammonia.

Packing and Storage

All components are pre-assembled in the workshop. Finished products are wrapped in anti-UV polythene film and packed in wooden cases.

Installation Cautions

Detach the product, install parts in their designated positions, then reassemble
Follow Kaff Rees' installation instructions precisely
