LPG Distribution HDPIR Pipe Insulation Supports With Single Vertical Plate
| Place of Origin | Changzhou, Jiangsu,China |
|---|---|
| Brand Name | Kaff Rees |
| Minimum Order Quantity | 20 Sets |
| Price | Negotiable |
| Packaging Details | Carton packaging/Wooden case packaging/according to the requirements |
| Delivery Time | Negotiable |
| Payment Terms | EXW/FOB/CIF |
| Supply Ability | According to products |
Product Details
| Name | HDPIR Pipe Support With Single Vertical Plate | DENSITY | 160-550 K |
|---|---|---|---|
| COLOR | White/red/yellow/green | SERVICE TEMP. | -196～+120℃ |
| THERMAL CONDUCTIVITY (+20℃) | ≤0.035-≤0.085 W/(m·K) | THERMAL CONDUCTIVITY (-196℃) | ≤0.0232 W/(m·K) |
| COMPRESSIVE STRENGTH | 2-14 MPa | CLOSED CELL RATIO | ≥95% |
| Highlight | HDPIR Pipe Sliding Support,LPG Distribution Pipe Sliding Support,Vertical Plate Pipe Insulation Supports |
||
Product Description

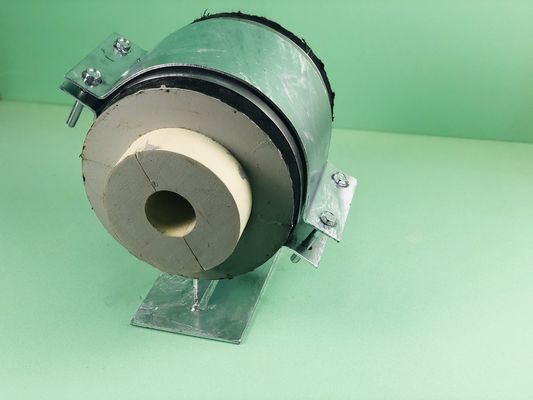

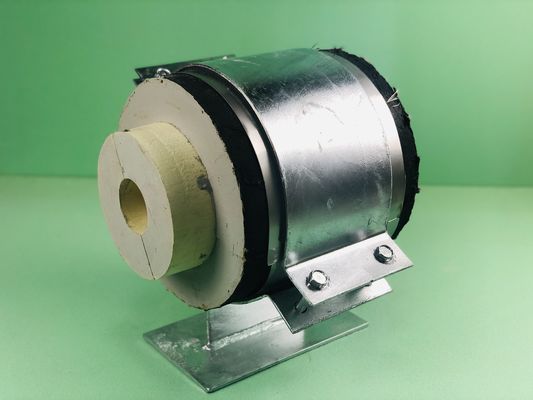

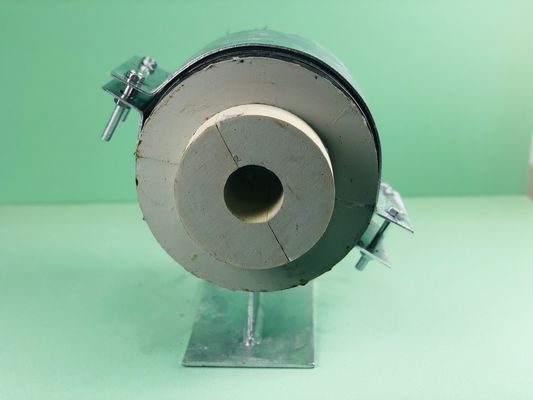

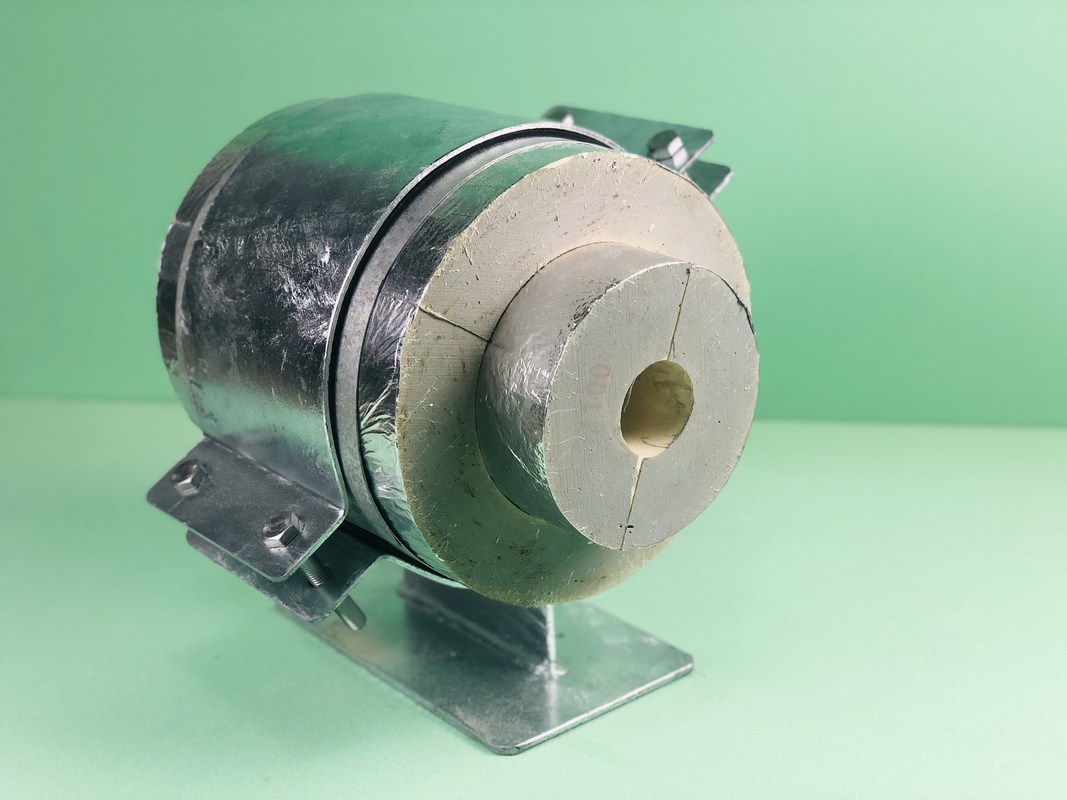

LPG Distribution HDPIR Pipe Insulation Supports With Single Vertical Plate
HDPIR pipe support with single vertical plate, sliding pipe support
Sliding Pipe Support System is primarily designed for supporting insulated pipes and equipment. A complete insulated pipe support system consists of insulated pipe supports and cold insulation materials, with high-density polyisocyanurate (HDPIR) being the most critical component.
Available Support System Types
- Sliding Pipe support system
- Guide pipe support system (including guide support for vertical pipe)
- Limit / fixing pipe support system
- Bearer supporting bracket system
General Structure of Insulated Pipe Support System (Sliding System)
- Pipe support base
- Rubber plate
- Metal protective layer
- Vapor barrier
- HDPIR inner layer
- HDPIR outer layer
- Metal pipe clamp
- Bolts
- Disc spring
- Nut
HDPIR Material Properties
HDPIR is a foaming polymer combining characteristics of plastic, rubber and cork. Composed of isocyanate, polyether, foaming agent, catalyst and flame retardant, it forms a cellular structure with millions of tiny, uniform sealed cells. This structure provides low density, excellent thermal insulation, and minimal water absorption, outperforming traditional timber materials.
| Physical Property | Unit | Technical Indicator |
|---|---|---|
| Avg. Density | kg/m3 | 160 | 224 | 320 | 400 | 500 | 550 |
| Thermal Conductivity (20°C) | W/m.K | ≤0.032 | ≤0.040 | ≤0.050 | ≤0.058 | ≤0.075 | ≤0.085 |
| Compressive Strength (normal temperature) | MPa | ≥2.0 | ≥4.0 | ≥7.0 | ≥12.0 | ≥18.0 | ≥22.0 |
| Water Absorption | % | ≤2.0 | ≤2.0 | ≤2.0 | ≤1.5 | ≤1.5 | ≤1.5 |
| Closed Cell Content | % | >95 |
| Linear Expansion Coefficient (-165-20°C) | 1/K | ≤65 x 10-6 |
| Application Temperature | °C | -306 |
Production Process
Applications
These products are extensively used in industrial processes for production, transportation and distribution of liquefied gases including propane and butane (LPG), methane (LNG), ethylene, nitrogen, and ammonia.
