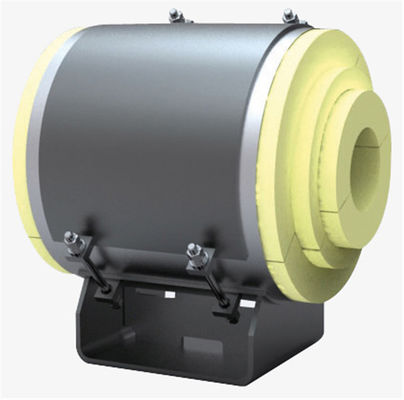

Heat Insulation Pipe Insulation Supports With High Density Polyisocyanurate Material

Brand Name:	Kaff Rees
MOQ:	20 Cubic Meters
Price:	Negotiable
Payment Terms:	EXW/FOB/CIF
Supply Ability:	According to products

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou, Jiangsu,China

Certification:

SGS

Name:

Limit Stop Pipe Support

Feature:

High Temperature Heat Insulation

Insulation Thicknesses:

0.98 In - 9.84 In

Pipe OD:

0.84 In - 38 In

Cold Insulation Material:

High Density Polyisocyanurate

Application:

Liquefied Gas Plant

Packaging Details:

Carton packaging/Wooden case packaging/according to the requirements

Highlight:

High Density Polyisocyanurate

High Density Polyisocyanurate Pipe Supports

High Temperature Pipe Insulation Supports

Product Description

Heat Insulation Pipe Insulation Supports With High Density Polyisocyanurate Material

We specialize in manufacturing and supplying insulated pipe supports for both low and high temperature piping systems. Our pipe support systems are designed to bear various loads while serving as part of the pipeline's cold insulation.

Compositions

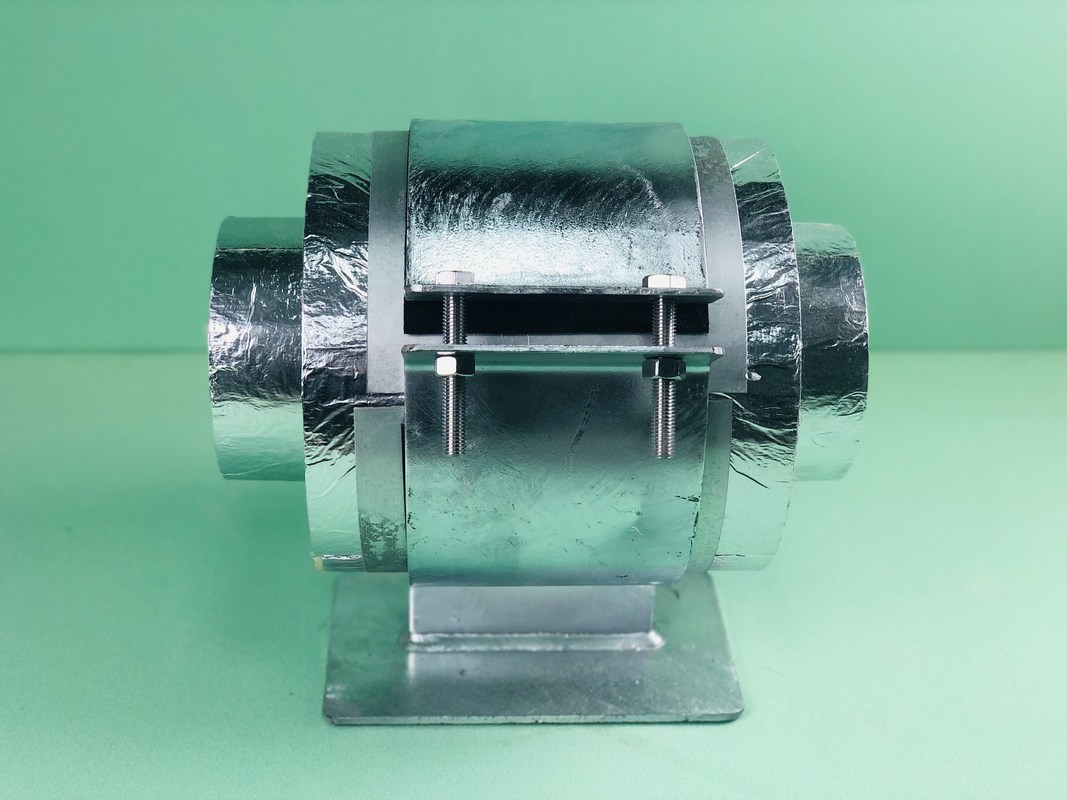

A complete insulated pipe support system consists of:

Insulated pipe supports
Cold insulation materials (primarily high density polyisocyanurate - HDPIR)

The system can be enhanced with optional components:

Damp proof layer
Metal protective layer
Rubber plate
Metal pipe clamp
Bolt and nut assemblies
Butterfly springs
Cold insulation washers
Polytetrafluoroethylene sliding pairs
Steam insulation resistance

Applications

Our pipe support systems are ideal for:

Petrochemical plants
Liquefied gas plants
Refrigeration warehouses
Central air conditioning systems

Packing and Storage

All components are pre-assembled in our workshop. Finished products are wrapped in anti-UV polyethylene film and packed in wooden cases for protection.

High Density Polyisocyanurate (HDPIR)

HDPIR is a foaming polymer combining properties of plastic, rubber, and cork. Manufactured from isocyanate, polyether, foaming agents, catalysts, and flame retardants, it forms a cellular structure with millions of tiny, uniform sealed cells. This structure provides:

Low density
Low thermal conductivity
Low water absorption
Superior performance compared to timber

HDPIR Physical Properties

Physical Property	Unit	Technical Indicator
Avg. Density	kg/m3	160 \| 224 \| 320 \| 400 \| 500 \| 550
Thermal Conductivity (20°C)	W/m.K	≤0.032 \| ≤0.040 \| ≤0.050 \| ≤0.058 \| ≤0.075 \| ≤0.085
Compressive Strength (normal temperature)	MPa	≥2.0 \| ≥4.0 \| ≥7.0 \| ≥12.0 \| ≥18.0 \| ≥22.0
Water Absorption	%	≤2.0 \| ≤2.0 \| ≤2.0 \| ≤1.5 \| ≤1.5 \| ≤1.5
Closed Cell Content	%	>95
Linear Expansion Coefficient (-165-20°C)	1/K	≤65 x 10^-6
Application Temperature	°C	-306

Production Flow
