| Brand Name: | Kaff Rees |
| MOQ: | 20 Cubic Meters |
| Price: | Negotiable |
| Payment Terms: | EXW/FOB/CIF |
| Supply Ability: | According to products |
Limit pipe supports are used in a variety of applications, including above-ground piping and piping in buildings, tunnels, and trenches. They can be designed for high-temperature, cold-temperature, and even dual-temperature applications. High temperature pre-insulated supports utilize structural inserts within the support for load carrying and clamping capabilities. Low-temperature supports use various materials and densities to carry the load of the pipe. Composites of several different insulations such as aerogel blanket, calcium silicate, cellular glass, and closed-cell foam insulation may be utilized for special applications at a wide range of service temperatures.
Compositions

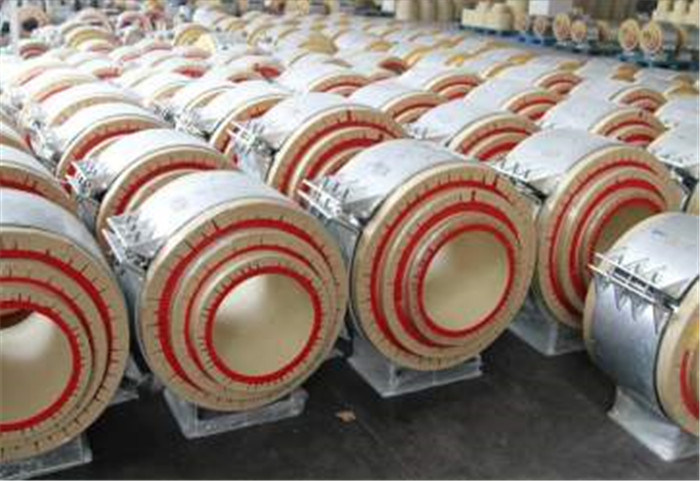

A complete insulated pipe support system is composed of insulated pipe supports and cold insulation materials. The cold insulation material is the most important part of the insulated pipe support system, which is high density polyisocyanurate (HDPIR).
In addition to the main cold insulation materials, the insulated pipe support system can also be equipped with the following auxiliary materials according to the requirements: damp proof layer, metal protective layer, rubber plate, metal pipe clamp, bolt and nut, butterfly spring, cold insulation washer, polytetrafluoroethylene sliding pair, steam insulation resistance, etc., in order to meet the design needs and ensure the safe and reliable use of the pipe support system.
Application
It is mainly used for bearing and heat insulation of pipes and equipment in petrochemical plant, liquefied gas plant, refrigeration warehouse and central air conditioning system.
Packing and Storage
All parts will be fitted together in workshop. Finished product shall be wrapped by anti-ultraviolet polythene film, then packed in wooden case.
HDPIR
HDPIR is a kind of foaming polymer, with the features of plastic, rubber and cork. The raw materials are isocyanate, polyether, foaming agent, catalyst, flame retardant, etc. After high speed stirring, materials react and foam to cellular structure product, composed of millions of tiny and uniform sealed cells. It provide benefits of low density, low thermal conductivity, low water absorption. The performance is better than timber.
| Physical Property | Unit | Technical Indicator | |||||
| Avg. Density | kg/m3 | 160 | 224 | 320 | 400 | 500 | 550 |
| Thermal Conductivity ( 20C ) | W/m.K | ≤0.032 | ≤0.040 | ≤0.050 | ≤0.058 | ≤0.075 | ≤0.085 |
| Compressive Strength( normal temperature ) | MPa | ≥2.0 | ≥4.0 | ≥7.0 | ≥12.0 | ≥18.0 | ≥22.0 |
| Water Absorption | % | ≤2.0 | ≤2.0 | ≤2.0 | ≤1.5 | ≤1.5 | ≤1.5 |
| Closed Cell Content | % | >95 | |||||
| Linear Expansion Coefficient (-l65- 20℃ ) |
1/K | ≤65 x 10-6 | |||||
| Application Temperature | ℃ | -306 | |||||
Production Flow
