Eco Friendly Cellular Glass Board Insulation Foam Glass Insulation Panels OEM Size
| Place of Origin | Changzhou, Jiangsu,China |
|---|---|
| Brand Name | Kaff Rees |
| Certification | SGS |
| Minimum Order Quantity | 20 Cubic Meters |
| Price | Negotiable |
| Packaging Details | Carton packaging/Wooden case packaging/according to the requirements |
| Delivery Time | Negotiable |
| Payment Terms | EXW/FOB/CIF |
| Supply Ability | According to products |
Product Details
| Name | Cellular Glass Board Insulation | Feature | Environmental Protection |
|---|---|---|---|
| Dimensional Stability | ≤0.3 | Tensile Strength Vertical To The Plane | ≥0.15 |
| Combustibility | A1 | Application | Petroleum Industry |
| Highlight | Eco Friendly Cellular Glass Board,OEM Size Glass Insulation Panels |
||
Product Description
Eco Friendly Cellular Glass Board Insulation Foam Glass Insulation Panels OEM Size
Cellular glass insulation is unaffected by common chemicals and most corrosive atmospheres. It does not promote metal corrosion, and its moisture resistance helps prevent water from reaching equipment and piping.
Cellular glass serves as both cold and thermal insulation material, suitable for applications ranging from deep cold areas to thermal states. It maintains its properties over long-term use without deterioration and provides excellent fire and earthquake prevention. This material is safe, reliable, and durable in harsh environments including low temperature, deep cold, underground engineering, flammable, explosive, humid, and chemically erosive conditions. It is recognized as a "permanent thermal insulation material that does not need replacement."
Key Features
- Low density, low thermal conductivity, and high compressive strength
- No water absorption, moisture permeability, or leakage
- Small thermal expansion coefficient with excellent dimensional stability - no deformation or cracking
- Fireproof, non-combustible, and corrosion resistant
- Resistant to mildew, rodents, pests, and microorganisms
- Suitable for all harsh environments including high temperature, deep cold, and constant temperature/humidity
- Easy to cut, process, and install
- Inorganic composition with no aging or performance degradation - service life matches building lifespan
- Recyclable, non-toxic, safe, and environmentally friendly
Performance Specifications
| Item | Performance Index | Test Mode |
|---|---|---|
| Volume density Kg/m3 | ≤120 | ≤140 | ≤160 | ≤180 | JC/T 647 |
| Density range | ＞100 ≤120 | ＞120 ≤140 | ＞140 ≤160 | ＞160 ≤180 | |
| Conductivity W/(m*k) | ≤0.042 | ≤0.045 | ≤0.058 | ≤0.062 | GB/T 10294 |
| Compressive strength (MPa) | ≥0.5 | ≥0.6 | ≥0.6 | ≥0.7 | GB/T 5486 |
| Flexural strength (MPa) | ≥0.3 | ≥0.5 | ≥0.5 | ≥0.6 | |
| Tensile strength vertical to the plane(MPa) | ≥0.15 | JG149 |
| Water Absorption by Vol. (v/v),% | ≤0.5 | JC/T 647 |
| Dimensional stability % | ≤0.3 | GB/T 8811 |
| Combustibility | A1 | GB 8624 |
| Radionuclide limit | internal exposure index(Ira) ≤1.0 | external exposure index(Ir) ≤1.0 | GB 6566 |
Detailed Specifications by Grade
| Property | Unit | Grade 800 | Grade 1000 | Grade 1200 | Grade 1600 |
|---|---|---|---|---|---|
| Ave. Density | kg/m3 | 120±8 | 130±8 | 140±8 | 160±10 |
| Thermal Conductivity | W/(m*K) | 0.043 | 0.044 | 0.046 | 0.048 |
| Highest Single Value (10℃) | 0.045 | 0.046 | 0.048 | 0.05 | |
| Compressive Strength | MPa | 0.8 | 1 | 1.2 | 1.6 |
| Lowest Single Value | 0.55 | 0.69 | 0.83 | 1.1 | |
| Water Absorption by Vol. | % | ≤0.5 | |||
| Thermal Expansion Coefficient | 1/℃ | 9×10-6 | |||
| Service Temp. | ℃ | -196～+450 | |||
Applications

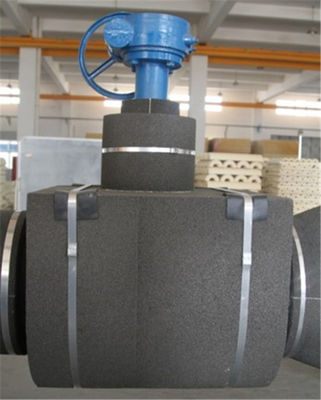

As an advanced thermal insulation material, cellular glass is widely used in petroleum industry, chemical industry, underground engineering, shipbuilding, and defense works. Applications include cryogenic insulation systems in pharmaceuticals, hydrocarbon processing systems, low temperature piping, equipment and storage tanks, cold storage buildings, liquid oxygen/nitrogen storage tanks and pipelines, as well as exterior wall insulation, roofing, and basement applications.
Production Flow
