No Leakage Cellular Foam Glass Thermal Insulation Materials Corrosion Resistance

Brand Name:	Kaff Rees
MOQ:	20 Cubic Meters
Price:	Negotiable
Payment Terms:	EXW/FOB/CIF
Supply Ability:	According to products

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou, Jiangsu,China

Certification:

SGS

Name:

Cellular Glass Board Insulation

Feature:

Environmental Protection

Ave. Density:

120-160 Kg/m3

Service Temp.:

-196～+450 ℃

Water Absorption By Vol.:

≤0.5%

Thermal Expansion Coefficient:

9×10-6 /℃

Packaging Details:

Carton packaging/Wooden case packaging/according to the requirements

Highlight:

No Leakage Cellular Glass Insulation

Corrosion Resistance Foam Glass Thermal Insulation

Product Description

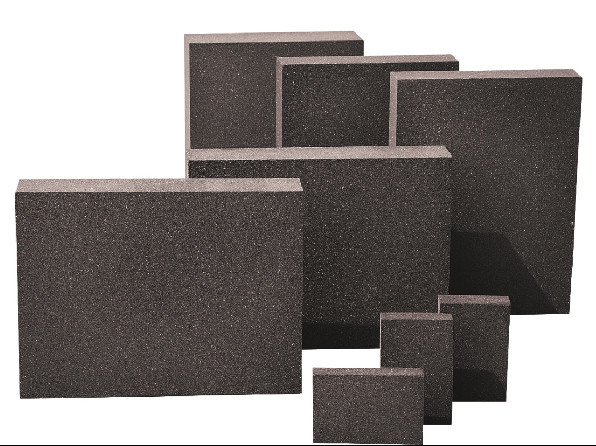

No Leakage Cellular Foam Glass Thermal Insulation Materials Corrosion Resistance

Cellular glass insulation is resistant to vermin, as well as microbes and mold. Cellular glass is a kind of inorganic rigid insulation material, which is non-toxic, harmless, and environmentally friendly. It can be applied to cryogenic and high-temperature environments, making it the best low-temperature thermal insulation material.

Cellular glass serves as both cold and thermal insulation material, suitable for use from deep cold areas to thermal states. After long-term use, it will not deteriorate and plays an important role in fire prevention and earthquake prevention. It is safe, reliable, and durable in harsh environments including low temperature, deep cold, underground engineering, flammable, explosive, humid, and chemically erosive conditions. It is known as "permanent thermal insulation material that does not need to be replaced".

Key Features

Low density, low thermal conductivity and high compressive strength
No water absorption, moisture permeability or leakage
Small thermal expansion coefficient, excellent dimensional stability, no deformation or cracking
Fire protection, non-combustible and corrosion resistant
No mildew, resistant to rodents, pests and microorganisms
Suitable for all harsh environments including high temperature, deep cold, and constant temperature/humidity
Easy to cut, process and install
Inorganic product with no aging or performance degradation, lifespan matches building structures
Recyclable, non-toxic, safe and environmentally friendly

Performance Index

Item	Performance Index	Test Mode
Volume density Kg/m3	≤120 \| ≤140 \| ≤160 \| ≤180	JC/T 647
Density range	＞100 ≤120 \| ＞120 ≤140 \| ＞140 ≤160 \| ＞160 ≤180
Conductivity W/(m*k)	≤0.042 \| ≤0.045 \| ≤0.058 \| ≤0.062	GB/T 10294
Compressive strength (MPa)	≥0.5 \| ≥0.6 \| ≥0.6 \| ≥0.7	GB/T 5486
Flexural strength (MPa)	≥0.3 \| ≥0.5 \| ≥0.5 \| ≥0.6
Tensile strength vertical to the plane(MPa)	≥0.15	JG149
Water Absorption by Vol. (v/v),%	≤0.5	JC/T 647
Dimensional stability %	≤0.3	GB/T 8811
Combustibility	A1	GB 8624
Radionuclide limit	internal exposure index(Ira) ≤1.0 \| external exposure index(Ir) ≤1.0	GB 6566

Property	Unit	Grade 800	Grade 1000	Grade 1200	Grade 1600
Ave. Density	kg/m3	120±8	130±8	140±8	160±10
Thermal Conductivity	W/(m*K)	0.043	0.044	0.046	0.048
Highest Single Value (10℃)		0.045	0.046	0.048	0.05
Compressive Strength	MPa	0.8	1	1.2	1.6
Lowest Single Value		0.55	0.69	0.83	1.1
Water Absorption by Vol.	%	≤0.5
Thermal Expansion Coefficient	1/℃	9×10-6
Service Temp.	℃	-196～+450

Property	Unit	Grade 500	Grade 700	Grade 1400	Grade 2400
Ave. Density	kg/m3	110±8	115±8	150±10	220±20
Thermal Conductivity	W/(m*K)	0.038	0.04	0.047	0.056
Highest Single Value (10℃)		0.04	0.042	0.049	0.058
Compressive Strength	MPa	0.5	0.7	1.4	2.4
Lowest Single Value		0.35	0.48	0.97	1.66
Water Absorption by Vol.	%	≤0.5
Thermal Expansion Coefficient	1/℃	9×10-6
Service Temp.	℃	-196～+450

Applications

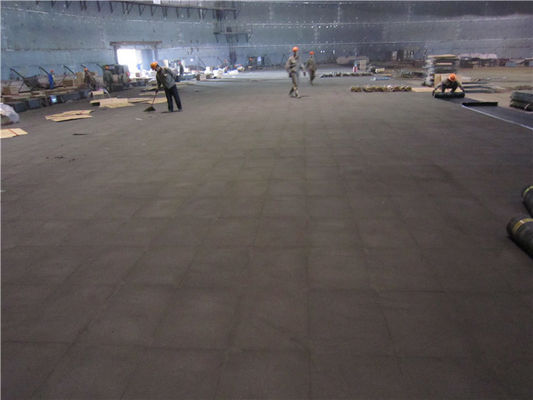

As an advanced thermal insulation material, cellular glass is widely used in petroleum industry, chemical industry, underground engineering, shipbuilding and defense works. It can be used in cryogenic insulation systems in pharmaceuticals, hydrocarbon processing, low temperature piping, equipment and storage tanks, cold storage buildings, steel liquid oxygen and nitrogen storage tanks and pipelines, as well as exterior wall insulation, exterior insulation, roofing, and basement applications.

Production Flow
