Harmless Cellular Foam Glass Insulation No Cracking Foam Glass Block Insulation
| Place of Origin | Changzhou, Jiangsu,China |
|---|---|
| Brand Name | Kaff Rees |
| Certification | SGS |
| Minimum Order Quantity | 20 Cubic Meters |
| Price | Negotiable |
| Packaging Details | Carton packaging/Wooden case packaging/according to the requirements |
| Delivery Time | Negotiable |
| Payment Terms | EXW/FOB/CIF |
| Supply Ability | According to products |
Product Details
| Name | Cellular Glass Board Insulation | Feature | Environmental Protection |
|---|---|---|---|
| Dimensional Stability | ≤0.3 | Tensile Strength Vertical To The Plane | ≥0.15 |
| Combustibility | A1 | Application | Petroleum Industry |
| Highlight | No Cracking Foam Glass Block Insulation,Harmless Cellular Foam Glass Insulation |
||
Product Description

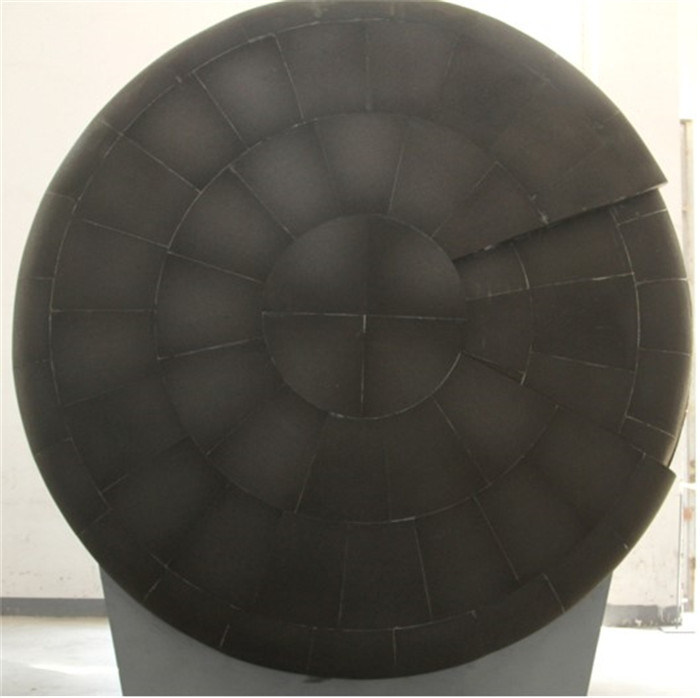

Harmless Cellular Foam Glass Insulation No Cracking Foam Glass Block Insulation
Cellular Glass Board Insulation can withstand loads which crush most other insulating materials. In a properly designed piping system, it eliminates the need for special treatment at pipe cradles. It provides a fire base for roof membranes, jacketing or vapor retarders, and can prolong their life.
Key Features
- Low density, low thermal conductivity and high compressive strength
- No water absorption, moisture permeability or leakage
- Small thermal expansion coefficient with excellent dimensional stability, preventing deformation and cracking
- Fire protection, non-combustible and corrosion resistant
- Resistant to mildew, rodents, pests and microorganisms
- Suitable for harsh environments including high temperature, deep cold, and constant temperature/humidity
- Easy to cut, process and install
- Inorganic composition ensures no aging or performance degradation, with service life matching buildings
- Recyclable, non-toxic, safe and environmentally friendly
Performance Specifications
| Item | Performance Index | Test Mode |
|---|---|---|
| Volume density Kg/m3 | ≤120 | ≤140 | ≤160 | ≤180 | JC/T 647 |
| Density range | ＞100 ≤120 | ＞120 ≤140 | ＞140 ≤160 | ＞160 ≤180 | |
| Conductivity W/(m*k) | ≤0.042 | ≤0.045 | ≤0.058 | ≤0.062 | GB/T 10294 |
| Compressive strength (MPa) | ≥0.5 | ≥0.6 | ≥0.6 | ≥0.7 | GB/T 5486 |
| Flexural strength (MPa) | ≥0.3 | ≥0.5 | ≥0.5 | ≥0.6 | |
| Tensile strength vertical to the plane(MPa) | ≥0.15 | JG149 |
| Water Absorption by Vol. (v/v),% | ≤0.5 | JC/T 647 |
| Dimensional stability % | ≤0.3 | GB/T 8811 |
| Combustibility | A1 | GB 8624 |
| Radionuclide limit | internal exposure index(Ira) ≤1.0 | external exposure index(Ir) ≤1.0 | GB 6566 |
Technical Specifications by Grade
| Property | Unit | Grade 800 | Grade 1000 | Grade 1200 | Grade 1600 |
|---|---|---|---|---|---|
| Ave. Density | kg/m3 | 120±8 | 130±8 | 140±8 | 160±10 |
| Thermal Conductivity | W/(m*K) | 0.043 | 0.044 | 0.046 | 0.048 |
| Compressive Strength | MPa | 0.8 | 1 | 1.2 | 1.6 |
| Water Absorption by Vol. | % | ≤0.5 | |||
| Thermal Expansion Coefficient | 1/℃ | 9×10-6 | |||
| Service Temp. | ℃ | -196～+450 | |||
Applications
As an advanced thermal insulation material, cellular glass is widely used in petroleum industry, chemical plants, underground engineering, shipbuilding and defense works. Applications include cryogenic insulation systems in pharmaceutical processing, hydrocarbon processing systems, low temperature piping, equipment and storage tanks, cold storage facilities, liquid oxygen/nitrogen storage systems, and building insulation for walls, roofs and basements.
Production Process
