Polyisocyanurate PIR Insulation Board Easy Cutting High Compressive Strength
| Place of Origin | Changzhou, Jiangsu,China |
|---|---|
| Brand Name | Kaff Rees |
| Certification | SGS |
| Minimum Order Quantity | 20 Cubic Meters |
| Price | Negotiable |
| Packaging Details | Carton packaging/Wooden case packaging/according to the requirements |
| Delivery Time | Negotiable |
| Payment Terms | EXW/FOB/CIF |
| Supply Ability | According to products |
Product Details
| Name | Polyisocyanurate PIR Insulation Board | Feature | Easy Cutting |
|---|---|---|---|
| Cold Insulation Material | Polyisocyanurate PIR | PH Value | 5.5-7 |
| Service Temp. | -196～+120℃ | Application | Low Temperature Industries |
| Highlight | polyisocyanurate insulation board,pir foam insulation boards |
||
Product Description

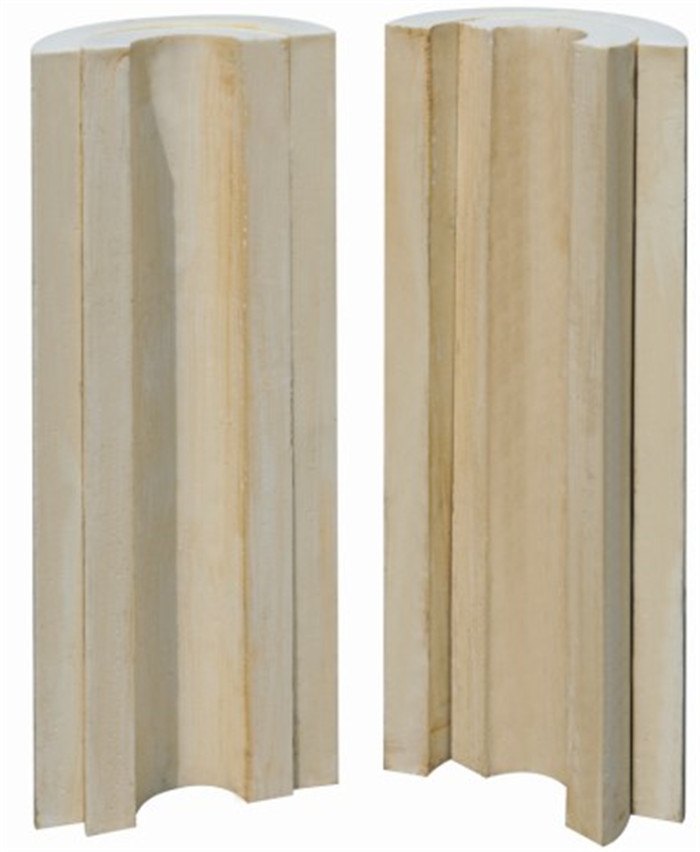

Polyisocyanurate PIR Insulation Board Easy Cutting High Compressive Strength
High-performance PIR insulation board is made rigid thermoset board insulation. It consists of a polyisocyanurate (PIR) foam core enclosed by a laminate facing combination such as glass fiber cement cloth, aluminum foil laminate, or Kraft paper.
Key Features
- Fire resistance rated as B1
- Operating temperature range: -196℃ to +120℃
- Excellent dimensional stability
- Customizable cutting in panels and pipes according to requirements
Technical Properties
| Item | Unit | Technical Data | Test Mode |
|---|---|---|---|
| Density | kg/m³ | ≥40 | ASTM D1622 / ISO 845 |
| Thermal Conductivity | W/(m·K) |
≤0.035 (+100℃) ≤0.029 (+50℃) ≤0.025 (+10℃) ≤0.024 (0℃) ≤0.023 (-50℃) ≤0.022 (-100℃) ≤0.017 (-150℃) ≤0.016 (-170℃) |
ASTM C177 |
| Compressive Strength | kPa | +23℃: ≥200 -165℃: ≥280 |
ASTM D 1621 |
| Tensile Strength | kPa | +23℃: ≥320 -165℃: ≥265 |
ASTM D 1623 |
| Flame Spread Index | ﹤25 | ASTM E84 | |
| Oxygen index | ≥30 | GB/T 2406.2 | |
| Water Absorption by Vol. | % | ≤2 | ASTM D2842 |
| Water Vapor Permeability | ng/(Pa·s·m) | ≤5.5 | ASTM E96 |
| Closed Cell Ratio | % | ≥95 | ASTM D6226 |
| Lineal Thermal Expansion Coefficient | m/(m·K) | ≤70×10⁻⁶ | ASTM D696 |
| PH Value | 5.5-7 | ASTM C871 | |
| Chloride Content | ppm | ≤60 | GB/T 11835 |
| Elastic Modulus | MPa | ≤16 | ASTM D1623 |
| Service Temp. | ℃ | -196～+120 |
Applications
This ideal organic low-temperature insulation material features small thermal conductivity and high dimensional stability. Suitable for a wide temperature range, it is widely used in LNG, ethylene, cold storage, and other low-temperature industries.
Typical PIR Insulation System Structure
- PIR Shell: inner layer + middle layer (if necessary) + outer layer
- Secondary Vapor Barrier: PAP aluminum foil
- Main Vapor Barrier: mastic + fiberglass meshes + mastic
- Metal Protective Layer: aluminum alloy plate, stainless steel plate, aluminized steel plate, GRP
- Sealant: HS-10-02, Foster 95-50, etc
- Strapping Material: stainless steel tape, sub sensitive tape
Packing and Storage
- Store in a dry, lightproof, shady, and ventilated place, away from heat sources and protected from sun exposure
- Inner package: black polyethylene bags; Outer package: cartons
Cautions
- Handle gently; avoid rolling, collision, and heavy pressure during moving
- When applied to pipe and equipment insulation, fasten with glass fiber tape or steel band
- Cut with saw during application
