| Brand Name: | JSHESOL |
| MOQ: | 20 Cubic Meters |
| Price: | Negotiable |
| Payment Terms: | EXW/FOB/CIF |
| Supply Ability: | According to products |
Our High Closed-Cell Polyisocyanurate (PIR) foam is a rigid insulation material formed by the precise polymerization of isocyanate and polyether. The exceptionally high closed-cell content of ≥95% creates a structure of isolated cells, which translates directly into extremely low thermal conductivity, outstanding dimensional stability, and minimal water vapor permeability. With overall performance that surpasses standard polyurethane (PU), it is the ideal choice for demanding industrial applications.
| Feature | Description |
|---|---|
| High Closed-Cell Content (≥95%) | The dense, isolated cell structure ensures long-term, stable thermal performance by effectively trapping blowing agents and providing superior resistance to moisture ingress and vapor transmission. |
| Superior Fire Resistance (Class B1) | Offers enhanced safety for building and industrial applications with a proven low flame spread index and high oxygen index. |
| Excellent Dimensional Stability | Maintains its shape and structural integrity with minimal shrinkage or expansion across a wide temperature range, ensuring long-term system performance. |
| Wide Service Temperature Range (-196°C to +120°C) | Reliably performs in both cryogenic and elevated temperature environments, making it a versatile solution for various industrial applications. |
| Low Thermal Conductivity | Delivers outstanding thermal insulation efficiency with a thermal conductivity as low as 0.025 W/(m*K) at +10°C, ensuring significant energy savings. |
| High Mechanical Strength | Possesses high compressive and tensile strength, providing durability and the ability to withstand mechanical loads during and after installation. |

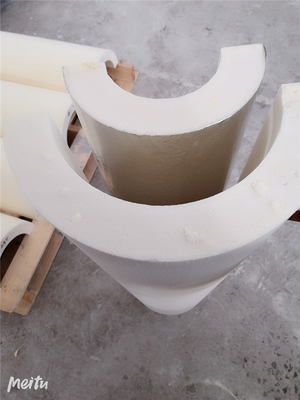

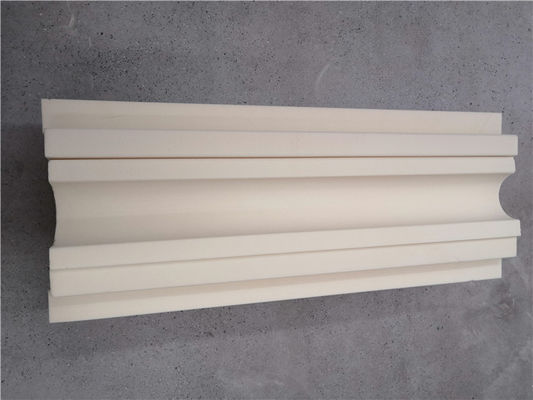

| Fully Customizable | Can be precision-cut into custom-sized panels, sheets, and pipe sections to meet the exact specifications and requirements of your project. |
| Item | Unit | Technical Data | Test Mode |
|---|---|---|---|
| Density | kg/m3 | ≥40 | ASTM D1622 / ISO 845 |
| Thermal Conductivity | W/(m*K) | ≤0.035 (+100℃) ≤0.029 (+50℃) ≤0.025 (+10℃) ≤0.024 (0℃) ≤0.023(-50℃) ≤0.022(-100℃) ≤0.017 (-150℃) ≤0.016 (-170℃) |
ASTM C177 |
| Compressive Strength | kPa | +23℃: ≥200 -165℃: ≥280 |
ASTM D 1621 |
| Tensile Strength | kPa | +23℃: ≥320 -165℃: ≥265 |
ASTM D 1623 |
| Flame Spread Index | ﹤25 | ASTM E84 | |
| Oxygen index | ≥30 | GB/T 2406.2 | |
| Water Absorption by Vol. | % | ≤2 | ASTM D2842 |
| Water Vapor Permeability | ng/(Pa*s*m) | ≤5.5 | ASTM E96 |
| Closed Cell Ratio | % | ≥95 | ASTM D6226 |
| Lineal Thermal Expansion Coefficient | m/(m*K) | ≤70×10-6 | ASTM D696 |
| PH Value | 5.5-7 | ASTM C871 | |
| Chloride Content | ppm | ≤60 | GB/T 11835 |
| Elastic Modulus | MPa | ≤16 | ASTM D1623 |
| Service Temp. | ℃ | -196～+120 |
It is a kind of ideal organic low-temperature heat insulation materials, which has the advantages of small thermal conductivity and high dimensional stability. It is suitable for a wide range of temperatures and is widely used in LNG, ethylene, cold storage and other low-temperature industries.
