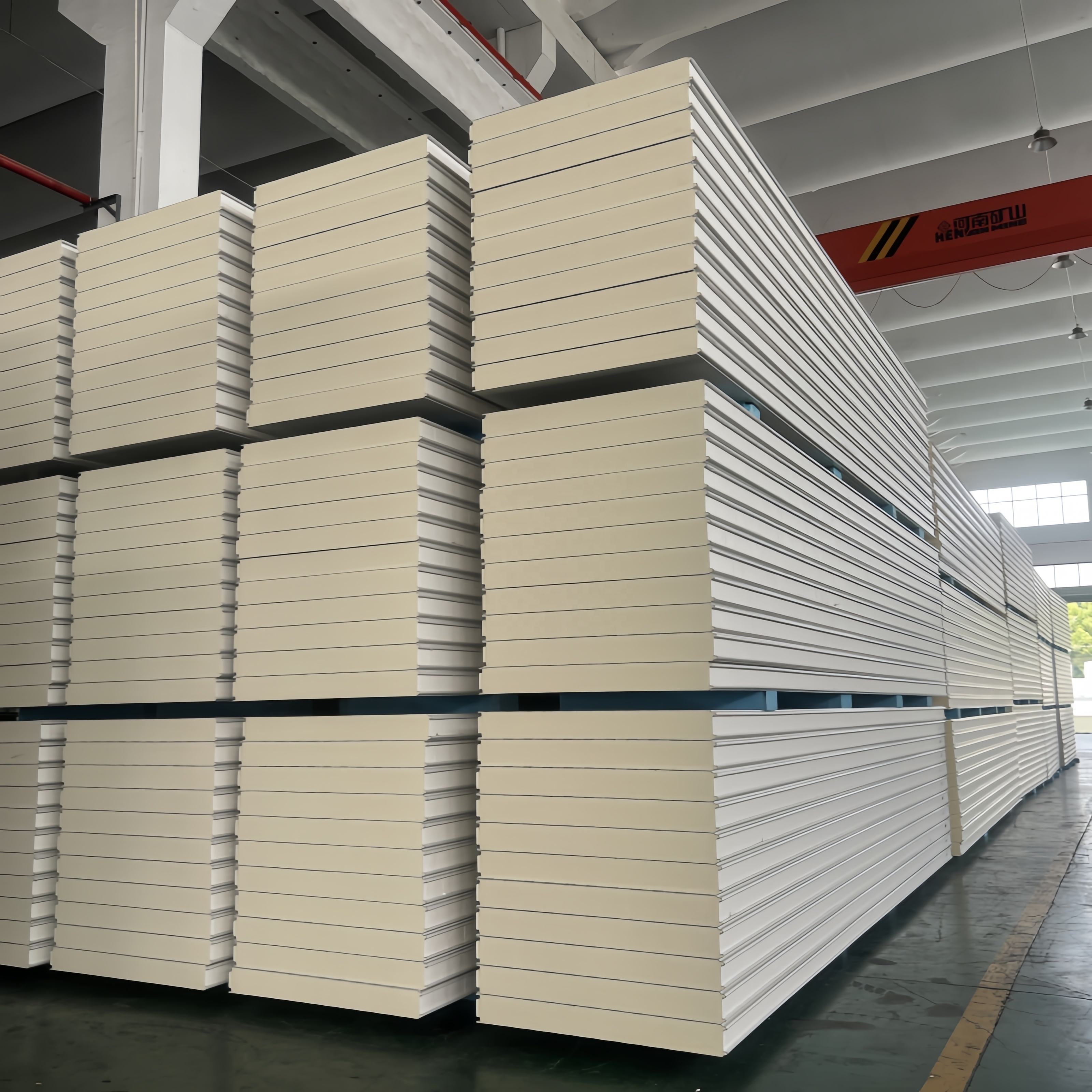

Commercial Building PIR Insulation Panels 50mm 75mm 100mm 150mm Thickness
| Place of Origin | Changzhou, Jiangsu,China |
|---|---|
| Brand Name | JSHESOL |
| Certification | SGS |
| Minimum Order Quantity | 20 Cubic Meters |
| Price | Negotiable |
| Packaging Details | Carton packaging/Wooden case packaging/according to the requirements |
| Delivery Time | Negotiable |
| Payment Terms | EXW/FOB/CIF |
| Supply Ability | According to products |
Product Details
| Operating Temperature Range | -40°C To 120°C | Thermal Conductivity | 0.02 W/mK |
|---|---|---|---|
| Material | Polyisocyanurate Foam | Fire Rating | Class 1 |
| Insulation Type | Pipe Insulation | Installation Method | Self-adhesive Or Mechanical Fastening |
| Density | 30 Kg/m3 | Uv Resistance | Excellent |
| Compressive Strength | 150 KPa | Moisture Absorption | 0.2% By Volume |
| Water Vapor Permeability | 0.03 Ng/Pa.s.m2 | Length | 6 Feet (1.8 Meters) |
| Chemical Resistance | Resistant To Most Chemicals | Sound Absorption | Excellent |
| Highlight | 150mm Thickness PIR Insulation Panels,PIR Insulation Panels 50mm Thickness,Commercial Building PIR Insulation Panels |
||
Product Description
Commercial Building PIR Insulation Panels (50mm, 75mm, 100mm, 150mm Thickness)
Product Overview
Specifically engineered for commercial metal building systems, this high-performance PIR insulation panel features advanced polyisocyanurate core material precision-laminated with metal facings. The product combines exceptional thermal insulation with outstanding fire resistance characteristics, providing professional solutions for thermal bridging and condensation issues in metal buildings. Its unique closed-cell structure effectively blocks heat transfer while maintaining durable dimensional stability and moisture resistance, making it the premier insulation choice for various industrial plants, logistics warehouses, and commercial centers.
Core Advantages
- Professional Metal Building Compatibility: Specifically designed for metal building systems, perfectly matching corrugated metal roof and wall panels for easy installation and seamless integration.
- Excellent Thermal and Fire Performance: Thermal conductivity as low as 0.022W/(m*K) with B1 fire rating, effectively improving building energy efficiency while ensuring safety.
- Superior Moisture and Corrosion Resistance: 96% closed-cell content effectively prevents moisture penetration, specially suited for condensation control in metal buildings.
- Robust and Durable: High compressive strength and excellent dimensional stability ensure long-term reliability in metal building applications.
Technical Parameters
| Test Item | Unit | Technical Data | Test Standard |
|---|---|---|---|
| Panel Thickness | mm | 50/75/100/150 | - |
| Thermal Conductivity | W/(m*K) | ≤0.022 | GB/T 10295 |
| Density | kg/m³ | 40-50 | GB/T 6343 |
| Compressive Strength | kPa | ≥250 | GB/T 8813 |
| Dimensional Stability | % | ≤1.0 | GB/T 8811 |
| Water Absorption | % | ≤1.0 | GB/T 8810 |
| Fire Rating | - | B1 Class | GB 8624 |
Applications
- Industrial plants and manufacturing facilities
- Logistics and distribution centers
- Large commercial complexes
- Sports venues and exhibition centers
- Agricultural buildings and aircraft hangars
Why Choose Us
- Professional System Solutions: Specifically developed for metal building characteristics, providing complete professional solutions from design to installation.
- Significant Energy Savings: Excellent thermal performance can reduce HVAC energy consumption by over 40% with short ROI period.
- Reliable Quality Assurance: Automated production lines with strict quality control ensure consistent product performance.
- Comprehensive Technical Support: Professional technical consultation and on-site guidance to ensure optimal performance.
