| Brand Name: | Kaff Rees |
| MOQ: | 20 Cubic Meters |
| Price: | Negotiable |
| Payment Terms: | EXW/FOB/CIF |
| Supply Ability: | According to products |

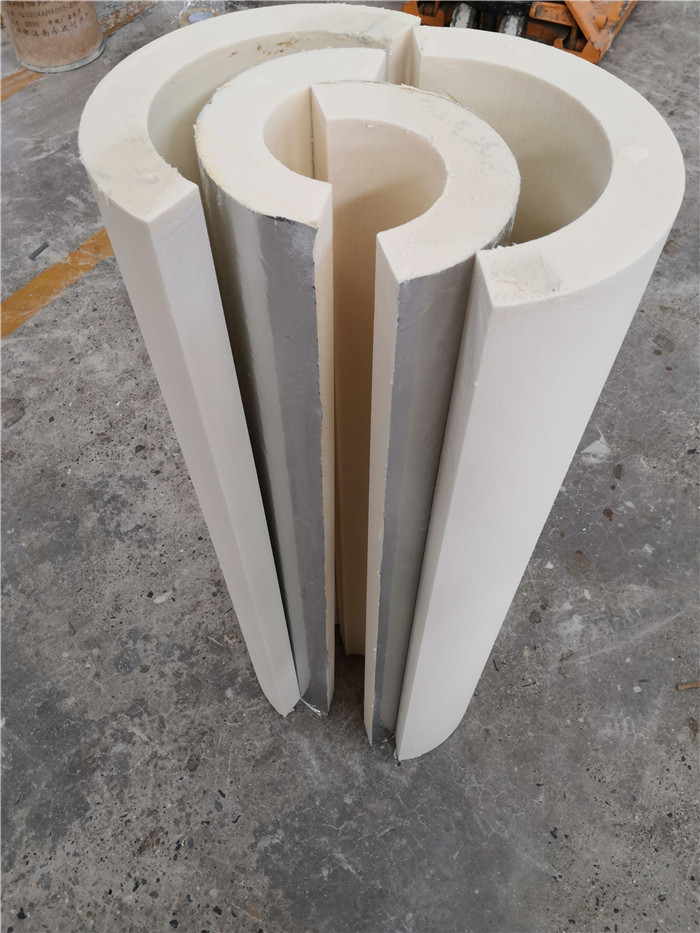

This high-performance insulation material is primarily used in cold insulation pipe support systems. It provides both structural support and thermal insulation for pipes and equipment in petrochemical plants, liquefied gas facilities, refrigeration warehouses, and central air conditioning systems.
HDPIR is a foaming polymer that combines the beneficial properties of plastic, rubber, and cork. Manufactured from isocyanate, polyether, foaming agent, catalyst, and flame retardant components, it undergoes high-speed stirring to create a cellular structure composed of millions of tiny, uniform sealed cells. This structure delivers exceptional performance characteristics including low density, minimal thermal conductivity, and low water absorption - outperforming traditional timber materials.
| Property | Unit | 160K | 224K | 320K | 400K | 500K | 550K |
|---|---|---|---|---|---|---|---|
| Density | kg/m3 | 160 | 224 | 320 | 450 | 500 | 550 |
| Thermal Conductivity (+20℃) | W/(m*K) | ≤0.035 | ≤0.042 | ≤0.050 | ≤0.060 | ≤0.075 | ≤0.085 |
| Water Absorption | % | ≤2.0 | ≤2.0 | ≤2.0 | ≤1.5 | ≤1.5 | ≤1.5 |
| Compressive Strength | MPa | ≥2.0 | ≥3.5 | ≥5 | ≥7 | ≥12 | ≥18 |
| Closed Cell Ratio | % | ≥95 | |||||
| Service Temp. | ℃ | -196~+120 | |||||
