OD 0.84" - 38" Pipe Insulation Supports , Insulated Pipe Hangers

Brand Name:	Kaff Rees
MOQ:	20 Cubic Meters
Price:	Negotiable
Payment Terms:	EXW/FOB/CIF
Supply Ability:	According to products

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou, Jiangsu,China

Certification:

SGS

Name:

Insulated Pipe Hangers

Pipe OD:

0.84" - 38"

Feature:

High Safety

Insulation Thicknesses:

0.98 In - 9.84 In

Cold Insulation Material:

High Density Polyisocyanurate

Application:

Liquefied Gas Plant

Packaging Details:

Carton packaging/Wooden case packaging/according to the requirements

Highlight:

pipe insulation supports

insulated pipe hangers

Product Description

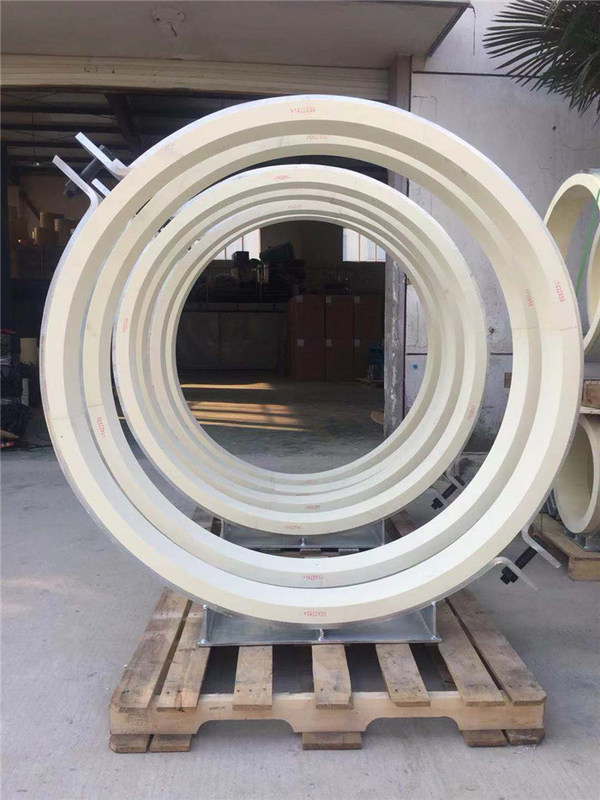

OD 0.84" - 38" Pipe Insulation Supports, Insulated Pipe Hangers

The insulated pipe support system is designed for supporting insulated pipes and equipment. It effectively bears various loads from piping systems while serving as part of the pipeline's cold insulation.

Types

Sliding pipe support system
Guide pipe support system (including guide support for vertical pipe)
Limit pipe support system
Fixing pipe support system bearer
Supporting bracket system

Compositions

A complete insulated pipe support system consists of insulated pipe supports and cold insulation materials. The primary cold insulation material is high-density polyisocyanurate (HDPIR).

The system can be enhanced with optional auxiliary materials:

Damp proof layer
Metal protective layer
Rubber plate
Metal pipe clamp
Bolt and nut
Butterfly spring
Cold insulation washer
Polytetrafluoroethylene sliding pair
Steam insulation resistance

Application

Primarily used for bearing and heat insulation of pipes and equipment in:

Petrochemical plants
Liquefied gas plants
Refrigeration warehouses
Central air conditioning systems

Packing and Storage

All components are assembled in the workshop. Finished products are wrapped in anti-ultraviolet polyethylene film and packed in wooden cases.

HDPIR Material Properties

High-density polyisocyanurate (HDPIR) is a foaming polymer combining properties of plastic, rubber, and cork. Composed of millions of tiny sealed cells, it offers superior performance with low density, thermal conductivity, and water absorption.

Physical Property	Unit	Technical Indicator
Avg. Density	kg/m3	160 \| 224 \| 320 \| 400 \| 500 \| 550
Thermal Conductivity (20°C)	W/m.K	≤0.032 \| ≤0.040 \| ≤0.050 \| ≤0.058 \| ≤0.075 \| ≤0.085
Compressive Strength (normal temperature)	MPa	≥2.0 \| ≥4.0 \| ≥7.0 \| ≥12.0 \| ≥18.0 \| ≥22.0
Water Absorption	%	≤2.0 \| ≤2.0 \| ≤2.0 \| ≤1.5 \| ≤1.5 \| ≤1.5
Closed Cell Content	%	>95
Linear Expansion Coefficient (-165-20°C)	1/K	≤65 x 10^-6
Application Temperature	°C	-306

Production Flow
