Eco Friendly Pre Insulated Pipe Supports 0.98" - 9.84" Insulation Thicknesses

Brand Name:	Kaff Rees
MOQ:	20 Cubic Meters
Price:	Negotiable
Payment Terms:	EXW/FOB/CIF
Supply Ability:	According to products

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou, Jiangsu,China

Certification:

SGS

Name:

Insulated Pipe Supports

Feature:

Eco Friendly

Cold Insulation Material:

High Density Polyisocyanurate

Insulation Thicknesses:

0.98 In - 9.84 In

Pipe OD:

0.84 In - 38 In

Application:

Liquefied Gas Plant

Packaging Details:

Carton packaging/Wooden case packaging/according to the requirements

Highlight:

cryogenic pipe supports

insulated pipe hangers

Product Description

Eco Friendly Pre Insulated Pipe Supports 0.98" - 9.84" Insulation Thicknesses

Insulated pipe supports provide an immediate thermal break, effectively eliminating "radiator fin" heat loss or gain based on system service temperature. These pre-insulated supports maintain desired pipe temperatures by either retaining heat or preventing heat transfer as required.

Types

Sliding pipe support system
Guide pipe support system (including vertical pipe guide support)
Limit pipe support system
Fixing pipe support system bearer
Supporting bracket system

Composition

The complete insulated pipe support system consists of insulated pipe supports and cold insulation materials. The primary insulation material is high density polyisocyanurate (HDPIR), which serves as the core component.

Additional auxiliary materials can be incorporated based on requirements:

Damp proof layer
Metal protective layer
Rubber plate
Metal pipe clamp
Bolt and nut assemblies
Butterfly spring
Cold insulation washer
Polytetrafluoroethylene sliding pair
Steam insulation resistance

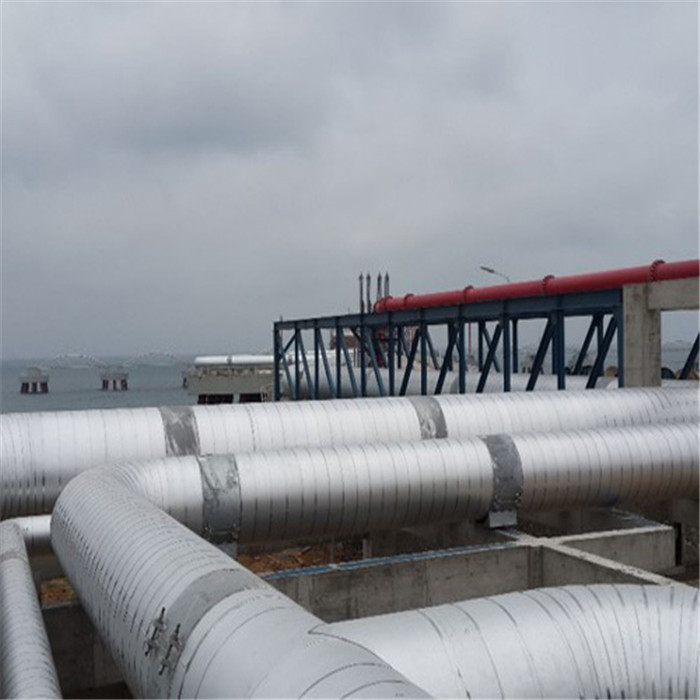

Applications

Designed for bearing and thermal insulation in piping systems across various industries including:

Petrochemical plants
Liquefied gas facilities
Refrigeration warehouses
Central air conditioning systems

Packing and Storage

All components are pre-assembled in workshop conditions. Final products are wrapped in anti-UV polyethylene film and securely packed in wooden cases for protection during transport and storage.

HDPIR Material Properties

High Density Polyisocyanurate (HDPIR) is a foaming polymer combining characteristics of plastic, rubber, and cork. Formulated from isocyanate, polyether, foaming agents, catalysts, and flame retardants, it creates a cellular structure with millions of uniform sealed cells. This structure delivers superior performance with low density, minimal thermal conductivity, and excellent water resistance compared to traditional materials.

Physical Property	Unit	Technical Indicator
Avg. Density	kg/m3	160 \| 224 \| 320 \| 400 \| 500 \| 550
Thermal Conductivity (20°C)	W/m.K	≤0.032 \| ≤0.040 \| ≤0.050 \| ≤0.058 \| ≤0.075 \| ≤0.085
Compressive Strength (normal temperature)	MPa	≥2.0 \| ≥4.0 \| ≥7.0 \| ≥12.0 \| ≥18.0 \| ≥22.0
Water Absorption	%	≤2.0 \| ≤2.0 \| ≤2.0 \| ≤1.5 \| ≤1.5 \| ≤1.5
Closed Cell Content	%	>95
Linear Expansion Coefficient (-165-20°C)	1/K	≤65 x 10^-6
Application Temperature	°C	-306

Production Process
