Good Thermal Stability Insulation Pipe Support Systems OD 21.3mm - 965.20mm

Brand Name:	Kaff Rees
MOQ:	20 Cubic Meters
Price:	Negotiable
Payment Terms:	EXW/FOB/CIF
Supply Ability:	According to products

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou, Jiangsu,China

Certification:

SGS

Name:

Insulation Pipe Support Systems

Feature:

Good Thermal Stability

Insulation Thicknesses:

0.98 In - 9.84 In

Pipe OD:

0.84 In - 38 In

Cold Insulation Material:

High Density Polyisocyanurate

Application:

Liquefied Gas Plant

Packaging Details:

Carton packaging/Wooden case packaging/according to the requirements

Highlight:

cryogenic pipe supports

insulated pipe hangers

Product Description

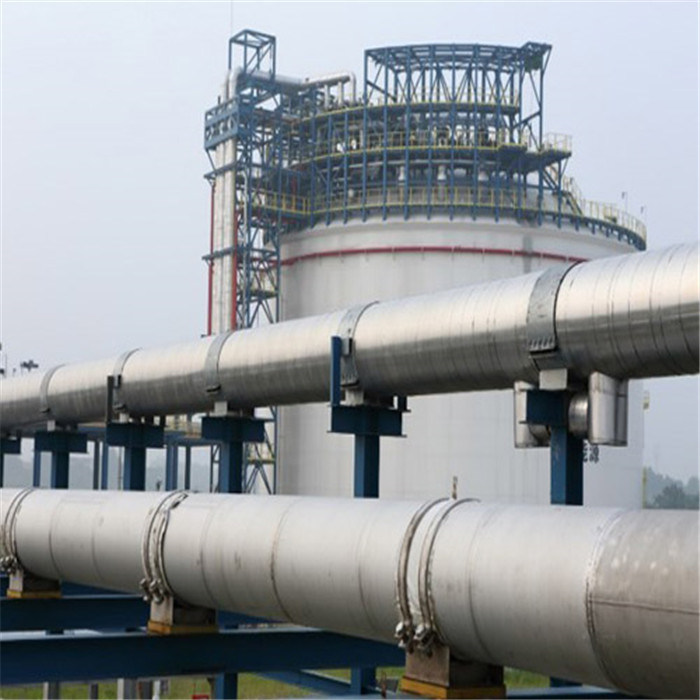

Good Thermal Stability Insulation Pipe Support Systems OD 21.3mm - 965.20mm

High temperature pre-insulated supports utilize structural inserts within the support for load carrying and clamping capabilities. Low-temperature supports use various materials and densities to carry the load of the pipe. Composites of several different insulations such as aerogel blanket, calcium silicate, cellular glass, and closed-cell foam insulation may be utilized for special applications at a wide range of service temperatures.

Insulated pipe support system is mainly used for the support of insulated pipes and equipment. The system can bear all kinds of loads brought by the piping system while maintaining the cold insulation integrity of the pipeline.

Types

Sliding Pipe support system
Guide pipe support system (including guide support for vertical pipe)
Limit pipe support system
Fixing pipe support system Bearer
Supporting bracket system

Compositions

A complete insulated pipe support system consists of insulated pipe supports and cold insulation materials. The primary cold insulation material is high density polyisocyanurate (HDPIR).

The system can be equipped with auxiliary materials as required, including:

Damp proof layer
Metal protective layer
Rubber plate
Metal pipe clamp
Bolt and nut
Butterfly spring
Cold insulation washer
Polytetrafluoroethylene sliding pair
Steam insulation resistance

Application

Primarily used for bearing and heat insulation of pipes and equipment in petrochemical plants, liquefied gas plants, refrigeration warehouses, and central air conditioning systems.

Packing and Storage

All components are assembled in workshop. Finished products are wrapped in anti-ultraviolet polythene film and packed in wooden cases.

HDPIR Material Properties

HDPIR is a foaming polymer combining properties of plastic, rubber and cork. Composed of millions of tiny, uniform sealed cells, it offers low density, low thermal conductivity, and low water absorption with performance superior to timber.

Physical Property	Unit	Technical Indicator
Avg. Density	kg/m3	160	224	320	400	500	550
Thermal Conductivity (20°C)	W/m.K	≤0.032	≤0.040	≤0.050	≤0.058	≤0.075	≤0.085
Compressive Strength (normal temperature)	MPa	≥2.0	≥4.0	≥7.0	≥12.0	≥18.0	≥22.0
Water Absorption	%	≤2.0	≤2.0	≤2.0	≤1.5	≤1.5	≤1.5
Closed Cell Content	%	>95
Linear Expansion Coefficient (-165-20°C)	1/K	≤65 x 10^-6
Application Temperature	°C	-306

Production Flow
