Durable Insulated Pipe Supports High Density Polyisocyanurate Cold Insulation Material
| Place of Origin | Changzhou, Jiangsu,China |
|---|---|
| Brand Name | Kaff Rees |
| Certification | SGS |
| Minimum Order Quantity | 20 Cubic Meters |
| Price | Negotiable |
| Packaging Details | Carton packaging/Wooden case packaging/according to the requirements |
| Delivery Time | Negotiable |
| Payment Terms | EXW/FOB/CIF |
| Supply Ability | According to products |
Product Details
| Name | Insulated Pipe Supports | Feature | High Safety |
|---|---|---|---|
| Insulation Thicknesses | 0.98 In - 9.84 In | Pipe OD | 0.84 In - 38 In |
| Cold Insulation Material | High Density Polyisocyanurate | Application | Liquefied Gas Plant |
| Highlight | cryogenic pipe supports,insulated pipe hangers |
||
Product Description

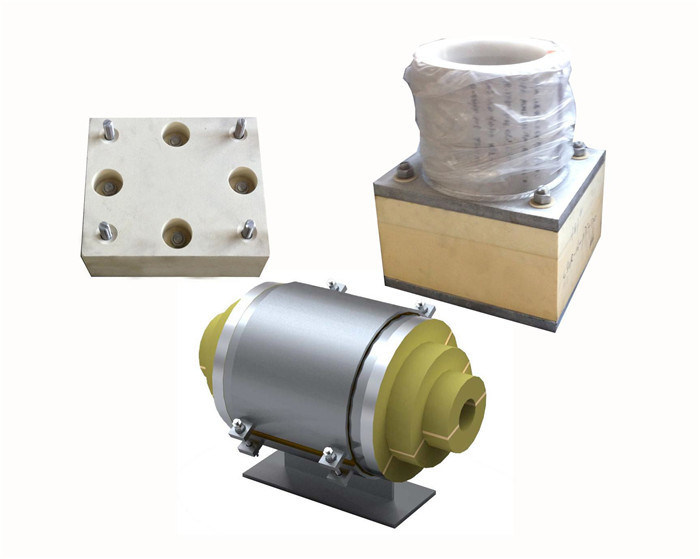

Durable Insulated Pipe Supports with High Density Polyisocyanurate Cold Insulation Material
Pre-insulated pipe supports effectively prevent CUI (Corrosion Under Insulation) and pipeline condensation by completely isolating pipes from external structures. These systems incorporate sealed vapor barriers and line stop mechanisms to eliminate issues at support locations.
Our insulated pipe support systems are engineered to bear all structural loads while maintaining the cold insulation integrity of pipelines.
System Types
- Sliding Pipe Support System
- Guide Pipe Support System (including vertical pipe guides)
- Limit Pipe Support System
- Fixed Pipe Support System Bearer
- Supporting Bracket System
System Components
Each complete insulated pipe support system consists of:
- Insulated pipe supports
- High Density Polyisocyanurate (HDPIR) cold insulation material
Optional auxiliary components include:
- Damp proof layers
- Metal protective layers
- Rubber plates
- Metal pipe clamps
- Fastening hardware (bolts, nuts, butterfly springs)
- Cold insulation washers
- PTFE sliding pairs
- Steam insulation resistance
Applications
Ideal for load-bearing and thermal insulation in:
- Petrochemical plants
- Liquefied gas facilities
- Refrigeration warehouses
- Central air conditioning systems
Packaging & Storage
All components are pre-assembled in our workshop. Finished products are wrapped in UV-resistant polyethylene film and securely packed in wooden cases.
HDPIR Material Properties
High Density Polyisocyanurate (HDPIR) is a cellular foam polymer combining the best properties of plastic, rubber, and cork. Formulated from isocyanate, polyether, and specialized additives, it features millions of uniform sealed cells that deliver exceptional performance characteristics.
| Physical Property | Unit | Technical Indicators |
|---|---|---|
| Avg. Density | kg/m³ | 160 | 224 | 320 | 400 | 500 | 550 |
| Thermal Conductivity (20°C) | W/m·K | ≤0.032 | ≤0.040 | ≤0.050 | ≤0.058 | ≤0.075 | ≤0.085 |
| Compressive Strength (normal temp) | MPa | ≥2.0 | ≥4.0 | ≥7.0 | ≥12.0 | ≥18.0 | ≥22.0 |
| Water Absorption | % | ≤2.0 | ≤2.0 | ≤2.0 | ≤1.5 | ≤1.5 | ≤1.5 |
| Closed Cell Content | % | >95 |
| Linear Expansion Coefficient (-165-20°C) | 1/K | ≤65 × 10⁻⁶ |
| Application Temperature | °C | -306 |
Production Process
