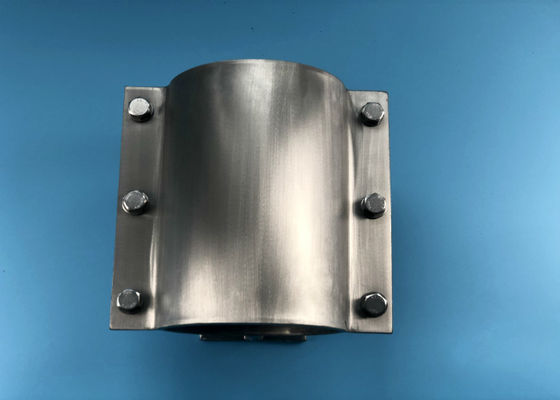

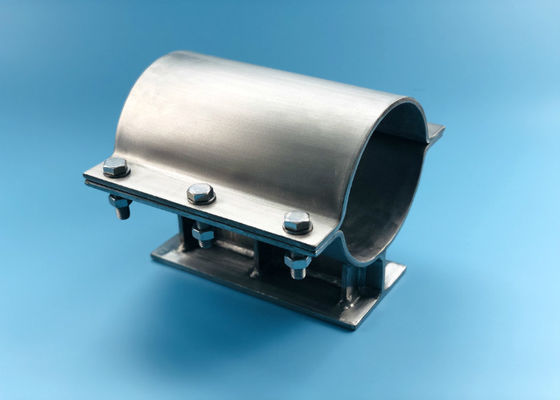

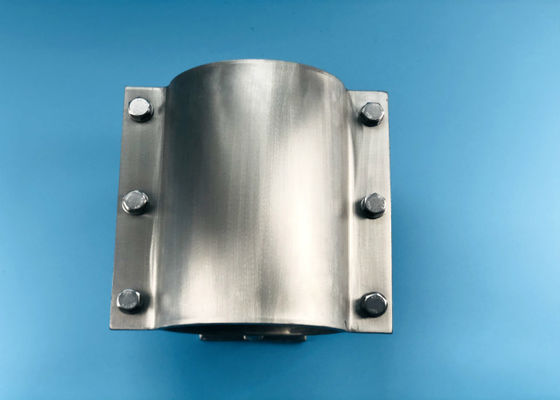

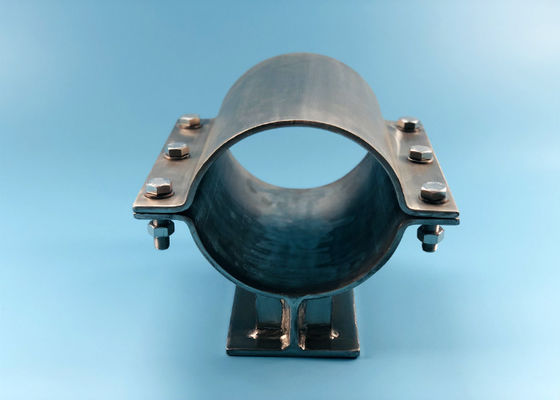

High Compressive Strength Cold Insulation Pipe Supports For Central Air Conditioning System

Brand Name:	Kaff Rees
MOQ:	20 Sets
Price:	Negotiable
Payment Terms:	EXW/FOB/CIF
Supply Ability:	According to products

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou, Jiangsu,China

Certification:

SGS

Name:

Pipe Clamp Of Insulation Pipe Supports

Service Temp.:

-196~+120℃

Tensile Strength:

515-1035MPa

Density(20℃):

7.93 Kg/m3

Fusion Point:

1398-1454 ℃

Specific Heat Capacity（0-100℃）:

0.5 KJ/Kg.k

Thermal Conductivity（100℃）:

16.3 W/m.k

Thermal Conductivity（500℃）:

21.5 W/m.k

Longitudinal Modulus Of Elasticity（20℃）:

193 KN/mm2

Material:

316L/304ss

Packaging Details:

Carton packaging/Wooden case packaging/according to the requirements

Highlight:

cryogenic pipe supports

insulated pipe hangers

Product Description

High Compressive Strength Cold Insulation Pipe Supports For Central Air Conditioning System

Pre-insulated pipe supports offer easier installation compared to non-insulated supports. Unlike weld-on supports that require expensive labor and quality control inspections, our bolted pre-insulated supports feature integrated insulation and cladding for fast, secure installation. The labor cost savings often outweigh the higher material costs.

Types

Sliding Pipe support system
Guide pipe support system (including guide support for vertical pipe)
Limit pipe support system
Fixing pipe support system Bearer
Supporting bracket system

Compositions

Our complete insulated pipe support system consists of insulated pipe supports and high-density polyisocyanurate (HDPIR) cold insulation materials - the most critical component of the system.

The system can be enhanced with optional auxiliary materials:

Damp proof layer
Metal protective layer
Rubber plate
Metal pipe clamp
Bolt and nut
Butterfly spring
Cold insulation washer
Polytetrafluoroethylene sliding pair
Steam insulation resistance

Application

Primarily used for bearing and heat insulation of pipes and equipment in:

Petrochemical plants
Liquefied gas plants
Refrigeration warehouses
Central air conditioning systems

Packing and Storage

All components are pre-assembled in our workshop. Finished products are wrapped in anti-UV polythene film and packed in wooden cases for protection.

HDPIR Material Properties

High-density polyisocyanurate (HDPIR) is a foaming polymer combining properties of plastic, rubber and cork. Formed from isocyanate, polyether and additives through high-speed reaction, it creates millions of uniform sealed cells offering superior insulation properties.

Physical Property	Unit	Technical Indicator
Avg. Density	kg/m3	160 \| 224 \| 320 \| 400 \| 500 \| 550
Thermal Conductivity (20°C)	W/m.K	≤0.032 \| ≤0.040 \| ≤0.050 \| ≤0.058 \| ≤0.075 \| ≤0.085
Compressive Strength (normal temperature)	MPa	≥2.0 \| ≥4.0 \| ≥7.0 \| ≥12.0 \| ≥18.0 \| ≥22.0
Water Absorption	%	≤2.0 \| ≤2.0 \| ≤2.0 \| ≤1.5 \| ≤1.5 \| ≤1.5
Closed Cell Content	%	>95
Linear Expansion Coefficient (-165-20°C)	1/K	≤65 x 10^-6
Application Temperature	°C	-306
