High Performance Insulated Pipe Supports , Calcium Silicate Pipe Shields

Brand Name:	Kaff Rees
MOQ:	20 Cubic Meters
Price:	Negotiable
Payment Terms:	EXW/FOB/CIF
Supply Ability:	According to products

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou, Jiangsu,China

Certification:

SGS

Name:

Calcium Silicate Pipe Shields

Feature:

High Performance

Application:

Petrochemical Plant

Cold Insulation Material:

HDPIR

Insulation Thicknesses:

25mm - 250mm

Packing:

Wooden Case

Packaging Details:

Carton packaging/Wooden case packaging/according to the requirements

Highlight:

cryogenic pipe supports

insulated pipe hangers

Product Description

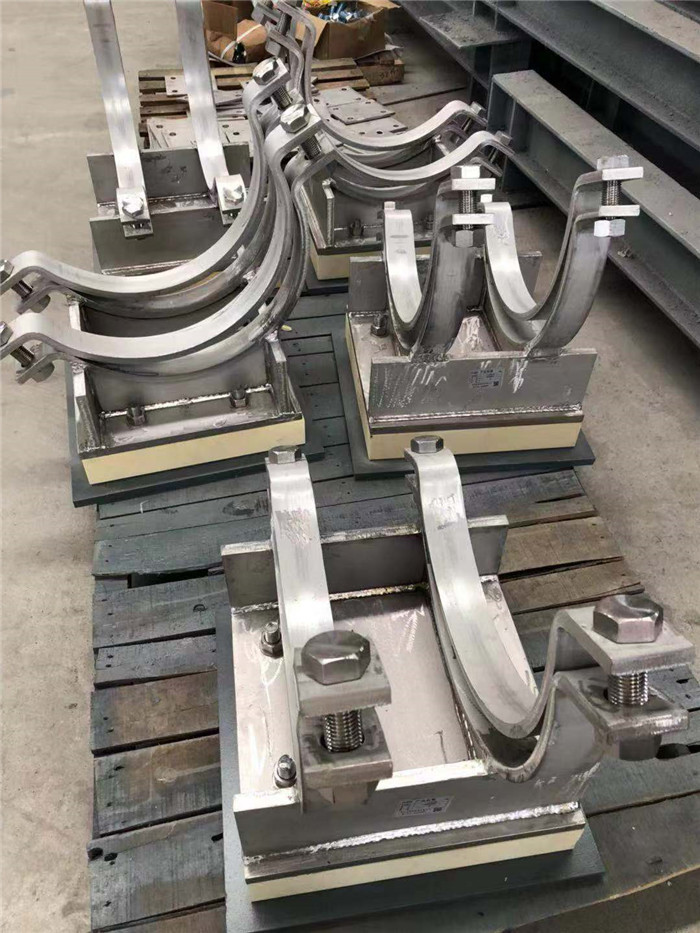

High Performance Insulated Pipe Supports, Calcium Silicate Pipe Shields

Insulated Pipe Support System is designed for supporting insulated pipes and equipment. The complete system consists of insulated pipe supports and cold insulation materials, with high-density polyisocyanurate (HDPIR) as the most critical component.

Available System Types

Sliding Pipe support system
Guide pipe support system (including guide support for vertical pipe)
Limit/fixing pipe support system
Bearer supporting bracket system

Sliding System Components

Pipe support base
Rubber plate
Metal protective layer
Vapor barrier
HDPIR inner layer
HDPIR outer layer
Metal pipe clamp
Bolts
Disc spring
Nut

Kaff Rees provides a comprehensive range of insulated cryogenic pipe supports for low-temperature pipe systems. These supports feature mechanical clamping via disc spring bolting, with steel cradles housing HD-PIR insulation, hot-dip galvanized as standard.

Our cryogenic pipe supports meet international technical standards, accommodating pipe diameters from OD 21.3 mm (0.84 in) to OD 965.20 mm (38 in) with insulation thicknesses ranging from 25 mm (0.98 in) to 250 mm (9.84 in). Designed for temperatures down to -196°C, they are constructed from materials suitable for specified loads and temperature requirements.

HDPIR Material Properties

HDPIR is a foaming polymer combining characteristics of plastic, rubber, and cork. Composed of isocyanate, polyether, and additives, it forms a cellular structure with millions of uniform sealed cells, offering superior low density, thermal conductivity, and water absorption compared to timber.

Physical Property	Unit	Technical Indicator
Avg. Density	kg/m3	160 \| 224 \| 320 \| 400 \| 500 \| 550
Thermal Conductivity (20°C)	W/m.K	≤0.032 \| ≤0.040 \| ≤0.050 \| ≤0.058 \| ≤0.075 \| ≤0.085
Compressive Strength (normal temperature)	MPa	≥2.0 \| ≥4.0 \| ≥7.0 \| ≥12.0 \| ≥18.0 \| ≥22.0
Water Absorption	%	≤2.0 \| ≤2.0 \| ≤2.0 \| ≤1.5 \| ≤1.5 \| ≤1.5
Closed Cell Content	%	>95
Linear Expansion Coefficient (-165-20°C)	1/K	≤65 x 10^-6
Application Temperature	°C	-306

Production Process

Applications

These products are essential for industrial processes involving production, transport, and distribution of liquefied gases including propane and butane (LPG), methane (LNG), ethylene, nitrogen, and ammonia.

Packing and Storage

All components are pre-assembled in our workshop. Finished products are wrapped in anti-UV polythene film and packed in wooden cases for protection.

Installation Guidelines

Disassemble the product, position all components correctly, then reassemble
Follow Kaff Rees' installation instructions precisely
