Low Water Absorption Sliding Pipe Support Systems High Compressive Strength

Brand Name:	Kaff Rees
MOQ:	20 Cubic Meters
Price:	Negotiable
Payment Terms:	EXW/FOB/CIF
Supply Ability:	According to products

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou, Jiangsu,China

Certification:

SGS

Name:

Sliding Pipe Support

Feature:

High Compressive Strength

Application:

Petrochemical Plant

Cold Insulation Material:

HDPIR

Insulation Thicknesses:

25mm - 250mm

Pipe OD:

21.3 Mm - 965.20 Mm

Packaging Details:

Carton packaging/Wooden case packaging/according to the requirements

Highlight:

pipe sliding support

cold insulation pipe supports

Product Description

Low Water Absorption Sliding Pipe Support Systems with High Compressive Strength

Sliding pipe supports are engineered for diverse applications including above-ground piping systems in buildings, tunnels, and trenches. These supports are designed to accommodate high-temperature, cold-temperature, and dual-temperature applications. High-temperature pre-insulated supports incorporate structural inserts for enhanced load carrying and clamping capabilities, while low-temperature variants utilize specialized materials and densities to support pipe weight effectively.

Kaff Rees Insulated Pipe Support System Variants

Sliding Pipe Support System
Guide Pipe Support System (including vertical pipe guide supports)
Limit/Fixed Pipe Support System
Bearer Supporting Bracket System

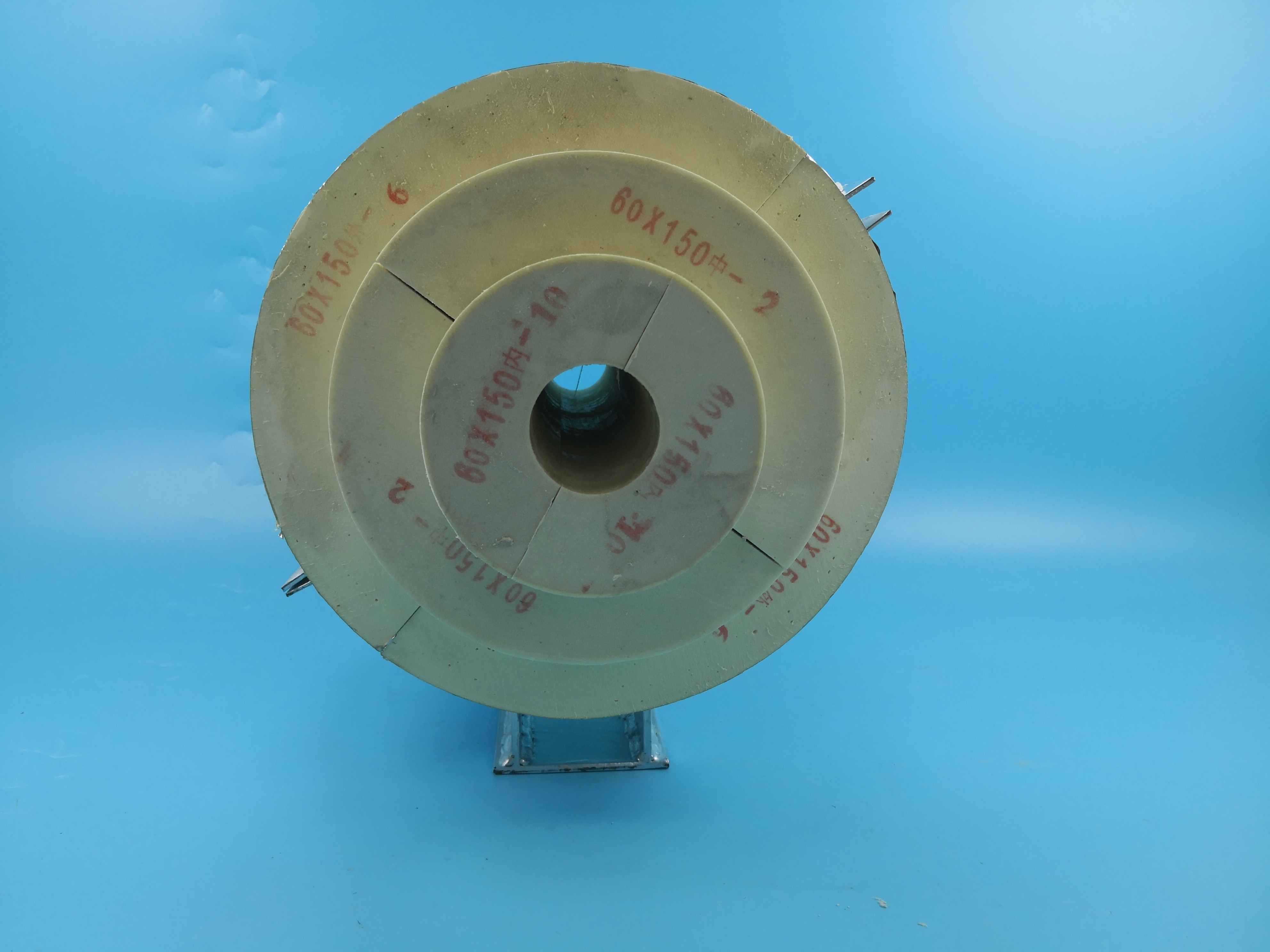

Structural Components of Insulated Pipe Support System (Sliding Type)

① Pipe Support Base - Foundation component

② Rubber Plate - Vibration dampening layer

③ Metal Protective Layer - Corrosion-resistant shield

④ Vapor Barrier - Moisture protection

⑤ HDPIR Inner Layer - Primary insulation

⑥ HDPIR Outer Layer - Secondary insulation

⑦ Metal Pipe Clamp - Secure fastening

⑧ Bolts - Structural connection

⑨ Disc Spring - Tension maintenance

⑩ Nut - Fastening completion

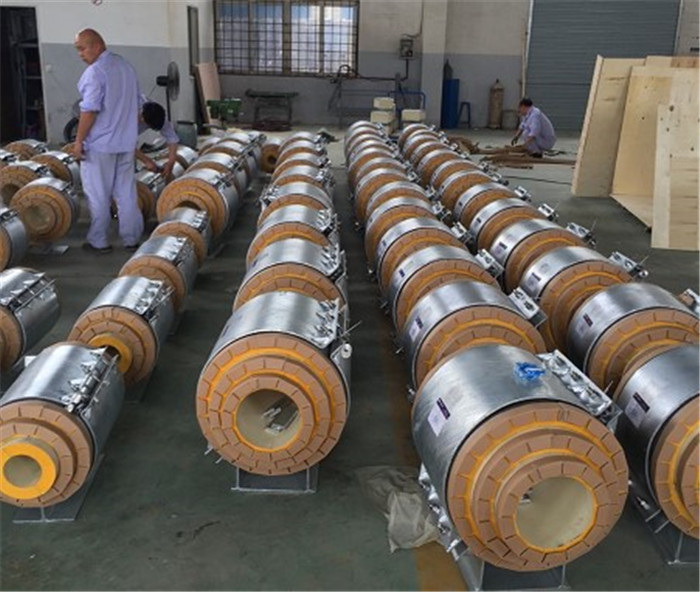

Kaff Rees provides a comprehensive range of insulated cryogenic pipe supports for all low-temperature piping systems. These supports feature mechanical clamping via disc spring bolting, with steel pipe support cradles housing HD-PIR insulation. Standard hot-dip galvanization ensures durability.

Our cryogenic pipe supports meet international technical standards, accommodating pipe diameters from OD 21.3 mm (0.84 in) to OD 965.20 mm (38 in) with insulation thicknesses ranging from 25 mm (0.98 in) to 250 mm (9.84 in). Engineered for extreme conditions, they withstand medium temperatures down to -196°C.

HDPIR Insulation Material

HDPIR is a high-performance foaming polymer combining characteristics of plastic, rubber, and cork. Formulated from isocyanate, polyether, foaming agents, catalysts, and flame retardants, it undergoes high-speed stirring to create millions of uniform sealed cells. This cellular structure delivers superior thermal performance with low density, minimal thermal conductivity, and exceptionally low water absorption, outperforming traditional timber materials.

HDPIR Physical Properties

Physical Property	Unit	Technical Indicator
Avg. Density	kg/m3	160 \| 224 \| 320 \| 400 \| 500 \| 550
Thermal Conductivity (20°C)	W/m.K	≤0.032 \| ≤0.040 \| ≤0.050 \| ≤0.058 \| ≤0.075 \| ≤0.085
Compressive Strength (normal temperature)	MPa	≥2.0 \| ≥4.0 \| ≥7.0 \| ≥12.0 \| ≥18.0 \| ≥22.0
Water Absorption	%	≤2.0 \| ≤2.0 \| ≤2.0 \| ≤1.5 \| ≤1.5 \| ≤1.5
Closed Cell Content	%	>95
Linear Expansion Coefficient (-165-20℃)	1/K	≤65 x 10^-6
Application Temperature	℃	-306

Industrial Applications

These specialized pipe support systems are essential for industrial processes involving production, transportation, and distribution of liquefied gases including:

Propane and butane (LPG)
Methane (LNG)
Ethylene
Nitrogen
Ammonia
